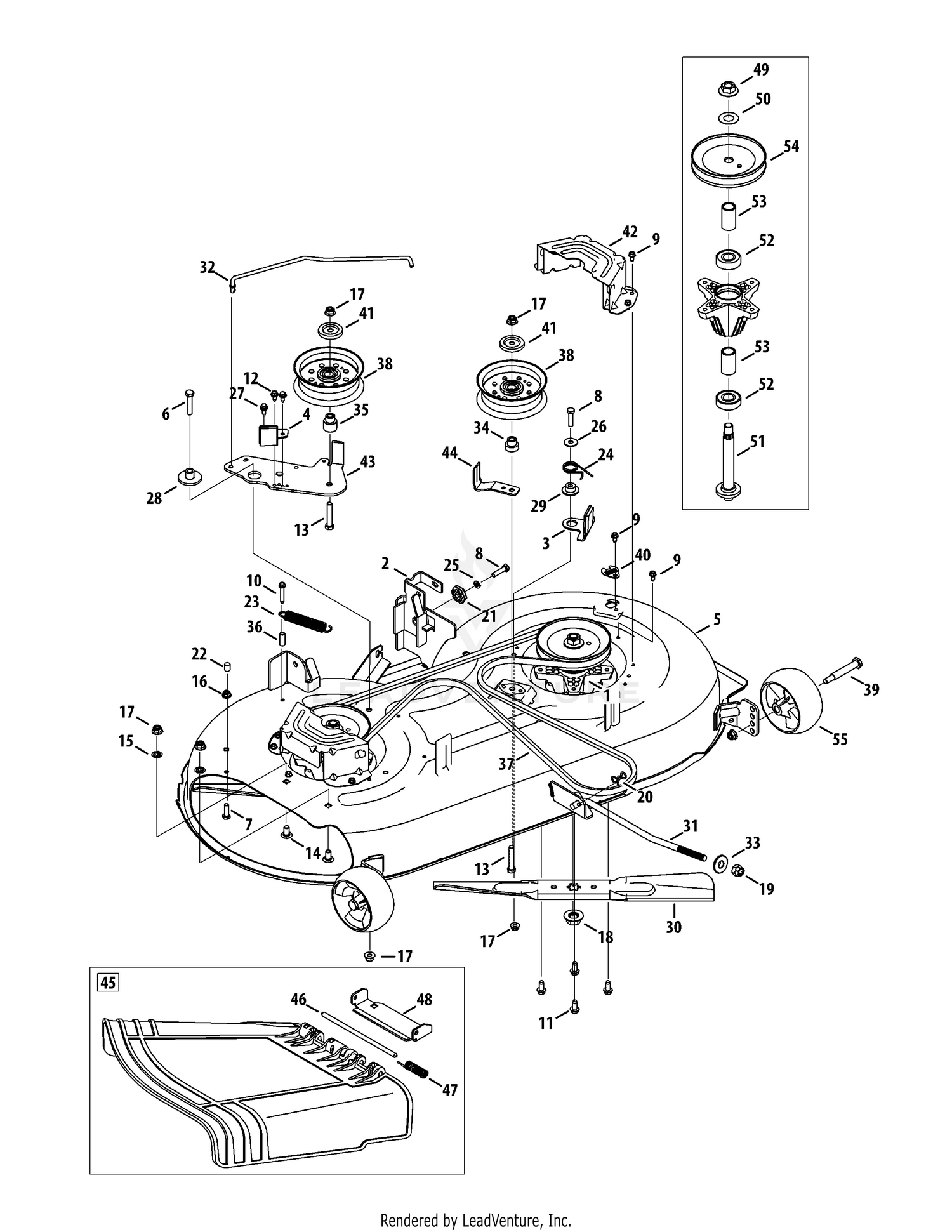

| Ref | Part Number | Description |
|---|
| 1 |
918-06991 |
Spindle Assembly, Pulley 6.2 DIA Price: $90.98 |
| 2 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-0637. Price: |
| 3 |
753-09904A |
DECK BRAKE ASSEMBLY KIT This part replaces 683-05095. Price: $93.12 |
| 4 |
983-05182B |
DECK BRAKE ASSEMBLY (RH) This part replaces 683-05102. Price: $87.42 |
| 6 |
710-0347 |
Hex Head Screw, 3/8-16 x 1.75 Price: $4.39 |
| 7 |
710-0376 |
Hex Head Screw, 5/16-18 x 1.00 Price: $3.66 |
| 8 |
710-0528 |
Hex Head Screw, 5/16-18 x 1.25 Price: $3.90 |
| 9 |
710-0599 |
Tap Screw, 1/4-20 x 0.500 Price: $3.86 |
| 10 |
710-0778 |
Tap Screw, 1/4-20 x 1.500 Price: $3.90 |
| 11 |
710-1260A |
Tap Screw, 5/16-18 x 0.750 Price: $3.34 |
| 12 |
710-1652 |
Tap Screw, 1/4-20 x .625 Price: $3.86 |
| 13 |
710-3096 |
Hex Head Screw, 3/8-16 x 2.00 Price: $7.03 |
| 14 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 15 |
712-0229 |
Push Nut, 3/8 Price: $3.14 |
| 16 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 17 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 18 |
712-0417A |
HEX NUT Price: $6.50 |
| 19 |
712-04243 |
Flange Lock Nut, 1/2-13 Price: $3.52 |
| 20 |
714-04043 |
Bow-Tie Cotter Pin, 91 Price: $4.24 |
| 21 |
917-04074 |
Deck Adjustment Gear Price: $11.45 |
| 22 |
720-05010 |
Vinyl Cap, .290 X .500 Price: $3.70 |
| 23 |
732-04629 |
Extension Hook Spring, .750 X 4.77 Price: $25.15 |
| 24 |
732-05151A |
Torsion Spring, LH This part replaces 732-05151. Price: $3.70 |
| 25 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 26 |
736-3078 |
Flat Washer,.344 x 1.00 x .063 Price: $3.95 |
| 27 |
738-04184A |
Shoulder Screw, .368 x .113, 1/4-20 Price: $5.99 |
| 28 |
738-05064 |
Double Shoulder Spacer, .854 x .190 Price: $19.73 |
| 29 |
738-05088 |
Double Shoulder Spacer, .750 x .145 Price: $3.86 |
| 31 |
747-05141B |
DECK FRONT LIFT ROD This part replaces 747-05141A. Price: $19.44 |
| 32 |
747-06232 |
Deck Brake Rod Not Available Price: |
| 33 |
748-04069A |
DECK LIFT PIVOT CUP This part replaces 748-04069. Price: $4.93 |
| 34 |
748-05029A |
Shoulder Spacer Idler Price: $4.19 |
| 35 |
748-05037B |
SHOULDER SPACER This part replaces 748-05037. Price: $4.64 |
| 36 |
750-0566A |
Spacer, .260 x .372 x 1.030 LG Price: $9.17 |
| 37 |
954-04060C |
V-Belt Price: $46.63 |
| 38 |
756-05034A |
IDLER PULLEY 4.50" DIA This part replaces 756-05034. Price: $40.14 |
| 39 |
938-3056 |
Shoulder Bolt, .496 x 2.50, 3/8-16 Price: $8.53 |
| 41 |
783-08389 |
Pulley Cap Price: $5.23 |
| 42 |
783-08510D-0637 |
DECK BELT COVER (POWDER BLACK) This part replaces 783-08510-0637. Price: $11.70 |
| 43 |
783-08654C |
DECK IDLER BRACKET This part replaces 783-08654. Price: $62.71 |
| 44 |
783-08690A-0637 |
BELT KEEPER (POWDER BLACK) This part replaces 783-08540-0637. Price: $11.37 |
| 45 |
631-05191A |
Discharge Chute Assembly This part replaces 631-05191. Price: $49.80 |
| 46 |
711-04847B |
Hinge Pin Price: $7.63 |
| 47 |
732-04372 |
Torsioin Spring, .44 I.D. X 2.0 Price: $8.93 |
| 48 |
783-06074A |
CHUTE BRACKET Not Available Price: |
| 49 |
712-0417A |
HEX NUT Price: $6.50 |
| 50 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 51 |
738-1186A |
Spindle Shaft, 6.11 Lg. Price: $45.83 |
| 52 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 53 |
750-04936 |
Spacer, .792 x 1.060 x 1.860 Lg. Price: $5.94 |
| 54 |
756-05031 |
Deck Pulley, 5.4 Dia. Price: $20.46 |
