| Ref | Part Number | Description |
|---|
| 1 |
HG-73089 |
MAIN HOUSING KIT (LH) Price: $182.04 |
| 2 |
HG-73378 |
SIDE COVER KIT (LH) Price: $99.18 |
| 7 |
HG-53246 |
SCREW-WASHER HEAD Price: $2.95 |
| 11 |
HG-54730 |
VENT PLUG Price: $5.62 |
| 13 |
HG-50928 |
SEALANT-HOUSING Price: $91.12 |
| 14 |
N/A |
OIL, 20W50 |
| 23 |
HG-52114P |
OIL FILTER Price: $30.27 |
| 30 |
HG-55232 |
SEAL-LIP .375 X .75 X .25 Price: $3.99 |
| 31 |
HG-51628 |
RETAINING RING Price: $3.63 |
| 32 |
HG-52136 |
BYPASS RODS Price: $8.77 |
| 33 |
HG-51627 |
RETAINING RING Price: $3.63 |
| 34 |
HG-51910 |
ARM-BYPASS Price: $13.32 |
| 35 |
HG-51630 |
RETAINING RING Price: $3.38 |
| 40 |
HG-51048 |
SWASHPLATE-TRUNNION Price: $77.60 |
| 41 |
HG-51140 |
LIP SEAL Price: $8.66 |
| 45 |
736-0371 |
FLAT WASHER Price: $3.94 |
| 55 |
HG-50951 |
WASHER 1.23X1.56X Price: $3.76 |
| 56 |
HG-55486 |
LIP SEAL Price: $5.90 |
| 57 |
HG-50329 |
RETAINING RING Price: $9.70 |
| 60 |
HG-51462P |
THRUST BEARING Price: $29.02 |
| 64 |
HG-72882 |
CYLINDER BLOCK ASSEMBLY Price: $115.50 |
| 65 |
HG-50551P |
THRUST BEARING Price: $26.00 |
| 69 |
HG-70723 |
BLOCK KIT-7 PISTON Price: $200.36 |
| 70 |
HG-44371 |
FLAT WASHER Price: $13.59 |
| 71 |
HG-44145 |
RETAINING RING Price: $3.68 |
| 72 |
HG-52341 |
GEAR-14T Price: $45.06 |
| 73 |
HG-54325 |
MOTOR SHAFT Price: $82.62 |
| 74 |
HG-51069 |
MOTOR SHAFT WASHER Price: $3.76 |
| 80 |
HG-50132 |
WASHER Price: $3.90 |
| 81 |
HG-52110 |
GEAR-45T JACK SHAF Price: $21.16 |
| 82 |
HG-52586 |
GEAR-11 T Price: $32.53 |
| 83 |
HG-51083 |
PIN-JACKSHAFT Price: $29.08 |
| 90 |
HG-50859 |
RETAINING RING Price: $5.97 |
| 91 |
HG-52108 |
GEAR-54 T Price: $64.14 |
| 92 |
HG-53336 |
SPACER .75X1.32X.257 Price: $2.93 |
| 93 |
HG-72749 |
BALL BEARING Price: $26.49 |
| 95 |
HG-53656 |
BALL BEARING Price: $14.73 |
| 96 |
HG-53699 |
OIL SEAL Price: $7.57 |
| 102 |
HG-44094 |
ARM-BRAKE Price: $8.46 |
| 106 |
HG-71854 |
FILTER GUARD KIT Price: $18.44 |
| 140 |
HG-54315 |
SPACER .32 x 1.005 x .179 Price: $2.30 |
| 141 |
HG-51945 |
ARM-NEUTRAL (RH) Price: $12.25 |
| 142 |
HG-71341 |
SCREWS KIT-RTN Price: $7.94 |
| 147 |
HG-51605 |
EXTENSION SPRING Price: $19.24 |
| 156 |
HG-53088 |
COVER-NUT Price: $5.15 |
| 160 |
HG-70719 |
OIL SEAL Price: $13.85 |
| 164 |
HG-53514 |
SPACER Price: $3.85 |
| 170 |
917-0678 |
BRAKE PUCK Price: $6.87 |
| 171 |
HG-53989 |
ROTOR-BRAKE Price: $20.97 |
| 172 |
917-0682 |
PUCK PLATE Price: $8.68 |
| 176 |
HG-51146 |
BOLT-SPECIAL FLANG Price: $3.07 |
| 177 |
741-0343 |
ACTUATING PIN Price: $8.93 |
| 178 |
HG-50919 |
BRAKE SPRING Price: $3.36 |
| 181 |
912-0273 |
HEX NUT Price: $4.02 |
| 182 |
914-0507 |
COTTER PIN-3/32 DIA x .75 Price: $3.93 |
| 183 |
HG-55934 |
SPACER Price: $0.61 |
| 184 |
736-0371 |
FLAT WASHER Price: $3.94 |
| 185 |
HG-55964 |
EXTENSION SPRING (LH) Price: $3.88 |
| 186 |
HG-53496 |
TUBE-AXLE 2.03 Price: $3.78 |
| 193 |
HG-54974 |
PLUG 3/4-16 Price: $4.88 |
| 194 |
HG-55789 |
BREATHER FITTING 9/16-18 Price: $32.54 |
| 195 |
HG-55072 |
EXPANSION TANK (LH) Price: $43.27 |
| 200 |
HG-73107 |
SEAL KIT Price: $61.94 |
| 201 |
HG-71563 |
CENTER SECTION KIT (LH) Price: $273.23 |
| 202 |
HG-71436 |
KIT-CHARGE RELIEF Price: $8.24 |
| 203 |
HG-72274 |
CHARGE KIT Price: $100.27 |
| 207 |
HG-72979 |
FAN & PULLEY KIT Price: $81.13 |
| 209 |
HG-72320 |
PULLER KIT-HUB Price: $189.91 |
| 210 |
HG-73047 |
INPUT SHAFT KIT Price: $72.47 |
| 211 |
HG-71588 |
RETURN KIT-NEUTRAL (RH) ZT2800 RZT Price: $42.78 |
| 212 |
HG-71570 |
SHAFT KIT-AXLE Price: $156.84 |
| 214 |
HG-70633 |
BRAKE YOKE ASSEMBLY Price: $17.73 |
| 618P10019 |

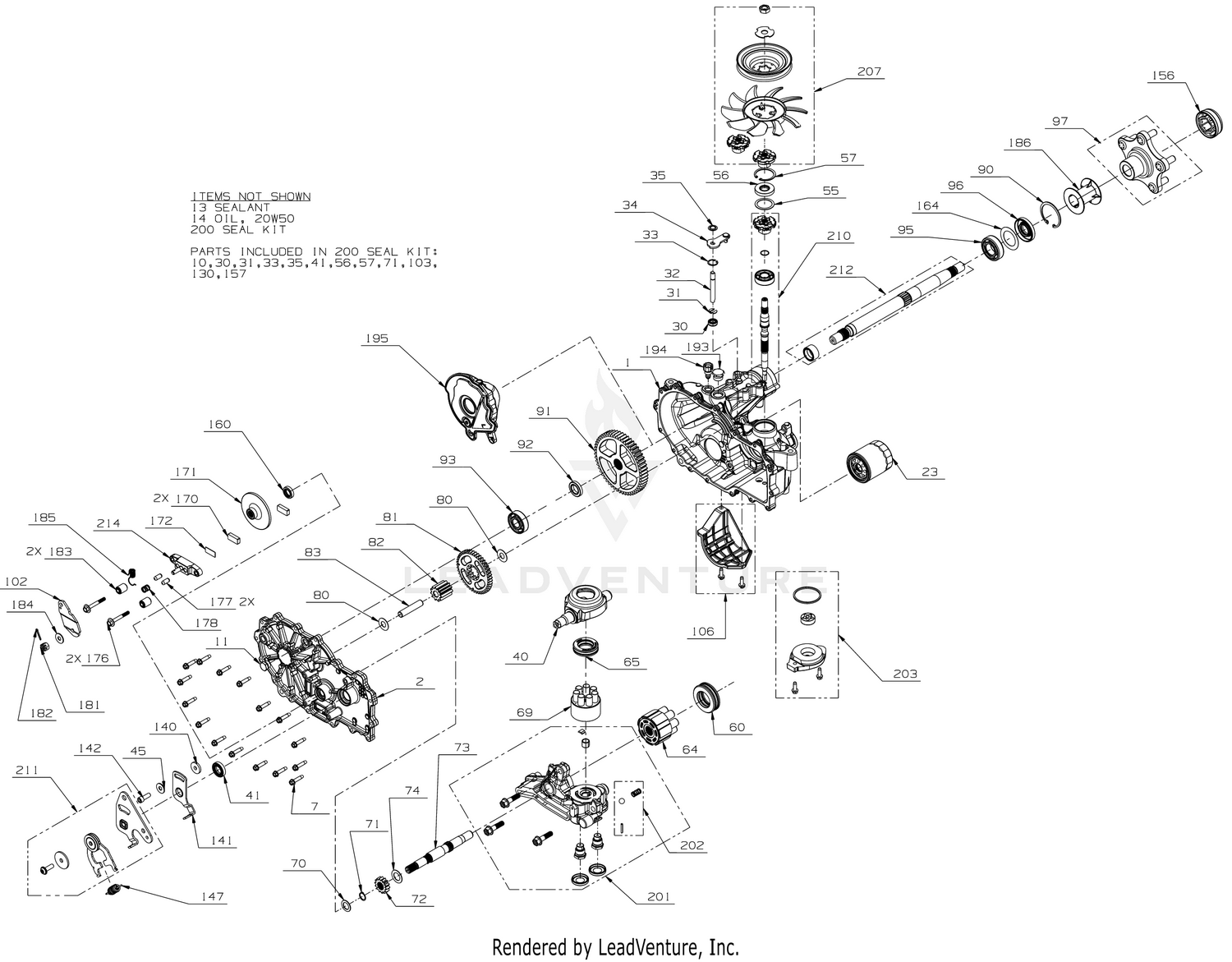

HYDRO |
TRANSMISSION (LH) Price: $1,561.10 618P10019 |
