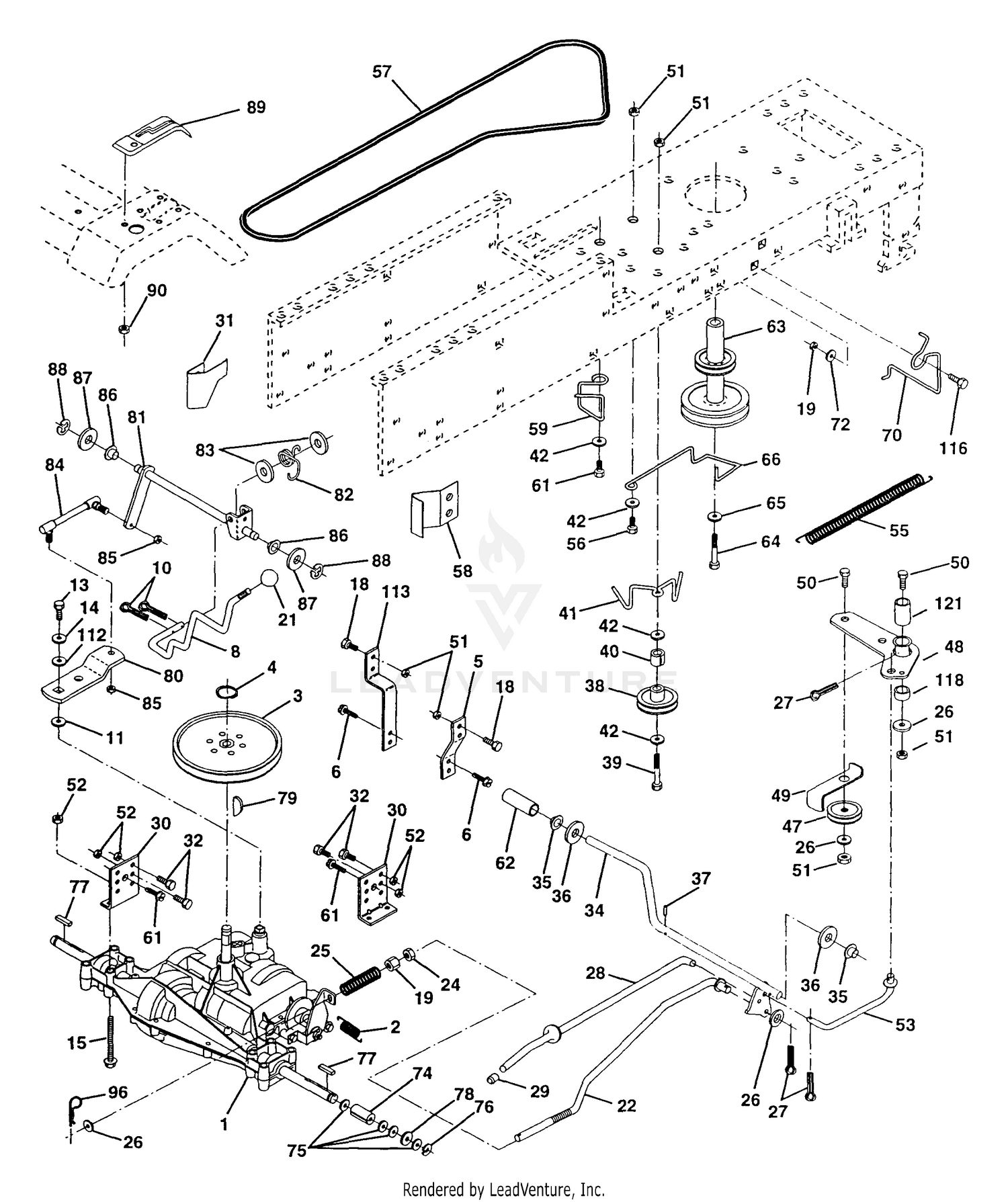

| Ref | Part Number | Description |
|---|
| 2 |
146682 |
Spring Return Brake T/a Zinc Price: Call Us |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 3 |
123666X |
Pulley Transaxle 18" tires Price: Call Us |
| 4 |
12000028 |
Ring Retainer # 5100-62 (AYP part number) Price: Call Us |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
121520X |
Strap Torque 30 Degrees Price: Call Us |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 6 |
17490512 |
Screw Thdrol 5/16-18 X 3/4 TYT Price: Call Us |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
141003 |
Rod Shifter Price: Call Us |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 9 |
112-1725 |
SPRING-COMPRESSION Price: $14.14 |
| 10 |
76020416 |
Pin Cotter 1/8 X 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 13 |
74550412 |
Bolt 1/4-28 Unf Gr 8 W/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical 1/4 Price: Call Us |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
74490544 |
Bolt Hex 5/16-18 Gr. 5 Price: Call Us |
| 17 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 18 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 18 |
74780616 |
Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5 Price: Call Us |
| 19 |
112-1703 |
FRAME Price: $330.04 |
| 19 |
73800600 |
Nut Lock 3/8-16 Unc Price: Call Us |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 21 |
106933X |
Knob Price: Call Us |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 22 |
130-8094 |
WASHER-PLAIN Price: $5.25 |
| 22 |
130804 |
Rod Brake Blk Zinc 26 840 Price: Call Us |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 24 |
131-4712 |
CARRIER FRAME ASM Price: $461.97 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 26 |
19131316 |
Washer 13/32 X 13/16 X 16 Ga Price: Call Us |
| 26 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 27 |
76020412 |
Pin Cotter 1/8 X 3/4 Cad Price: Call Us |
| 28 |
145204 |
Rod Brake Parking LT/YT Price: Call Us |
| 29 |
71673 |
Cap Brake Parking Price: Call Us |
| 30 |
130807 |
Bracket Mtg Transaxle Price: Call Us |
| 31 |
127275X |
Keeper Belt LH LT 14 Ga Price: Call Us |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 unc X 3/4 Price: Call Us |
| 34 |
155071 |
Shaft Asm Pedal Foot Price: Call Us |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 36 |
19211616 |
Washer 21/32 X 1 X 16 Ga Price: Call Us |
| 37 |
1572H |
Pin Roll 3/16 X 1" (AYP part number) Price: Call Us |
| 38 |
123674 |
Pulley Idler Flat (AYP part number) Price: Call Us |
| 39 |
74760644 |
Bolt Fin Hex 3/8-16 unc X 2-3/4 Price: Call Us |
| 40 |
4470J |
Spacer Split 395 X 59 Bzp Price: Call Us |
| 41 |
154777 |
Keeper Belt Retainer Idler Foolproof Price: Call Us |
| 42 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 47 |
127783 |
Pulley Idler V Groove Plastic (AYP part number) Price: Call Us |
| 48 |
154604 |
Bellcrank Asm Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 50 |
74760624 |
Bolt Hex Hd 3/8-16 unc X 1-1/2 (AYP part number) Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 Unc Price: Call Us |
| 53 |
105710X |
Link Clutch Price: Call Us |
| 55 |
532105709 |
X Spring Return Clutch 6 75 (AYP part number) Price: $7.99 |
| 56 |
74760620 |
Bolt Fin Hx 3/8-16 X 1/4 Price: Call Us |
| 57 |
130801 |
V-Belt Ground Drive 95 25 Price: Call Us |
| 58 |
127274X |
Keeper Belt RH LT Pnt/zinc 16g Price: Call Us |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $14.99 |
| 61 |
17490612 |
Screw Thdrol 3/8-16 x 3/4 Ty-tt Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
140186 |
Engine Pulley LT/YT Price: Call Us |
| 64 |
71170764 |
Bolt Hex (AYP part number) Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Foolproof Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 72 |
19132012 |
Washer 13/32 X 1-1/4 X 12 Ga Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square 2 0 X 1845/1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 79 |
2228M |
Key Woodruff #9 3/16 x 3/4 (AYP part number) Price: Call Us |
| 80 |
131486 |
Arm Shift Price: Call Us |
| 81 |
136932 |
Shaft Asm Cross 18"t Price: Call Us |
| 82 |
123782X |
Spring Torsion T/a Price: Call Us |
| 83 |
19171216 |
Washer 17/32 X 3/4 X 16 Ga Price: Call Us |
| 84 |
123793X |
Rod Shift Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4-28 FNTHD Price: Call Us |
| 86 |
71208 |
Bushing Rod Strg 629/632 Id Price: Call Us |
| 87 |
19212016 |
Washer 21/32 X 1-1/4 X 16 Ga Price: Call Us |
| 88 |
12000008 |
Ring Klip #5304-62 Price: Call Us |
| 89 |
532139964 |
Console Shift STLT (AYP part number) Price: $13.39 |
| 90 |
124346X |
Nut Self-thd Wsh-hd 1/4 Zinc Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque LT Price: Call Us |
| 116 |
72110610 |
Bolt Rdhd Sq Neck 3/8-16 x 1.25 (AYP part number) Price: Call Us |
| 118 |
154774 |
Spacer Bellcrank Price: Call Us |
