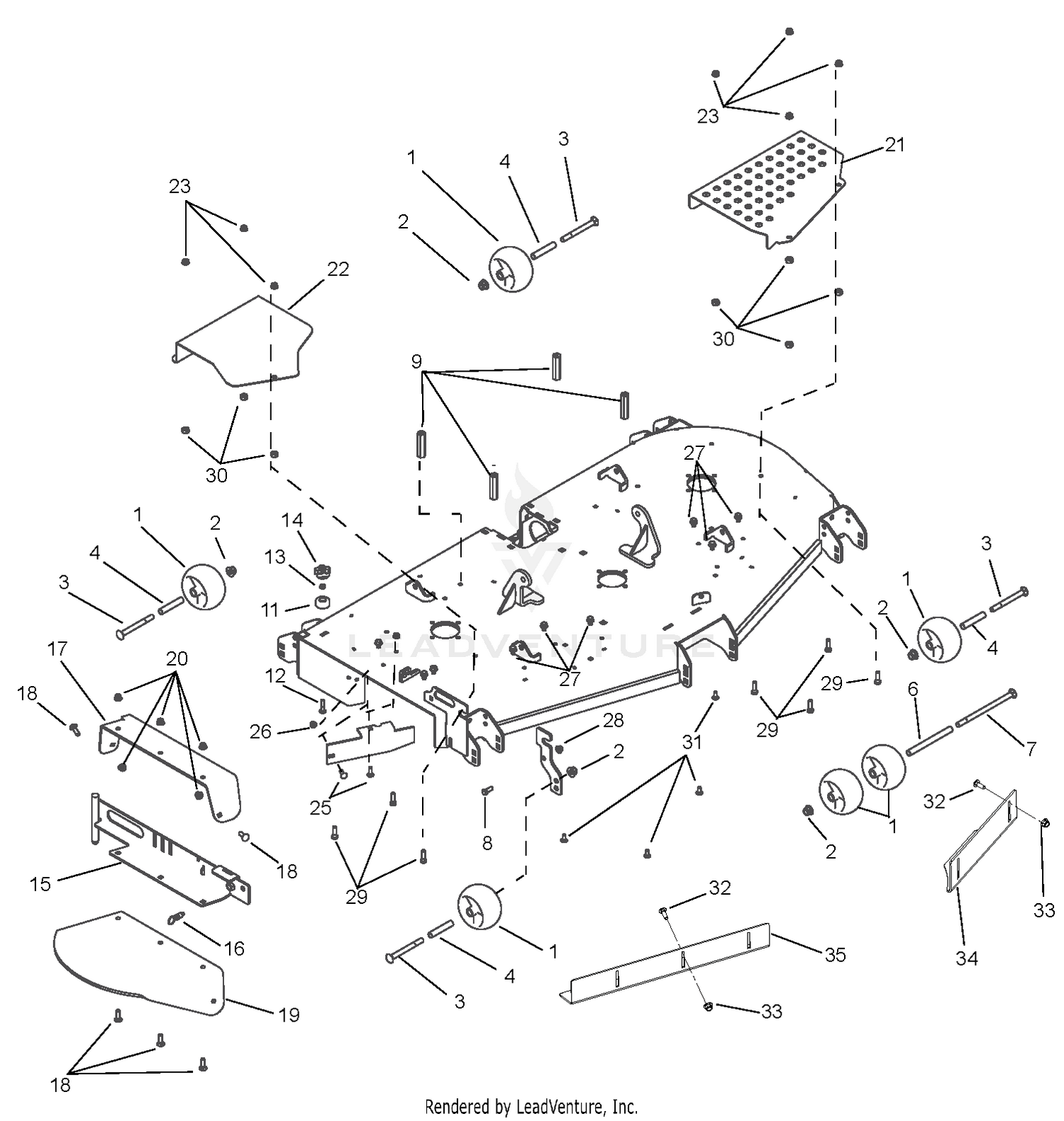

| Ref | Part Number | Description |
|---|
| 1 |
03905900 |
ANTI-SCALP WHEEL - 5X3 CTR Price: $11.95 |
| 2 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 3 |
06200511 |
BOLT, RHNS .50-13X4.50 G5 ZCC NS This part replaces 06225900. Price: $3.95 |
| 4 |
00473700 |
SPACER, .510X.625X3.35 Price: $16.95 |
| 5 |
00474753 |
CHUTE STORAGE BRACKET - RED Price: $22.45 |
| 6 |
00473800 |
SPACER, .510X.625X6.50 Price: $19.95 |
| 7 |
06200321 |
BLT, RHSN .50-13X8.50 G5 ZCC This part replaces 06206400. Price: $6.95 |
| 8 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 9 |
07000027 |
NUT, COUPLING .31-18 X 3.00 Price: $22.95 |
| 11 |
07500009 |
BUMPER,RECESSED1.50X.63 W/.31 Price: $5.45 |
| 12 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC This part replaces 06212100. Price: $1.45 |
| 13 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45 |
| 14 |
07534800 |
KNOB-CLAMPING, .312-18 NYLOC Price: $3.45 |
| 15 |
04727953 |
WLDMT, DISCHARGE CHUTE 52"-60" This part replaces 00980553. Price: $101.95 |
| 16 |
07000037 |
PULL PIN,.50-13THDX.310 PLNGR Price: $9.95 |
| 17 |
04551553 |
RUBBER DISCH CHUTE SUPPORT-RED Price: $81.45 |
| 18 |
06200415 |
BLT, RHSN .38-16X1.25 G5 ZCC This part replaces 06224100. Price: $2.45 |
| 19 |
04541600 |
LEG SUPPORT REAR Price: Call Us |
| 20 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 21 |
04248051 |
GUARD,LH,60" OUTFRONT - BLK Price: $58.30 |
| 22 |
03982251 |
GUARD,RH DECK BELT,60-66 Price: $54.45 |
| 23 |
07000018 |
BOLT, SEMS .31-18 X .62 Price: $3.45 |
| 24 |
06300002 |
WSHR-LOCK INT .375 Price: $1.95 |
| 25 |
06200231 |
BLT-RHSN .31-18X1.00 G5 ZCC This part replaces 06216100. Price: $1.45 |
| 26 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 27 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 28 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 29 |
05901724 |
BLT- HEX .38-16X1.25 G5 ZCC This part replaces 05958000. Price: $1.45 |
