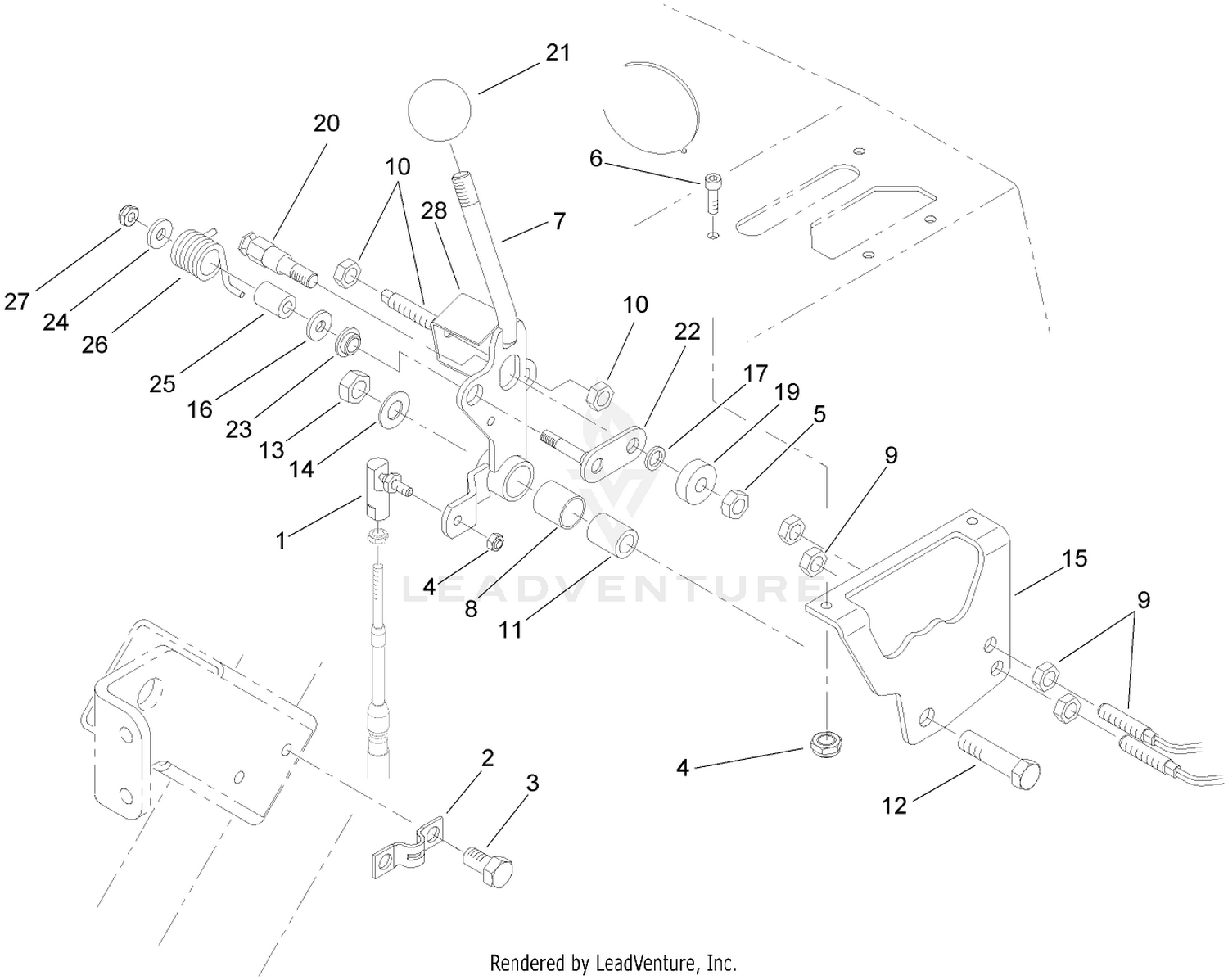

Functional Control Lever Assembly

Functional Control Lever Assembly

Parts (26)

RefPart NumberDescription
1 2411-38 JOINT-BALL Price: $21.96
2 93-2279 CLAMP-CABLE Price: $7.12
3 32104-32 SCREW-HWH Price: $1.99
4 3296-27 NUT-LOCK, NI Price: $0.27
5 33024-00 NUT-LOCK, NI Price: $0.75
6 3273-26 SCREW-HSH Price: $0.41
7 94-9611 HANDLE Price: $151.08
8 256-311 BUSHING-SPLIT Price: $13.37
9 112-0278 SWITCH-REED Price: $55.79
10 120-5341 KIT-SERVICE, ACTUATOR This part replaces 93-2056. Price: $43.38
11 94-1378 TUBE-PIVOT, HANDLE Price: $9.66
12 33115-040 SCREW-HH Price: $1.22
13 33025-00 NUT-LOCK, NI Price: $0.54
14 3256-24 WASHER-FLAT Price: $0.28
15 94-6398 BRACKET-TRACTION Price: $31.52
16 3256-23 WASHER-PLAIN Price: $0.28
17 75-5470 SPACER-BEARING Price: $3.06
19 251-259 BEARING-BALL Price: $13.67
20 94-9617 PIN-SPRING Price: $9.91
21 233-42 KNOB Price: $12.88
22 120-3198 ROLLER-PIVOT This part replaces 94-9614. Price: $9.78
23 94-9619 BUSHING Price: $17.13
24 3256-67 WASHER Price: $0.49
25 94-9618 SPACER-SPRING Price: $9.85
26 94-9620 SPRING-TORSION Price: $20.28
27 33023-00 NUT-LOCK Price: $0.25
