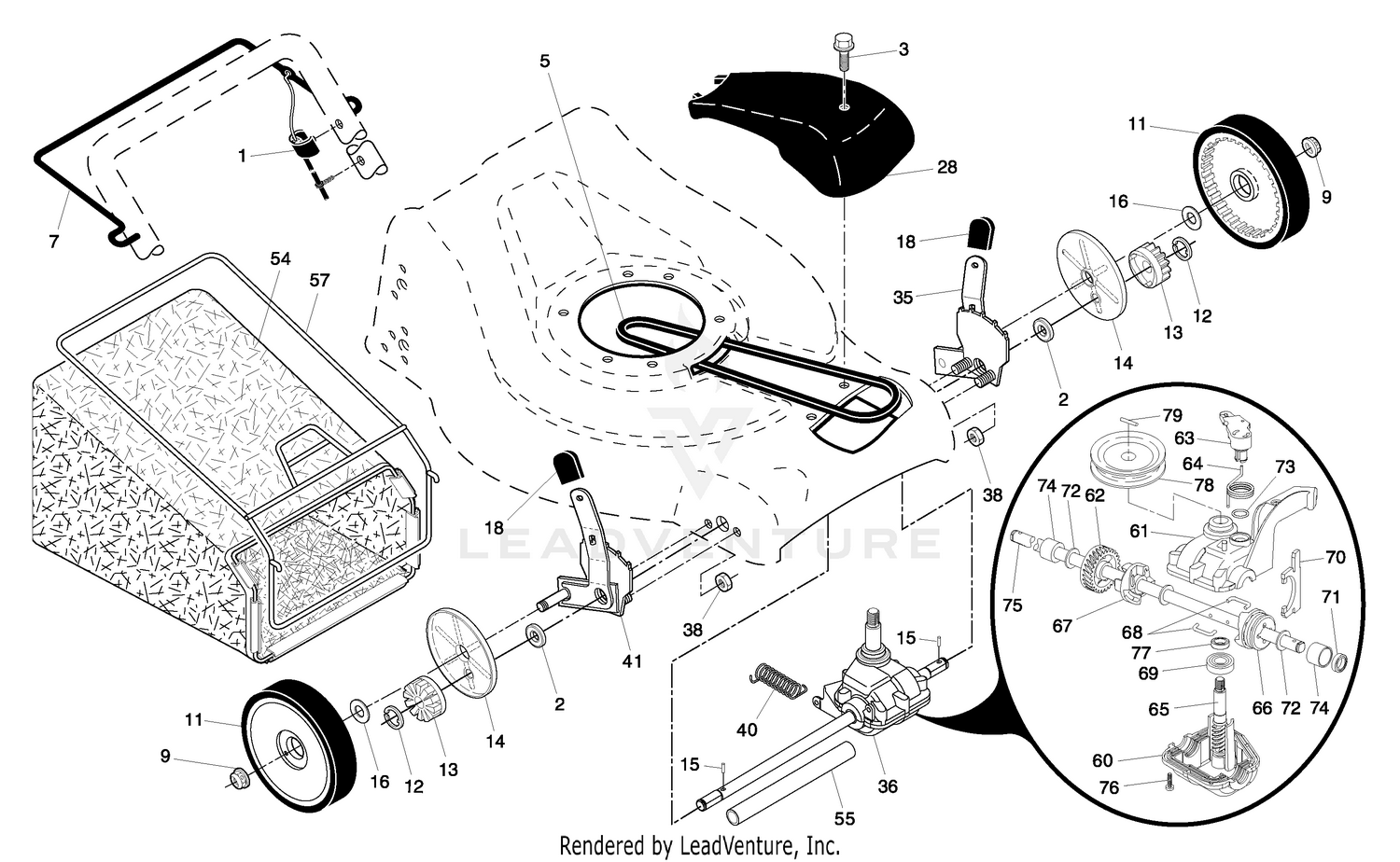

| Ref | Part Number | Description |
|---|
| 1 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 1 |
194653 |
Drive Control Cable Price: Call Us |
| 2 |
191039 |
Bearing, Wheel Adjuster Price: Call Us |
| 2 |
32128-19 |
NUT-HF Price: $0.99 |
| 3 |
100-2588 |
V-BELT, B-SECTION Price: $83.09 |
| 3 |
175262 |
Pan Head Tapping Screw #10-24 x 2-3/4 Price: Call Us |
| 4 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 5 |
175436 |
V-Belt Price: Call Us |
| 5 |
3290-256 |
PIN-HAIR Price: $1.01 |
| 6 |
150495 |
Spring Retainer Price: Call Us |
| 6 |
86-2010 |
PIN-HOC Price: $91.17 |
| 7 |
194685X428 |
Control Bar, Drive Price: Call Us |
| 8 |
3216-6 |
SCREW-HH Price: $17.98 |
| 9 |
83923 |
Nut, Flangelock, Special Thread Price: Call Us |
| 11 |
193912X421 |
Wheel & Tire Assembly Price: Call Us |
| 11 |
69-1510 |
SPACER Price: $4.48 |
| 12 |
12000058 |
E-Ring Price: Call Us |
| 12 |
32128-54 |
NUT-HF Price: $5.25 |
| 13 |
750003 |
Pinion Price: Call Us |
| 14 |
189403 |
Dust Cover Price: Call Us |
| 14 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 15 |
191017 |
Pawl, Drive Price: Call Us |
| 15 |
92-7756 |
DISCONTINUED Price: Call Us |
| 16 |
67725 |
Washer 1/2 x 1-1/2 x .134 Price: Call Us |
| 16 |
86-2600-01 |
WASHER-GUIDE, BELT Price: $5.77 |
| 17 |
32128-29 |
NUT-LOCK, FLANGE Price: $1.63 |
| 18 |
87877 |
Selector Knob Price: Call Us |
| 21 |
86-1440 |
WASHER-FLAT Price: $2.10 |
| 22 |
92-9727 |
HOC CAP ASM Price: $78.05 |
| 28 |
194404X428 |
Dive Cover Price: Call Us |
| 36 |
199205 |
Gear Case Assembly, Complete Price: Call Us |
| 38 |
73800400 |
Locknut, Hex 1/4-20 Price: Call Us |
| 40 |
137090 |
Spring Price: Call Us |
| 54 |
402460 |
Grassbag Price: Call Us |
| 55 |
175739 |
Driveshaft Cover Price: Call Us |
| 57 |
194643 |
Frame, Grassbag Price: Call Us |
| 62 |
183499 |
Gear, 27 Teeth Price: Call Us |
| 63 |
183500 |
Lever, Clutch Price: Call Us |
| 64 |
183501 |
Spring, Return Price: Call Us |
| 65 |
183502 |
Shaft, Input Price: Call Us |
| 66 |
183503 |
Dog, Movable Price: Call Us |
| 67 |
183504 |
Dog, Fixed Price: Call Us |
| 68 |
183505 |
Wire, Formed Price: Call Us |
| 69 |
183506 |
Bearing, Ball Price: Call Us |
| 70 |
183507 |
Fork, Shift Price: Call Us |
| 71 |
183508 |
Seal, Output Shaft Price: Call Us |
| 72 |
183509 |
Washer Price: Call Us |
| 73 |
183510 |
Seal, Case Price: Call Us |
| 74 |
183511 |
Bushing Price: Call Us |
| 75 |
196613 |
Shaft, Output Price: Call Us |
| 76 |
183513 |
Screw Price: Call Us |
| 77 |
183514 |
Seal, Input Shaft Price: Call Us |
| 78 |
199852 |
Drive Pulley Price: Call Us |
