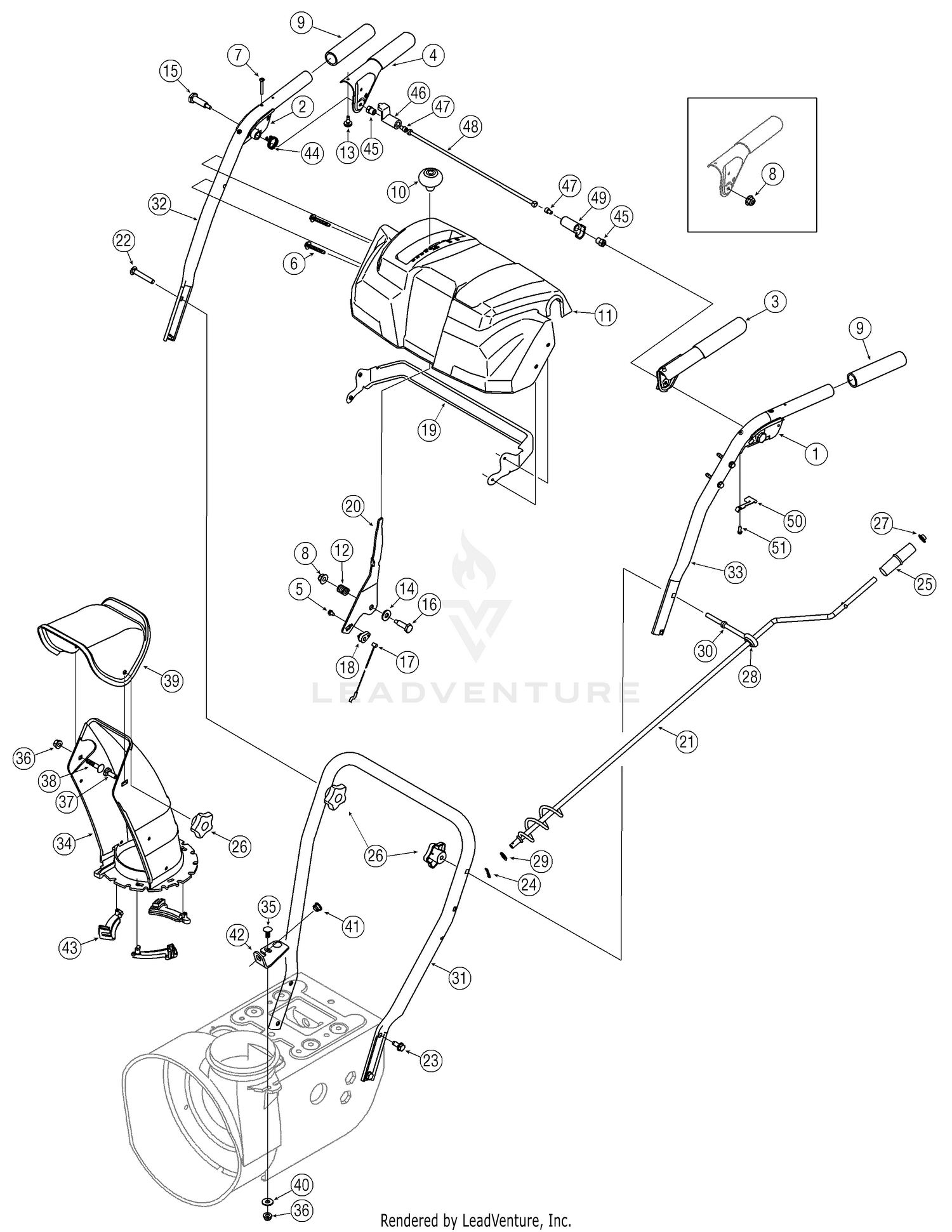

| Ref | Part Number | Description |
|---|
| 1 |
631-04133A |
Clutch Lock, LH This part replaces 631-04133. Price: $13.42 |
| 2 |
631-04134B |
Clutch Lock, RH This part replaces 631-04134A. Price: $13.42 |
| 3 |
684-04105D |
HANDLE ASSEMBLY (LH) This part replaces 684-04105A. Price: $20.10 |
| 4 |
684-04106D |
HANDLE ASSEMBLY (RH) This part replaces 684-04106A. Price: $19.00 |
| 5 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-0224. Price: $3.19 |
| 6 |
710-04586 |
Screw, 1/4-20, 1.625 Price: $6.07 |
| 7 |
710-1233 |
Screw, Machine, #10-24, 1.375 Price: $3.95 |
| 8 |
712-04064 |
Nut, Flange Lock, 1/4-20, Nylon Price: $3.64 |
| 9 |
720-0274 |
Grip, 1.0 ID x 5.0 Price: $9.99 |
| 10 |
720-04039 |
Knob, Shift Price: $9.09 |
| 11 |
731P05334C |
HANDLE PANEL (TROY-BILT) This part replaces 731-05334. Price: $63.24 |
| 12 |
732-0193 |
Spring, .39 x .60 x .88 Price: $4.11 |
| 13 |
735-0199A |
Bumper, Rubber, .62 OD x .22 Price: $6.89 |
| 14 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 15 |
738-04348 |
Screw, Shoulder, .437 x 1.345 x 1/4-20 This part replaces 738-04122. Price: $3.14 |
| 16 |
738-04125 |
Screw, Shoulder, .374 Dia. x 1.05 Price: $4.08 |
| 17 |
746-04227A |
Cable, Speed Selector Price: $19.97 |
| 18 |
946-0605 |
Barrel Cable Hold Down This part replaces 746-0605. Price: $3.94 |
| 19 |
790-00248E-0637 |
HANDLE SUPPORT BRACKET This part replaces 790-00248. Price: $21.49 |
| 20 |
790-00203-0637 |
SHIFT LEVER Not Available This part replaces 790-00203. Price: |
| 21 |
684-04104-0637 |
CHUTE CRANK ASSEMBLY This part replaces 684-04104. Price: $54.78 |
| 22 |
710-0572 |
Carriage Bolt 5/16-18 x 2.5" This part replaces 710-0449. Price: $3.75 |
| 23 |
710-1260A |
Screw, 5/16-18, 0.75, Gr5 Price: $3.34 |
| 24 |
714-0104 |
Pin, Cotter, .072 x 1.13 Price: $3.90 |
| 25 |
720-0201A |
Crank Knob, 1.0 Dia. x 3.2, Black Price: $9.62 |
| 26 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 27 |
726-0100 |
Cap, Push, 3/8 Rod Price: $3.75 |
| 28 |
735-0234 |
Grommet, .44 ID x .94 OD x .50 Price: $4.51 |
| 29 |
736-0185 |
Washer, Flat, .375 x .738 x .063 Price: $3.43 |
| 30 |
747-04263 |
Eye Bolt, Chute Crank Price: $8.31 |
| 31 |
749-04138A |
Lower Handle This part replaces 749-04138. Price: $77.98 |
| 32 |
749-04141 |
Handle, Upper, RH Price: $47.01 |
| 33 |
749-04191A |
Upper Handle LH This part replaces 749-04142. Price: $34.63 |
| 34 |
731-04912B |
LOWER CHUTE 5" This part replaces 731-04912A. Price: $33.91 |
| 35 |
710-0276 |
Bolt, Carriage, 5/16-18, 1.0 Price: $3.68 |
| 36 |
712-04063 |
Nut, Flange Lock, 5/16-18, Nylon Price: $3.56 |
| 37 |
710-04071 |
Bolt, Carriage, 5/16-18, 1.0 Price: $3.94 |
| 38 |
710-0451 |
Bolt, Carriage, 5/16-18, .750 Price: $3.53 |
| 39 |
731-04426C |
UPPER CHUTE (W/LBL MANUAL TILT) This part replaces 731-04426A. Price: $17.04 |
| 40 |
736-0159 |
Washer.349 ID x .879 OD x .063 Price: $3.71 |
| 41 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 42 |
784-5647-0637 |
Chute Crank Bracket This part replaces 784-5647. Price: $12.51 |
| 43 |
731-04869A |
FLANGE KEEPER CHUTE This part replaces 731-04869. Price: $3.85 |
