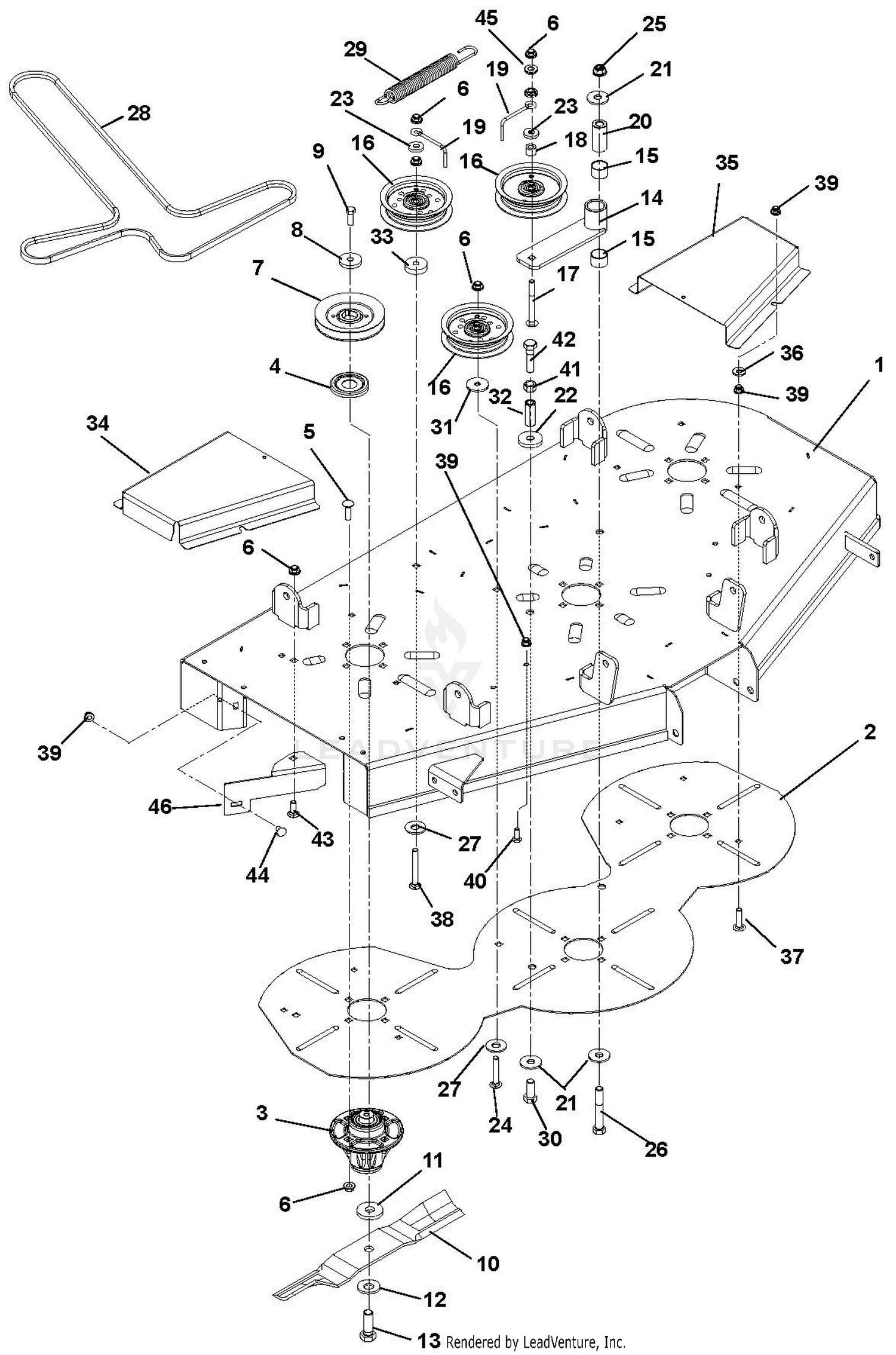

| Ref | Part Number | Description |
|---|
| 3 |
51510000 |
ASSEMBLY, SPINDLE This part replaces 61543800. Price: $204.95 |
| 4 |
00587400 |
DUST CAP Price: $7.45 |
| 5 |
06200415 |
BLT, RHSN .38-16X1.25 G5 ZCC This part replaces 06224100. Price: $2.45 |
| 6 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 7 |
07330267 |
PULLEY, SPINDLE Price: $46.95 |
| 8 |
06401110 |
WSHR, FLT .406X1.50X.245 ZCC This part replaces 06400006. Price: $3.95 |
| 9 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05900013. Price: $1.95 |
| 11 |
06400829 |
WSHR-FLT .640X1.75X.250 Price: $3.95 |
| 12 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 13 |
05901822 |
BLT, HEX .62-18X1.75 G8 ZCC This part replaces 05978900. Price: $3.45 |
| 14 |
00652600 |
WELDMENT, IDLER ARM Price: $36.95 |
| 15 |
05435800 |
BRG, 1.00 X 1.12 X .75 Price: $8.45 |
| 16 |
07350100 |
IDLER, FLAT - 4.06" X .75" This part replaces 07300039. Price: $43.95 |
| 17 |
06200302 |
BLT,RHSN .38-16X3.50 G5 ZCC This part replaces 06222400. Price: $8.45 |
| 18 |
08553700 |
BSHG-SLV .391X.688X.52 PM Price: $5.45 |
| 19 |
00391900 |
BELT FINGER Price: $18.45 |
| 20 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 21 |
06401022 |
WSHR-FL-STL.511X1.44X.125ZC120 This part replaces 06436400. Price: $2.95 |
| 22 |
06445000 |
WSHR-FL-STL .515X1.625X.250 YZ Price: $5.45 |
| 23 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC This part replaces 06444000. Price: $2.45 |
| 24 |
06200301 |
BLT,RHSN .38-16X2.25 G5 ZCC This part replaces 06213400. Price: $3.95 |
| 25 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 26 |
05901937 |
BLT, HEX .50-13X3.50 G5 ZCC This part replaces 05965800. Price: $4.45 |
| 27 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 29 |
08300020 |
EXTENSION SPRING Price: $23.45 |
| 30 |
05901637 |
BLT,HEX .50-13X1.25 G5 ZCC This part replaces 05958900. Price: $2.95 |
| 31 |
06441700 |
WSHR-FL-STL .390X1.5X.125 YWZC Price: $3.45 |
| 32 |
06500013 |
NUT, COUPLING 1/2-13X1.75 YWZC Price: $3.45 |
| 33 |
01594000 |
SPACER, .39 X 1.50 X .380 Price: $3.45 |
| 35 |
02995253 |
COVER-BELT LH Price: $39.95 |
| 36 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 37 |
06200407 |
BLT, RHSN .31-18X1.25 G5 ZCC This part replaces 06219200. Price: $3.95 |
| 38 |
06200418 |
BLT, RHSN .38-16X3.00 G5 ZCC This part replaces 06228100. Price: $3.95 |
| 41 |
06500814 |
NUT,HEX .50-13 G2 ZCC This part replaces 06537300. Price: $3.95 |
| 42 |
05901929 |
BLT, HEX .50-13X2.00 G5 ZCC This part replaces 05959700. Price: $2.95 |
| 43 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 44 |
06200333 |
BLT, RHSSN .31-18X.625 G5 ZCC This part replaces 06212200. Price: $1.45 |
| 45 |
05515800 |
BSHG-FLG .406X.88X.270X.140 Price: $8.45 |
