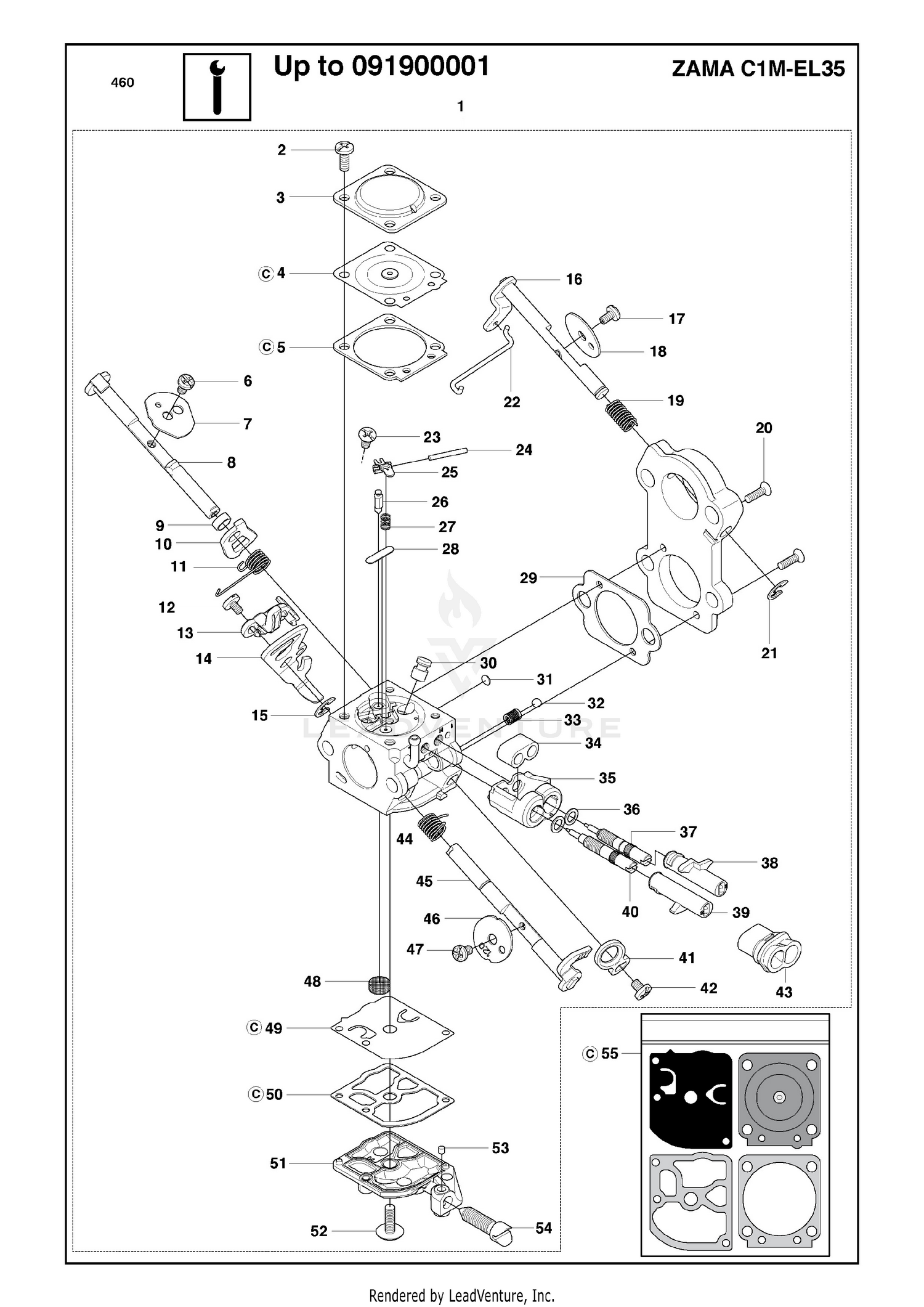

Service Update
Parts (84)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 40-4010 | ROLLER Price: $10.88 |
| 2 | 503480501 | SCREW Price: $2.99 |
| 2 | 71-2180 | BUSHING Price: $9.65 |
| 3 | 537383701 | COVER Price: $11.99 |
| 3 | 71-2190 | PIN Price: $39.89 |
| 4 | 544321201 | DIAPHRAGM Price: $14.99 |
| 4 | 71-2290 | FORK AND TRIPLE BEARING ASM Price: $199.01 |
| 5 | 40-4090 | RIVET Price: $2.50 |
| 5 | 537383601 | GASKET Price: $4.99 |
| 6 | 40-4080 | U-TRACK Price: $16.69 |
| 6 | 503481801 | SCREW Price: $2.99 |
| 7 | 40-4120 | RUBBER Price: $5.47 |
| 7 | 544322301 | VALVE Price: $5.99 |
| 8 | 544321801 | SHAFT ASSY Price: $17.99 |
| 8 | 71-2310 | DISCONTINUED Price: Call Us |
| 9 | 537274401 | WASHER Price: $3.16 |
| 9 | 71-2300 | BUMPER-RUBBER Price: $17.78 |
| 10 | 544322001 | LEVER Price: $3.99 |
| 10 | 71-2280 | BAND-INDICATOR, WEIGHT Price: $18.88 |
| 11 | 40-4150 | ROLLER Price: $7.98 |
| 11 | 537021001 | SPRING Price: $2.99 |
| 12 | 40-4160 | GUIDE-SLEEVE Price: $4.51 |
| 12 | 503479001 | SCREW Price: $2.99 |
| 13 | 537332501 | LOCK Price: $12.99 |
| 13 | 71-2210 | DISCONTINUED Price: Call Us |
| 14 | 544321701 | LEVER Price: $2.99 |
| 14 | 71-2230 | RING-SNAP Price: $2.29 |
| 15 | 537385001 | CLIP Price: $4.99 |
| 15 | 71-2240 | KNOB ASM Price: $80.40 |
| 16 | 32121-23 | PIN-ROLL This part replaces 71-2220. Price: $1.33 |
| 16 | 544322601 | SHAFT ASSY Price: $14.99 |
| 17 | 40-4230 | PLUG Price: $6.02 |
| 17 | 503481801 | SCREW Price: $2.99 |
| 18 | 544322701 | VALVE Price: $6.99 |
| 18 | 71-2250 | BRACKET-SPRING Price: $28.69 |
| 19 | 544322801 | SPRING Price: $2.99 |
| 19 | 71-2330 | RING-SNAP Price: $1.25 |
| 20 | 537385101 | SCREW Price: $2.99 |
| 20 | 71-2340 | ABSORBER-SHOCK Price: $317.85 |
| 21 | 537385001 | CLIP Price: $4.99 |
| 21 | 71-2320 | PIN Price: $7.60 |
| 22 | 544322901 | LINK Price: $4.99 |
| 22 | 71-2170 | PIN Price: $18.37 |
| 23 | 503480101 | SCREW Price: $2.99 |
| 23 | 71-2270 | NUT-SPECIAL Price: $3.05 |
| 24 | 1-613235 | WASHER This part replaces 40-4070. Price: $1.49 |
| 24 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 25 | 40-4310 | BEARING-THRUST, NEEDLE Price: $36.99 |
| 25 | 503665901 | LEVER Price: $3.99 |
| 26 | 40-4060 | DISCONTINUED Price: Call Us |
| 26 | 503479701 | INLET NEEDLE Price: $8.99 |
| 27 | 503478101 | SPRING Price: $2.99 |
| 27 | 71-2260 | SPRING Price: $84.32 |
| 28 | 40-4340 | SPRING-COIL Price: $13.82 |
| 28 | 503535601 | PLUG Price: $3.99 |
| 29 | 40-4350 | SPRING-COIL Price: $6.64 |
| 29 | 537385301 | GASKET Price: $3.99 |
| 30 | 40-4360 | PLATE Price: $6.60 |
| 30 | 544321601 | NOZZLE ASSY Price: $8.99 |
| 31 | 40-4370 | BOLT Price: $1.05 |
| 31 | 544119501 | PLUG Price: $3.99 |
| 32 | 40-4380 | DISCONTINUED Price: Call Us |
| 32 | 537012501 | BALL Price: $2.99 |
| 33 | 537012601 | SPRING Price: $2.99 |
| 33 | 71-2200 | SWING ARM ASM Price: $366.84 |
| 34 | 537274201 | SLEEVE Price: $5.99 |
| 35 | 503903401 | SLEEVE Price: $6.99 |
| 36 | 503974001 | WASHER Price: $2.99 |
| 38 | 537384701 | LIMITER Price: $6.99 |
| 39 | 537384601 | LIMITER Price: $4.99 |
| 41 | 544322501 | LEVER Price: $6.99 |
| 42 | 503479001 | SCREW Price: $2.99 |
| 43 | 544071401 | GUIDE SLEEVE CARB This part replaces 537238701. Price: $4.99 |
| 44 | 537382901 | SPRING Price: $3.99 |
| 45 | 544321001 | SHAFT ASSY Price: $17.99 |
| 46 | 537383001 | FLAP Price: $11.99 |
| 47 | 503481801 | SCREW Price: $2.99 |
| 48 | 503535701 | STRAINER Price: $3.99 |
| 49 | 537383101 | PUMP DIAPHRAGM Price: $11.99 |
| 50 | 537020101 | GASKET Price: $3.99 |
| 51 | 544321101 | COVER Price: $29.99 |
| 52 | 503479601 | SCREW Price: $2.99 |
| 53 | 503481101 | PLUG Price: $3.99 |
| 54 | 537383301 | SCREW Price: $6.99 |
