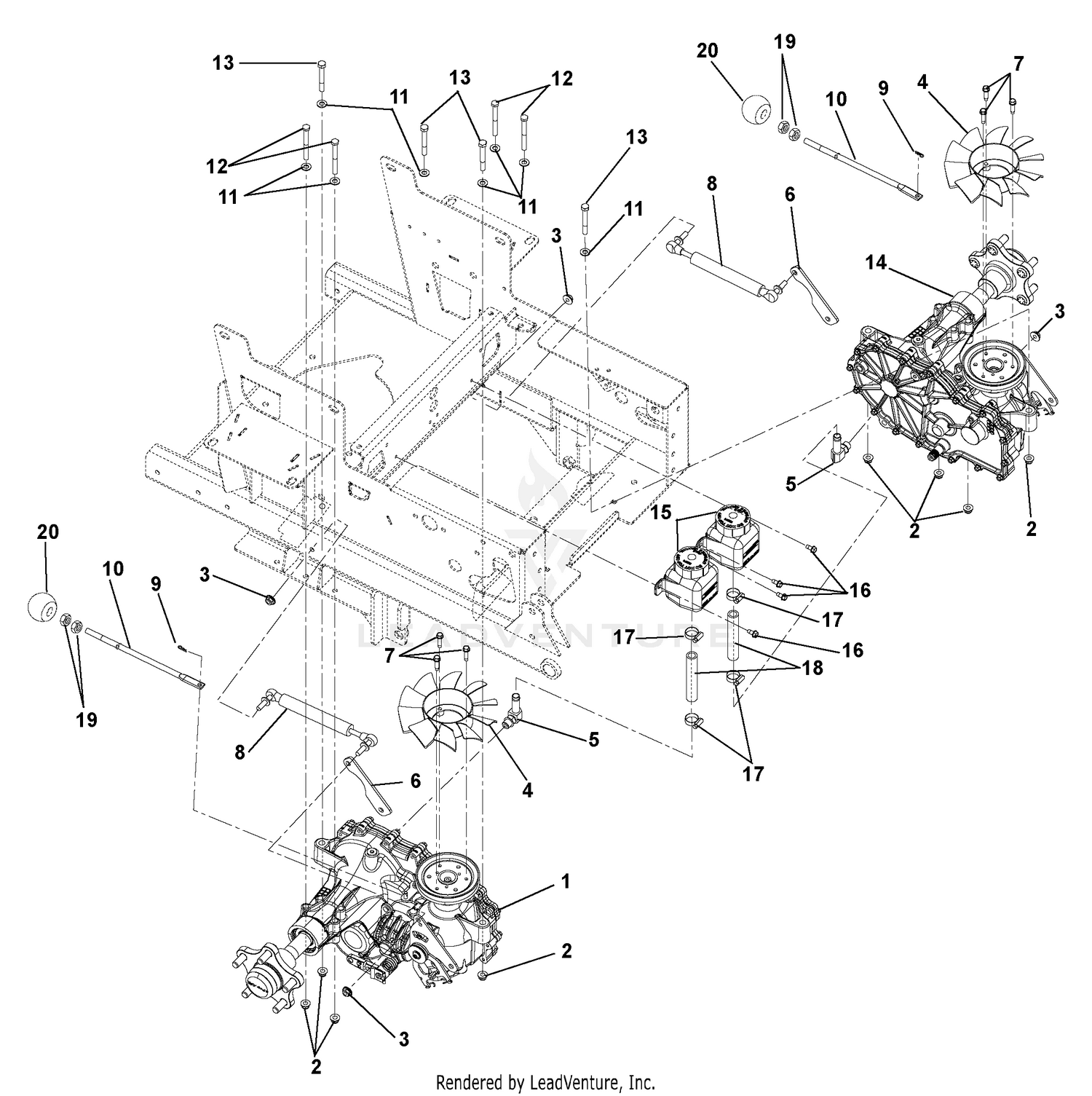

| Ref | Part Number | Description |
|---|
| 1 |
09184700 |
TRANSAXLE, ZT-3400 - RH This part replaces 03776400. Price: $1,499.95 |
| 2 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 3 |
803-220C |
NUT HEX FLANGE M8X1.25 PLT This part replaces 06500623. Price: $3.45 |
| 4 |
03283500 |
FAN, 2800 SERIES COOLING Price: $30.95 |
| 6 |
03855000 |
PLATE, CONTROL REINFORCEMENT Price: $9.95 |
| 7 |
07400133 |
SCR,TAP .25-20X1.00 HWH TR ZCC This part replaces 07412400. Price: $2.95 |
| 8 |
00188700 |
DAMPER Price: $87.95 |
| 9 |
06700221 |
PIN-HAIR INT .06X.18X.77 This part replaces 06701900. Price: $0.45 |
| 10 |
03911900 |
LEVER, PT100 DUMP VALVE Price: $71.45 |
| 11 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 12 |
05901933 |
BLT, HEX .31-18X3.00 G5 ZCC This part replaces 05962500. Price: $3.45 |
| 13 |
05901912 |
BLT, HEX 0.3125-18X2.5 GR5 ZCC This part replaces 05952600. Price: $1.45 |
| 14 |
09184600 |
TRANSAXLE, ZT-3400 - LH This part replaces 03776500. Price: $1,499.95 |
| 15 |
02970200 |
TANK, EXPANSION Price: $29.95 |
| 16 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 17 |
06923500 |
CLAMP,.88 DIA. HOSE Price: $1.95 |
| 18 |
03832300 |
HOSE, 100I HYDRO OVERFLOW Price: $5.45 |
| 19 |
06500909 |
NUT-JAM .312-18 G2 ZCC This part replaces 06536100. Price: $0.95 |
| 20 |
07539800 |
KNOB-BALL-BLACK .312-18 X 1.00 Price: $5.45 |
