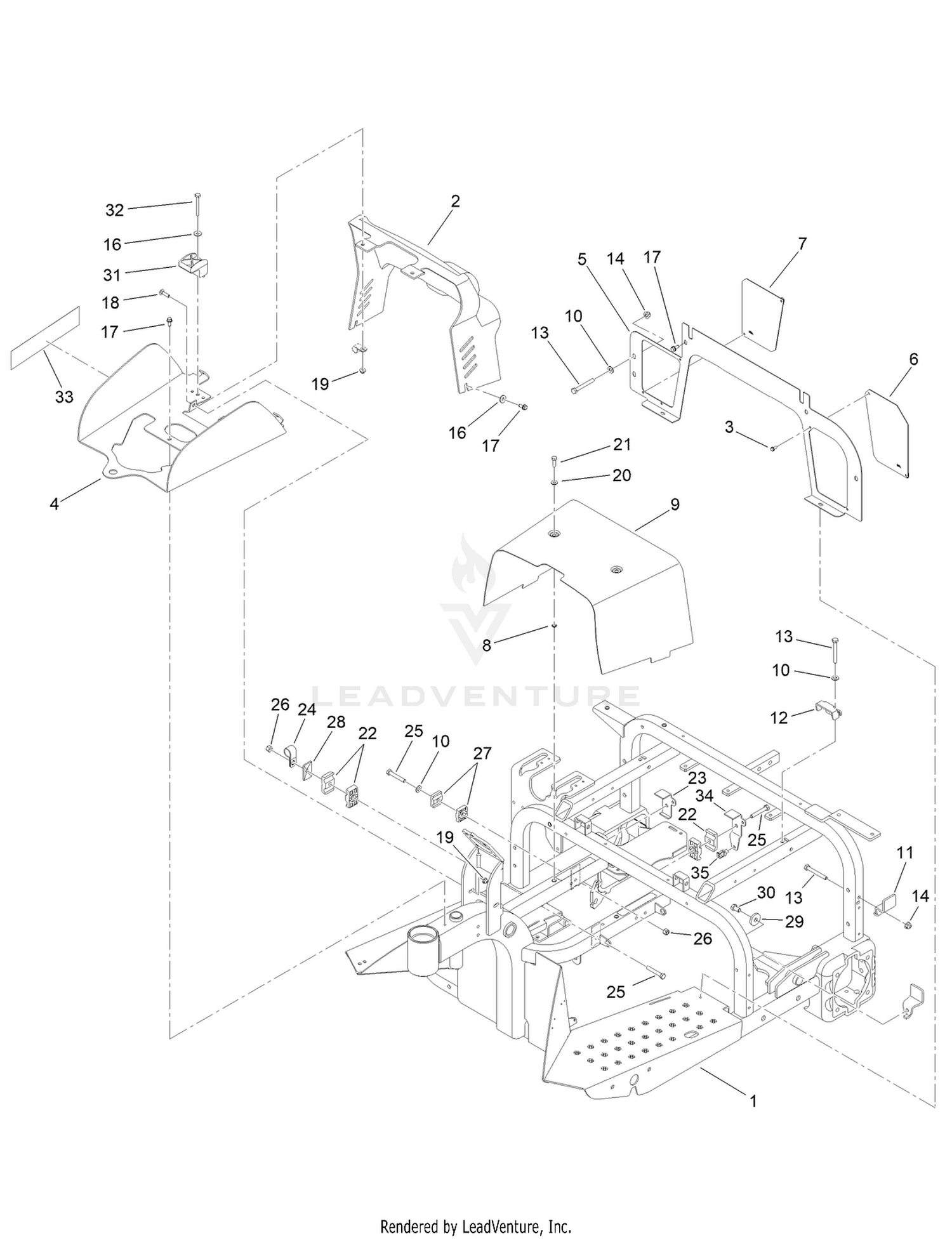

Frame and Shroud Assembly

Ref	Part Number	Description
1	140-0295SP	FRAME ASM Price: $3,852.11
2	108-6898	SHROUD-DASH Price: $245.75
3	3290-321	SCREW-HWH Price: $3.99
4	108-6895-01	BRACKET-MOUNT, TANK Price: $187.80
5	112-1443-01	PANEL-FRONT Price: $123.71
6	120-3491-01	SCREEN-PANEL, LH Price: $51.19
7	120-3492-01	SCREEN-PANEL, RH Price: $51.19
8	32115-15	PUSHNUT-RETAINER, BOLT Price: $0.99
9	108-6859-01	SHROUD-CENTER Price: $158.31
10	3256-23	WASHER-PLAIN Price: $0.28
11	108-7965	CLAMP-TANK, HYD Price: $12.07
12	108-7903	CLAMP-TANK Price: $23.15
13	32136-4	NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56
14	104-8300	NUT-HF, NI Price: $0.39
16	3256-78	WASHER-FLAT Price: $1.21
17	32144-10	SCREW-HWH Price: $4.29
18	3229-2	SCREW-CARR Price: $2.89
19	104-7201	NUT-HF Price: $0.69
20	3256-1	WASHER-FLAT Price: $0.39
21	321-5	SCREW-HH Price: $0.22
22	56-7976	CLAMP-TUBE Price: $2.44
23	110-1333	BRACKET-CLAMP Price: $12.74
24	2412-4	CLAMP-R Price: $4.22
25	322-10	SCREW-HH Price: $0.70
26	3296-29	NUT-LOCK, NI Price: $2.09
27	56-7973	CLAMP-TUBE Price: $15.56
28	69-9760	COVERPLATE Price: $5.38
29	53-6380	WASHER-FLAT Price: $8.62
30	323-34	SCREW-HH Price: $0.54
31	107-4543	CLAMP Price: $13.47
32	321-18	SCREW-HH Price: $1.89
33	108-8420	DECAL Price: $35.49
34	110-1332	BRACKET-CLAMP Price: $17.26
