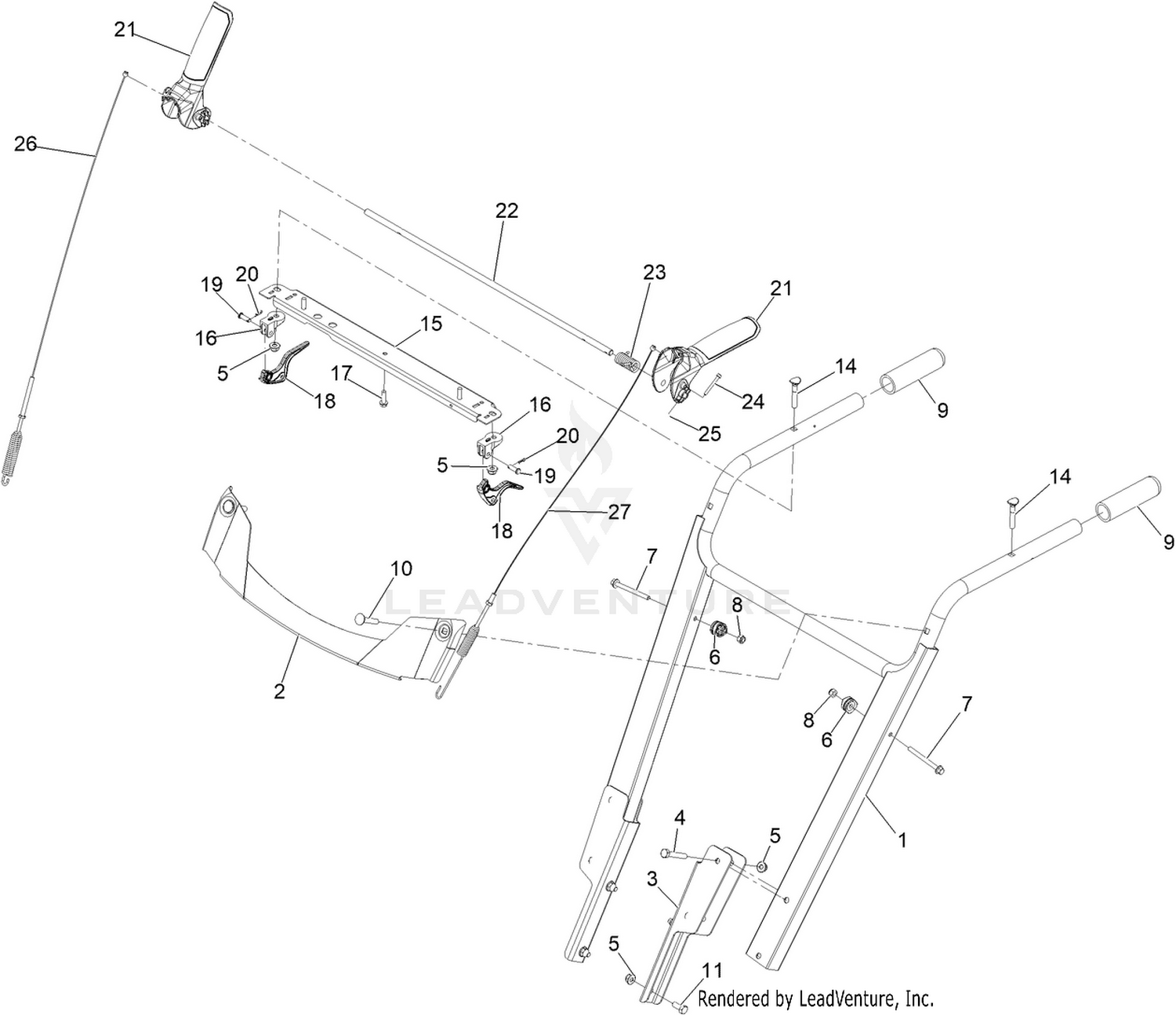

Handle Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-6224-01 | HANDLE ASM HD, WELDED Price: $146.99 |
| 2 | 137-6233-03 | METAL TRIM, HD Price: Call Us |
| 3 | 137-6221-03 | BRACKET-HANDLE, LOWER Price: $17.99 |
| 4 | 120-9686 | SCREW-HH Price: $2.49 |
| 5 | 138-8401 | NUT-HF Price: $1.19 |
| 6 | 106-4509 | CLAMP-CABLE Price: $5.89 |
| 7 | 138-3653 | SCREW-HHF Price: $1.19 |
| 8 | 137-3094 | NUT-HEX Price: $1.19 |
| 9 | 120-1333 | GRIP-HANDLE Price: $7.89 |
| 10 | 138-8402 | BOLT-CARR Price: $1.19 |
| 11 | 137-3052 | SCREW-HH Price: $1.19 |
| 14 | 137-3107 | SCREW-HANDLE Price: $1.69 |
| 15 | 145-4075-03 | BRACE-CONSOLE Price: $18.99 |
| 16 | 105-9980 | MOUNT-LEVER, CLUTCH Price: $7.69 |
| 17 | 137-3099 | SCREW-PLASTITE, HWH Price: $1.19 |
| 18 | 106-4505 | LEVER-CLUTCH Price: $8.09 |
| 19 | 1-808265 | PIN-CLEVIS Price: $3.19 |
| 20 | 108-2992 | PIN-HAIR Price: $1.19 |
| 21 | 137-6171 | LEVER-CONTROL Price: $11.99 |
| 22 | 144-1343 | Rod-Lockout Price: Call Us |
| 23 | 138-0678 | SPRING-TORSION, HANDLE RETURN Price: $3.09 |
| 24 | 145-0660 | SCREW-HSH M4-0.7 X 36MM Price: $0.59 |
| 25 | 131-8641 | NUT-HEX NYL INS M4-0.7 Price: $2.29 |
| 26 | 161-0973 | CABLE-AUGER Price: $24.99 |
| 27 | 161-0976 | CABLE-TRACTION Price: $21.99 |
