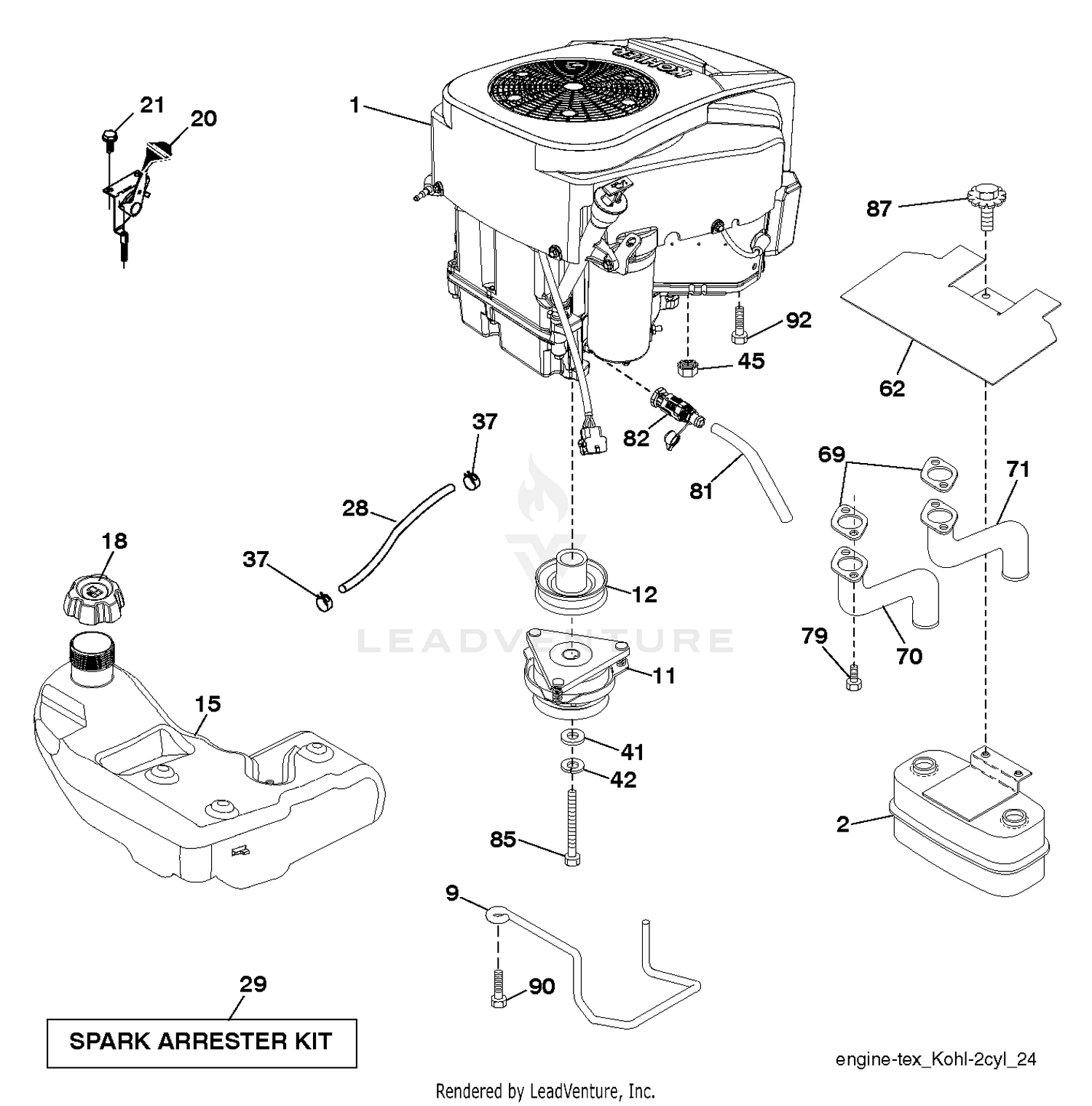

| Ref | Part Number | Description |
|---|
| 1 |
11-1749 |
DISCONTINUED Price: Call Us |
| 2 |
43-2610 |
VALVE ASM Price: $502.95 |
| 2 |
532445962 |
MUFFLER.ASM.TWN.EXTNDED.DFLCTR Price: $54.99 |
| 3 |
3290-192 |
DISCONTINUED Price: Call Us |
| 4 |
43-2630 |
DISCONTINUED Price: Call Us |
| 5 |
218-250 |
BUTT CONNECTOR Price: $4.82 |
| 6 |
321-5 |
SCREW-HH Price: $0.22 |
| 7 |
237-62 |
DISCONTINUED Price: Call Us |
| 8 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 9 |
44-0170 |
COLD START PLUG Price: $73.19 |
| 9 |
584908001 |
KEEPER BELT ENGINE Price: $2.99 |
| 10 |
43-7700 |
DISCONTINUED Price: Call Us |
| 11 |
43-2620 |
TEMP SENSOR SWITCH Price: $420.36 |
| 11 |
587241401 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH01 Price: $199.99 |
| 12 |
43-2670 |
DISCONTINUED Price: Call Us |
| 12 |
532194343 |
PULLEY ENGINE Price: $44.99 |
| 13 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 14 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 15 |
43-7740 |
DISCONTINUED Price: Call Us |
| 15 |
532438081 |
TANK.ASM.4.GAL.EPA.ONE.PORT Price: $219.99 |
| 16 |
43-2640 |
FUEL TUBING Price: $19.22 |
| 17 |
43-7610 |
FITTING ASM Price: $65.61 |
| 18 |
585124802 |
CAP ASSY FUEL 3" BLACK Price: $11.99 |
| 18 |
7-4318 |
DISCONTINUED Price: Call Us |
| 19 |
43-6920 |
DISCONTINUED Price: Call Us |
| 20 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $29.99 |
| 21 |
321-2 |
SCREW-HH Price: $2.79 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 22 |
43-7780 |
DISCONTINUED Price: Call Us |
| 23 |
43-6930 |
DISCONTINUED Price: Call Us |
| 28 |
532401135 |
LINE.FUEL.64"REAR.EMIS Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $4.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 62 |
532434017 |
SHIELD.HEAT.MUFFLER Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $3.99 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 85 |
581636201 |
BOLT.HEX.7/16-20X3.0XGR5 Price: $1.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
