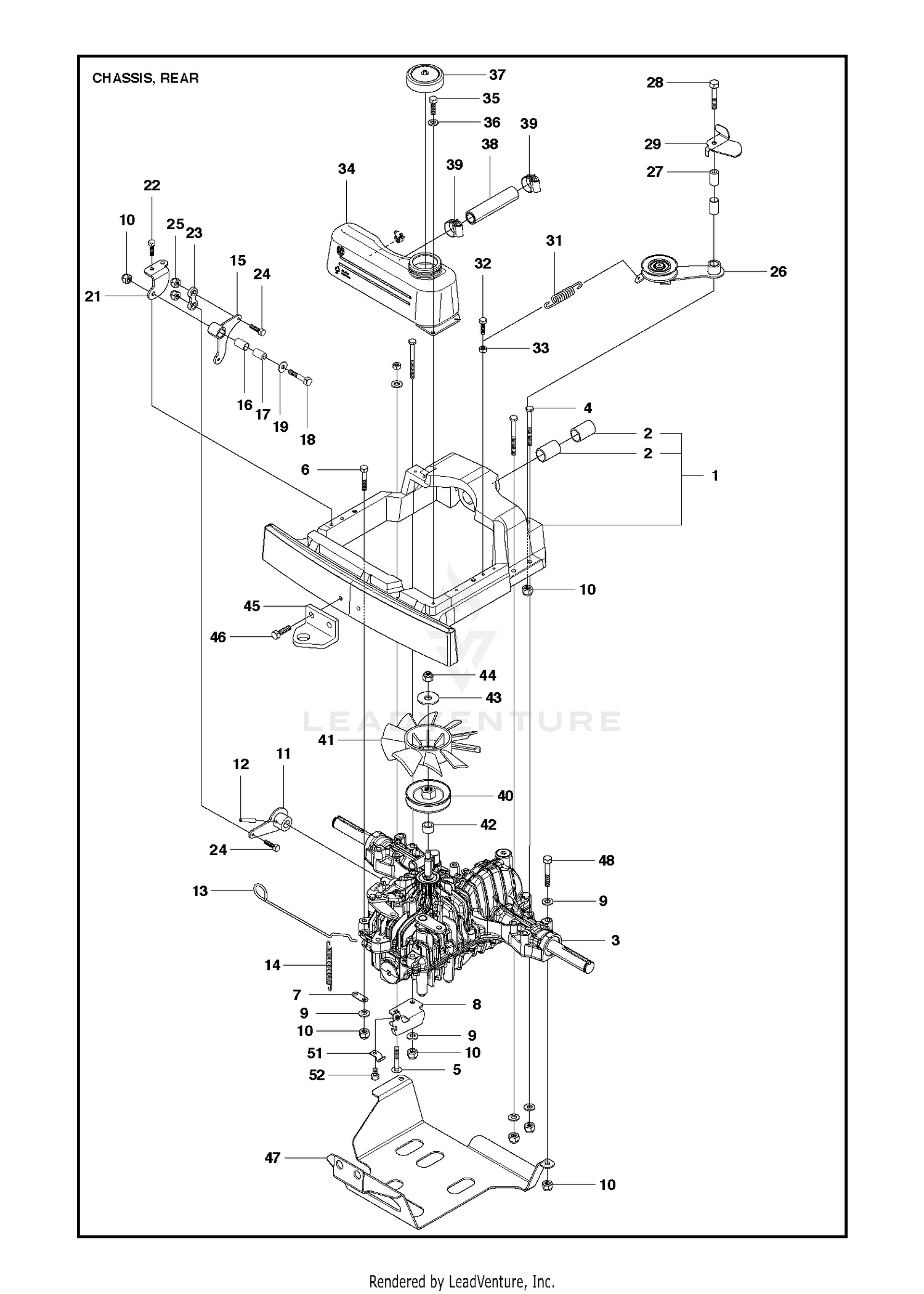

CHASSIS REAR
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-6186 | HOSE-FUEL Price: $15.70 |
| 1 | 535406101 | BRACKET Price: $357.29 |
| 2 | 110-8752 | HOSE-FUEL Price: $9.32 |
| 2 | 506986102 | BUSHING Price: $14.99 |
| 3 | 32128-44 | NUT Price: $2.69 |
| 3 | 586700601 | NEEDS DESCRIPTION Price: Call Us |
| 4 | 110-9044 | SEPARATOR-FILTER Price: $98.19 |
| 4 | 504628201 | NEEDS DESCRIPTION Price: Call Us |
| 5 | 110-4104 | HOSE-FUEL Price: $8.95 |
| 5 | 535423808 | NEEDS DESCRIPTION Price: Call Us |
| 6 | 725246651 | Screw Price: $3.27 |
| 6 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 7 | 353-781 | FITTING-HYD, 90 Price: $24.44 |
| 7 | 506599301 | CONNECTOR Price: $5.99 |
| 8 | 114-4058-0P | MOUNT-SEPARATOR This part replaces 114-4058-03. Price: $24.74 |
| 8 | 544388101 | NEEDS DESCRIPTION Price: Call Us |
| 9 | 2412-80 | CLAMP-HOSE Price: $4.39 |
| 9 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 10 | 110-8255 | HOSE-FUEL Price: $18.01 |
| 10 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 11 | 3230-10 | BOLT-CARR Price: $0.50 |
| 11 | 544387301 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 354-107 | FITTING-HYD, TEE Price: $7.14 |
| 12 | 721434701 | PIN Price: $2.99 |
| 13 | 114-4028 | HOSE-FUEL Price: $15.11 |
| 13 | 505490101 | NEEDS DESCRIPTION Price: Call Us |
| 14 | 32180-030 | CLIP-TIE Price: $4.19 |
| 14 | 506834301 | SPRING Price: $3.99 |
| 15 | 32144-110 | SCREW-HWH Price: $1.29 |
| 15 | 579596501 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 110-8817 | BRACKET-PUMP, FUEL Price: $21.97 |
| 16 | 506986103 | Price: $8.66 |
| 17 | 144-4020 | KIT-FUEL PUMP, SERVICE This part replaces 110-8806. Price: $192.50 |
| 17 | 506992001 | BUSHING Price: $9.99 |
| 18 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 19 | 734116441 | SPACER Price: $3.99 |
| 21 | 544388501 | NEEDS DESCRIPTION Price: Call Us |
| 22 | 725244951 | BOLT - M8X16 This part replaces 725244971. Price: $2.99 |
| 23 | 544888401 | NEEDS DESCRIPTION Price: Call Us |
| 24 | 725236871 | BOLT FLANGE - M6X20 Price: $2.99 |
| 25 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 26 | 506993001 | TENSIONER Price: $74.99 |
| 27 | 506992001 | BUSHING Price: $9.99 |
| 28 | 725246251 | SCREW Price: $4.99 |
| 29 | 522521702 | NEEDS DESCRIPTION Price: Call Us |
| 31 | 506542501 | SPRING Price: $6.99 |
| 32 | 725237271 | SCREW Price: $3.99 |
| 33 | 731231601 | NUT Price: $2.99 |
| 34 | 544388601 | EXPANSION TANK K664 Price: $79.99 |
| 35 | 725236871 | BOLT FLANGE - M6X20 Price: $2.99 |
| 36 | 734115441 | WASHER - 26X6.5X1.6 Price: $0.99 |
| 37 | 506673301 | FUEL CAP Price: $27.99 |
| 38 | 535458302 | NEEDS DESCRIPTION Price: Call Us |
| 39 | 505443601 | NEEDS DESCRIPTION Price: Call Us |
| 40 | 506991401 | PULLEY Price: $69.99 |
| 41 | 506948101 | FAN Price: $14.99 |
| 42 | 502433801 | NEEDS DESCRIPTION Price: Call Us |
| 43 | 734117441 | WASHER Price: $3.99 |
| 45 | 506889901 | DRAW RING Price: $17.99 |
| 46 | 725249371 | Screw M10x25 Price: $1.82 |
| 47 | 504555101 | NEEDS DESCRIPTION Price: Call Us |
| 48 | 725246451 | SCREW Price: $5.99 |
| 51 | 506566501 | CLAMP Price: $2.99 |
| 52 | 725236671 | Screw Price: $1.45 |
