Home / OPE / Riding Products / 02770, R3240T 4-Wheel Drive Wide Area Mower Traction Unit, 2011 (SN 311090001-311999999) / Wing Arms

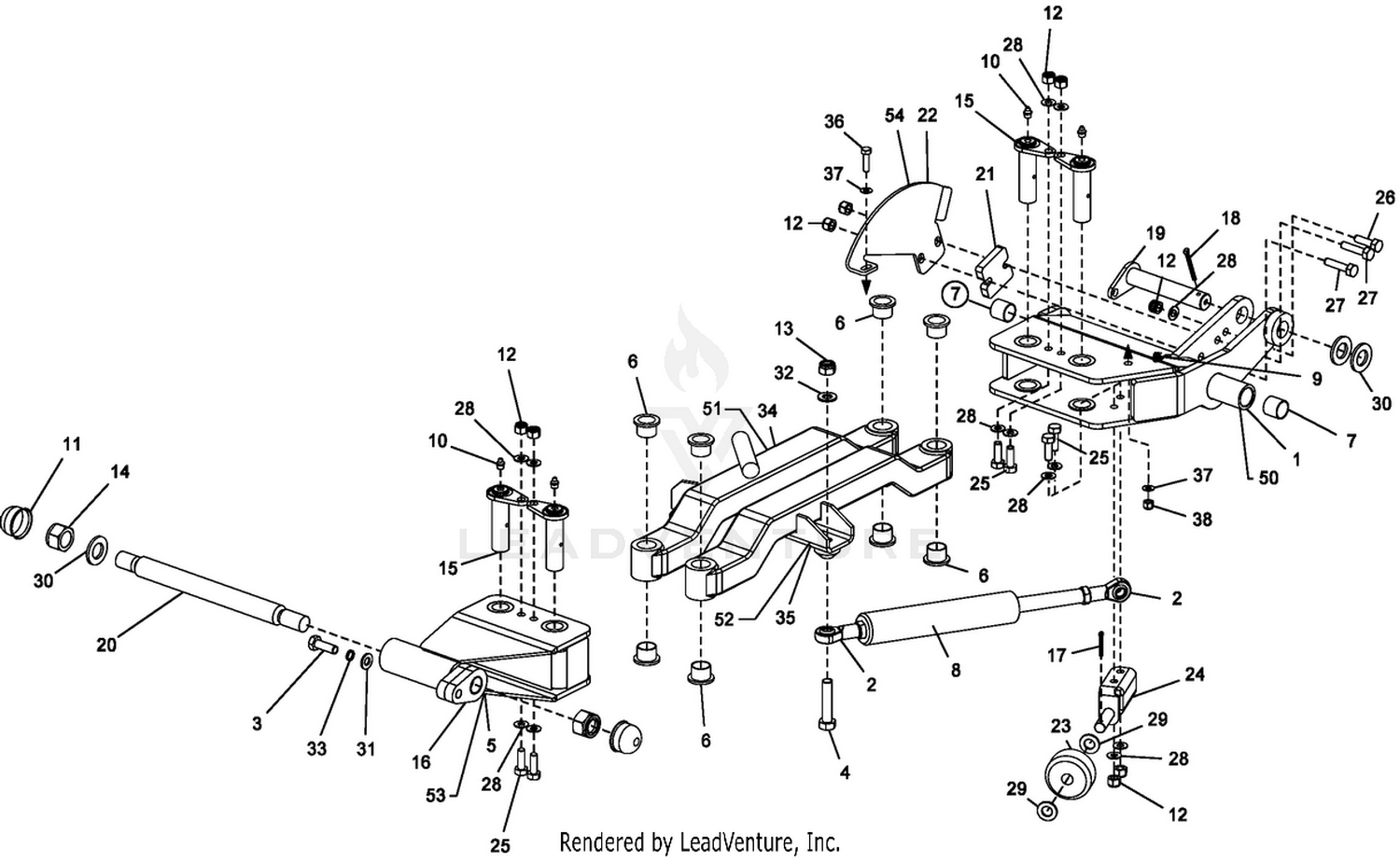

Wing Arms

Wing Arms

Parts (41)

RefPart NumberDescription
1 953150W ARM CLEVIS LH W/A Price: $722.60
2 953831 BEARING ROSE M14*2 FEMALE Price: $146.57
3 ZDH1L035U HEX.HD.SET SCW.M12*35 This part replaces 09551. Price: $1.38
4 09705 BOLT M14*65 Price: $2.96
5 953200W BRACKET HEAD PIVOT LH W/A Price: $478.45
6 953505 BUSH 28*25*23 FLANGED Price: $18.26
7 876066 BUSH Price: $8.34
8 134-3942 SPRING-GAS This part replaces 111-0220. Price: $433.53
9 63-07-027 GREASE NIPPLE 1/8BSP 9OD Price: $1.55
10 10-11-017 GREASE NIPPLE 1/8BSP STR Price: $1.44
11 10-11-100 NUT CAP M24 Price: $1.97
12 09447 NUT M10 X 1.5 NYL INS Price: $1.40
13 09540 NUT - NYLOC M14*2 P TYPE Price: $1.42
14 ZNN1X000U HEX.NUT M24 NYLOC Price: $5.40
15 953552 PIN ARM LINKAGE W/A Price: $51.86
16 63-01-185W RETAINER Price: $48.24
18 74-11-003 SPLIT PIN 5 DIA X 50 Price: $1.39
19 994560 PIN Price: $78.98
20 65-05-120 HEAD PIVOT PIN (30/353MM) Price: $32.70
21 994246 PLATE - CUTOUT SPACER Price: Call Us
22 994247 PLATE - WING CUTOUT BRKT LH Price: $41.85
23 995233 ROLLER DIA 70 NYLON Price: $40.22
24 994215W ROLLER MOUNT W/A Price: $49.44
25 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
26 ZDH1J035U HEX.HD.SET SCW.M10 * 35LG Price: $1.38
27 ZDH1J045U HEX.HD.SET SCW.M10 * 45LG Price: $1.31
28 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
29 09491 WASHER M16 PLAIN Price: $1.42
30 09555 WASHER M24 PLAIN Price: $1.31
31 HY09485 WASHER M12 PLAIN Price: $1.40
32 09488 WASHER PLAIN M14 Price: $1.40
33 09599 WASHER Price: $1.42
34 953530W WING ARM FRONT LH W/A Price: $836.98
35 953520W WING ARM REAR LH W/A Price: $736.37
36 09369 SETSCREW M8 X 30 Price: $1.40
37 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
38 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
50 953155W ARM CLEVIS RH W/A Price: $698.96
51 953535W WING ARM - FRONT RH W/A Price: Call Us
52 953515W WING ARM REAR RH W/A Price: $736.37
53 953160W BRACKET HEAD PIVOT RH W/A Price: $510.80
