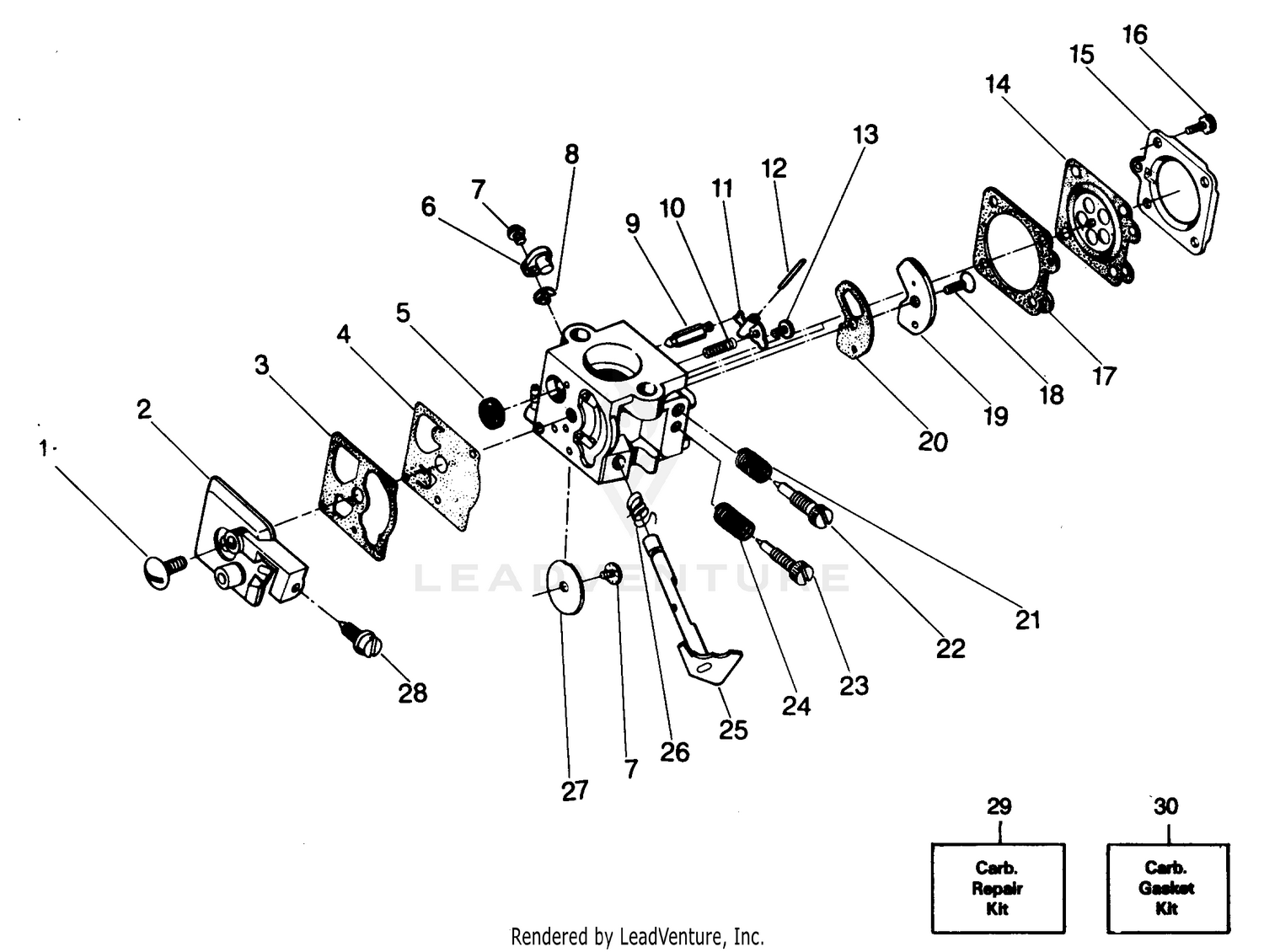

| Ref | Part Number | Description |
|---|
| 1 |
37-4320 |
DISCONTINUED Price: Call Us |
| 1 |
530035017 |
Screw - Pump Cover Price: $0.99 |
| 2 |
28-9650 |
DISCONTINUED Price: Call Us |
| 2 |
530035191 |
Pump Cover Ass'y. (Incl. #28) Price: $3.99 |
| 3 |
504130906 |
GASKET This part replaces 530035164. Price: $1.99 |
| 4 |
504130807 |
PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99 |
| 5 |
530035178 |
Screen - Inlet Price: $1.99 |
| 6 |
530035193 |
Swivel Lever Ass'y. Price: $3.33 |
| 7 |
530035015 |
Screw - Throttle Valve Price: $1.99 |
| 8 |
530035007 |
Clip - Throttle Shaft Price: Call Us |
| 9 |
503117001 |
Needle This part replaces 530035106. Price: $7.99 |
| 10 |
530035188 |
WT-141 - T1 This part replaces 530035139. Price: $1.99 |
| 11 |
505520127 |
Metering Lever This part replaces 530035031. Price: $3.99 |
| 12 |
505520125 |
Pin This part replaces 530035028. Price: $1.99 |
| 13 |
530035016 |
Screw - Metering Lever Pin Price: $2.99 |
| 14 |
503896701 |
DIAPHRAGM This part replaces 530035014. Price: $4.99 |
| 15 |
530035149 |
Cover - Metering Diaphragm Price: $3.33 |
| 16 |
530035153 |
Screw Assembly - Metering Cover & Throttle Shaft Clip Price: $3.33 |
| 17 |
530035151 |
Gasket - Metering Diaphragm Price: $1.99 |
| 18 |
530035137 |
Screw - Circuit Plate Price: $3.33 |
| 19 |
530035042 |
Plate - Circuit Price: $3.33 |
| 20 |
501781301 |
GASKET This part replaces 530035147. Price: $0.45 |
| 21 |
530035036 |
Spring - Hi Speed Needle Price: Call Us |
| 22 |
501782201 |
H-NEEDLE This part replaces 530035142. Price: $6.30 |
| 23 |
530035141 |
Needle - Idle Price: $2.99 |
| 24 |
530035023 |
Spring - Idle Needle Price: $0.99 |
| 25 |
530035192 |
Shaft Assembly - Throttle Price: $3.33 |
| 26 |
530035138 |
Spring - Throttle Return Price: Call Us |
| 27 |
530035133 |
Valve - Throttle Price: $3.33 |
| 28 |
530035156 |
Screw - Idle Adjustment Price: $1.99 |
| 29 |
530035185 |
Kit - Carb Kwik Repair Kit (inc. 3-5,7,9-12,14,17,18,20) Price: $24.99 |
