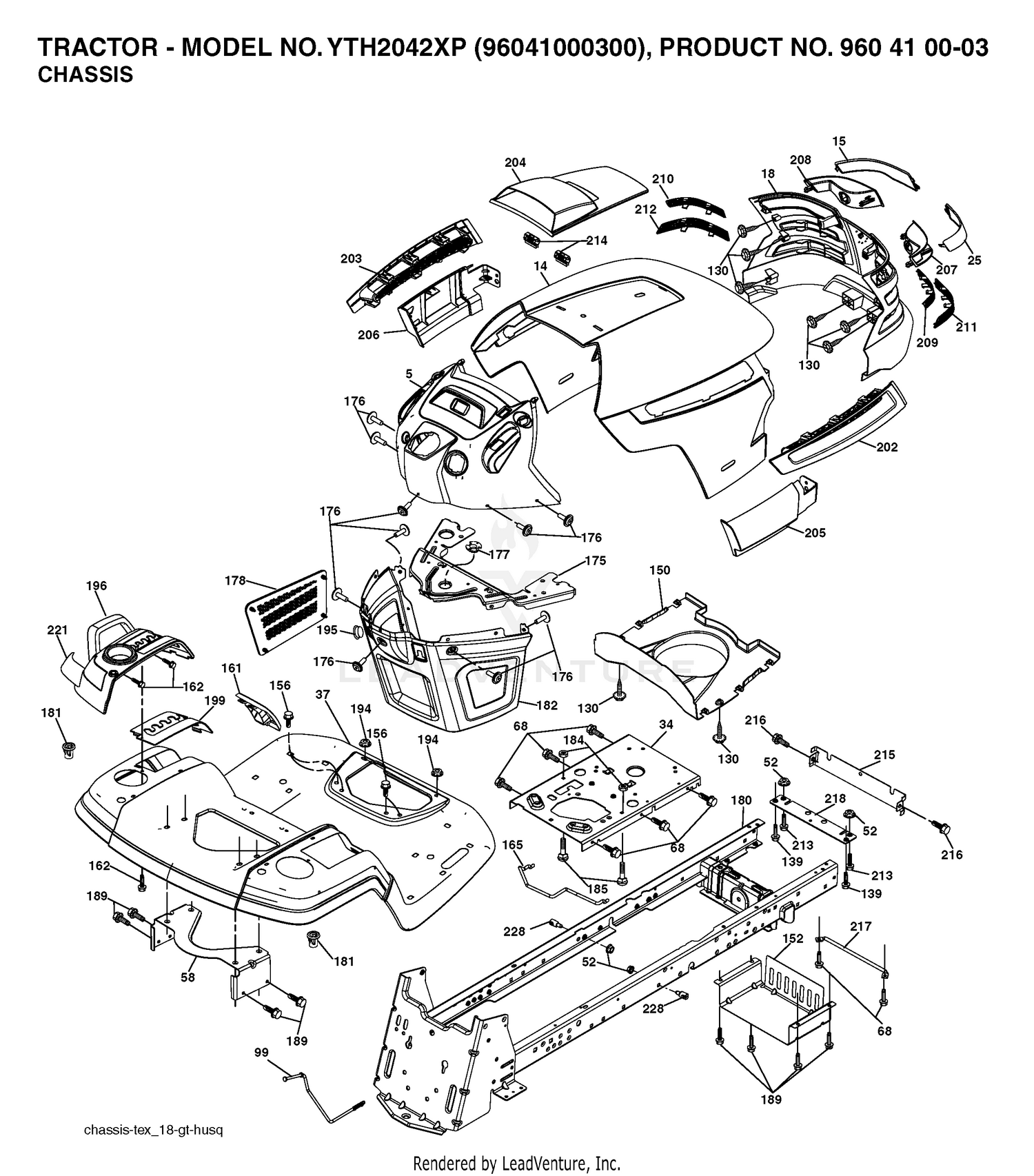

| Ref | Part Number | Description |
|---|
| 1 |
144-4153 |
RESERVOIR-HYDRAULIC This part replaces 120-9077. Price: $784.00 |
| 2 |
323-20 |
SCREW-HH Price: $1.28 |
| 3 |
108-1605 |
BUMPER-RECESS Price: $10.02 |
| 4 |
121-1456 |
SPACER-THIN Price: $5.19 |
| 5 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
532401823 |
DASH.HUSQ.UPR.ELE.SVMD Price: $49.99 |
| 6 |
115-9793 |
BREATHER Price: $53.38 |
| 7 |
136-8531 |
GROMMET This part replaces 104-0790. Price: $3.62 |
| 8 |
114-0002 |
PIPE-STAND Price: $70.85 |
| 9 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 10 |
93-7498 |
PLUG-PLASTIC Price: $25.26 |
| 11 |
237-101 |
O-RING Price: $2.80 |
| 12 |
112-6365 |
DIPSTICK Price: $73.81 |
| 14 |
104-7546 |
TANK STRAINER ASM Price: $170.48 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532401824. Price: $149.99 |
| 15 |
322-7 |
SCREW-HH Price: $0.89 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 17 |
121-1533 |
SPACER-THICK Price: $9.82 |
| 18 |
110-3510 |
NUT-RETAINER Price: $5.77 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM This part replaces 532400297. Price: $129.99 |
| 19 |
121-1557-0P |
MOUNT-TANK This part replaces 121-1557-03. Price: $18.23 |
| 20 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 21 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 22 |
322-13 |
SCREW-HH Price: $2.73 |
| 23 |
353-508 |
PLUG-HH Price: $7.96 |
| 24 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 25 |
120-8810 |
HOSE-STRAINER Price: $38.16 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 26 |
2412-36 |
CLAMP-HOSE This part replaces 115-5436. Price: $1.28 |
| 27 |
114-4920 |
HOSE Price: $6.72 |
| 28 |
121-1521 |
HOSE Price: $15.83 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ This part replaces 532401825. Price: $219.99 |
| 58 |
532194314 |
BRKT.SUPPORT.FNDR/TANK Price: $17.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 99 |
532406642 |
ROD.BYPASS.HYDRO.0510/0610.GT This part replaces 532198253. Price: $14.99 |
| 130 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 139 |
532171873 |
BOLT, SHOULDER 5/16-18 Price: $4.99 |
| 150 |
532198512 |
AIR.DUCT.HOOD.TEX.GT.HUSQ Price: $29.99 |
| 152 |
532196390 |
SHIELD.BROWNING.WTEXLT Price: $17.99 |
| 156 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532401826. Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $22.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
582033001 |
KITS.WELD.CHASSIS.195477X431 This part replaces 532401559. Price: $249.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR This part replaces 532194787. Price: $84.99 |
| 184 |
532195780 |
SPACER.FENDER Price: $5.99 |
| 185 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
532400299 |
RP CONSOLE.ASM.DECKLFT.W/ Price: $69.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532198904. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 215 |
532198043 |
COVER.CHASSIS.FRONT.WE Price: $4.99 |
| 216 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 221 |
532198909 |
REFLECTOR.LH.TEX GT HU Price: $14.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
