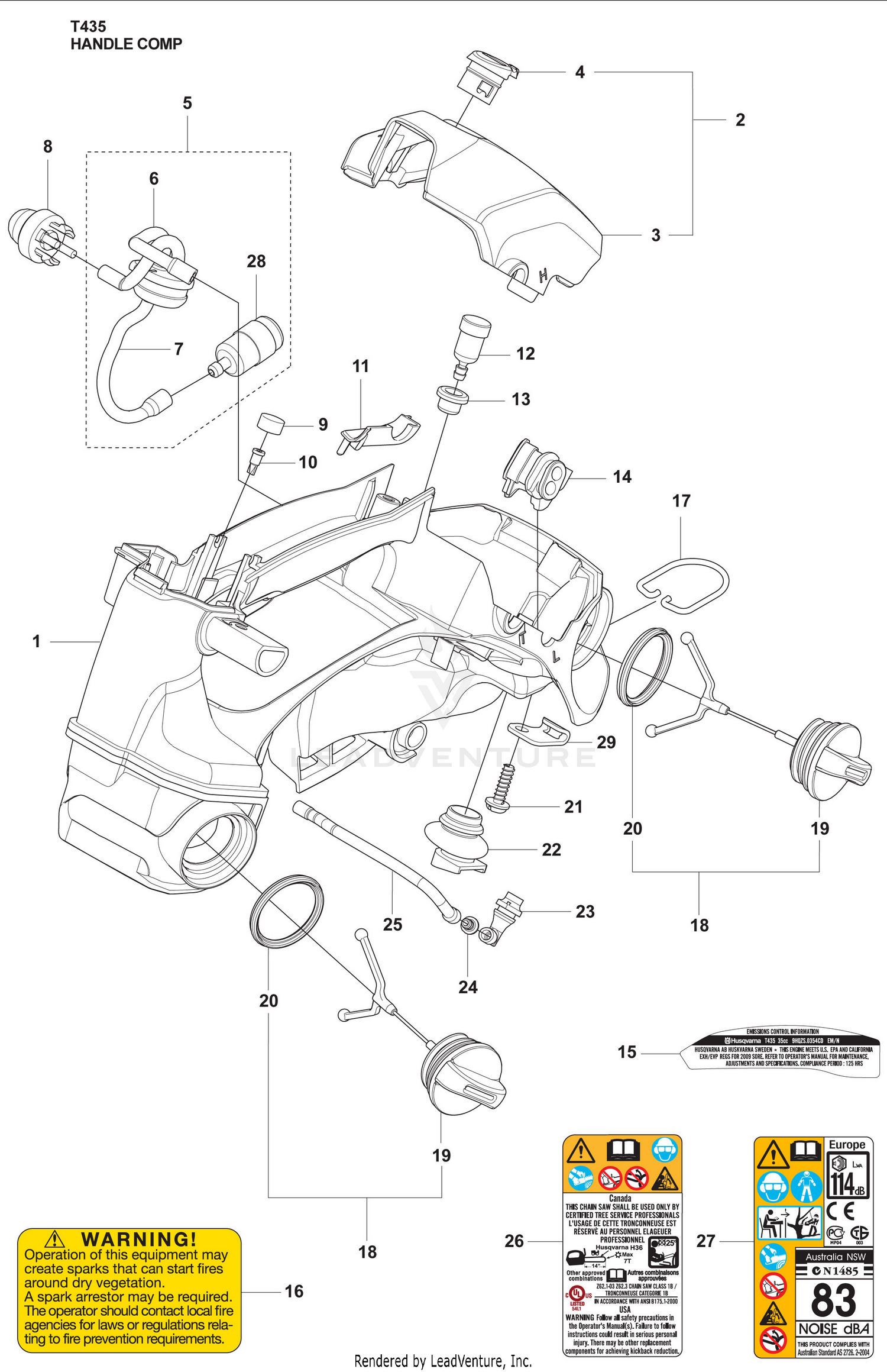

| Ref | Part Number | Description |
|---|
| 1 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 1 |
587495502 |
HANDLE This part replaces 522016401. Price: $54.99 |
| 2 |
33114-020 |
SCREW-HH This part replaces 66-3160. Price: $0.28 |
| 2 |
522017701 |
COVER COMP Price: $14.99 |
| 3 |
522017801 |
COVER CLEANER Price: $22.99 |
| 3 |
60-2160 |
R-CLIP ASM Price: $8.47 |
| 4 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 4 |
522017901 |
KNOB Price: $9.99 |
| 5 |
33095-00 |
WASHER-FLAT This part replaces 48-9580. Price: $0.25 |
| 5 |
579519203 |
FUEL HOSE ASSY This part replaces 522647601. Price: $14.99 |
| 6 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 6 |
579519203 |
FUEL HOSE ASSY This part replaces 522647701. Price: $14.99 |
| 7 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 7 |
579519203 |
FUEL HOSE ASSY This part replaces 522639501. Price: $14.99 |
| 8 |
513789301 |
PRIMARY BTN This part replaces 516972801. Price: $9.99 |
| 8 |
65-5890 |
CAP-END Price: $8.09 |
| 9 |
514235301 |
SEAL This part replaces 516948101. Price: $3.99 |
| 9 |
58-1650 |
ROD-SEAT Price: $110.80 |
| 10 |
516961901 |
AIR CONTROL BREATHER Price: $3.99 |
| 10 |
82-9340 |
LEVEL SWITCH ASM Price: $201.99 |
| 11 |
522017601 |
BRACKET KNOB Price: $5.99 |
| 11 |
65-5870 |
TUBE Price: $20.33 |
| 12 |
513751501 |
BREATHER This part replaces 516965201. Price: $9.99 |
| 13 |
505045401 |
GROMMET This part replaces 520996101. Price: $1.99 |
| 14 |
579606501 |
GUIDE CARB This part replaces 522008801. Price: $9.99 |
| 15 |
46-0670 |
SCREW-PPH Price: $1.89 |
| 15 |
522635501 |
Decal, ECI Price: Call Us |
| 16 |
523071401 |
LABEL Price: $3.99 |
| 17 |
522019401 |
EYELET Price: $12.99 |
| 17 |
58-6820 |
GASKET Price: $13.28 |
| 18 |
574510401 |
TANK CAP ASSY This part replaces 522018201. Price: $19.99 |
| 19 |
574510401 |
TANK CAP ASSY This part replaces 522018301. Price: $19.99 |
| 19 |
60-5580 |
SWITCH-TEMPERATURE Price: $178.50 |
| 20 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 20 |
574510601 |
SEALING CAP This part replaces 522018401. Price: $8.99 |
| 21 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 21 |
521518001 |
SCREW (RPLS 267132210) Price: $2.99 |
| 22 |
522647101 |
PIPE, AIR Price: $3.99 |
| 23 |
522647802 |
PIPE 848CE085R0 This part replaces 522647801. Price: $3.99 |
| 23 |
58-6530 |
HYD OIL DECAL Price: $12.38 |
| 24 |
516950301 |
JOINT Price: $2.99 |
| 24 |
60-0050 |
SPRING-TRAY, SEAT Price: $78.73 |
| 25 |
58-1640 |
PIN-PIVOT, SEAT Price: $59.26 |
| 25 |
595526906 |
FUEL HOSE L=105 ROHS2 This part replaces 522639401. Price: $3.99 |
| 26 |
522635301 |
DECAL (LABEL CAUTION) Price: $4.99 |
| 26 |
68-7850 |
STRIP-SEALING Price: $41.39 |
| 27 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 28 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 28 |
591375401 |
KIT FUEL FILTER This part replaces 503443201. Price: $8.99 |
| 29 |
33094-00 |
WASHER-PLAIN This part replaces 48-8030. Price: $0.25 |
| 30 |
58-1580-03 |
FRAME-SEAT This part replaces 58-1580. Price: $402.10 |
| 31 |
58-9830-03 |
PLATE-SEAT This part replaces 58-9830. Price: $355.56 |
| 32 |
5-0652 |
SPACER This part replaces 26-4840. Price: $5.35 |
| 33 |
33114-030 |
SCREW-HH This part replaces 48-7730. Price: $0.50 |
| 34 |
2412-102 |
CLAMP-R Price: $6.85 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
