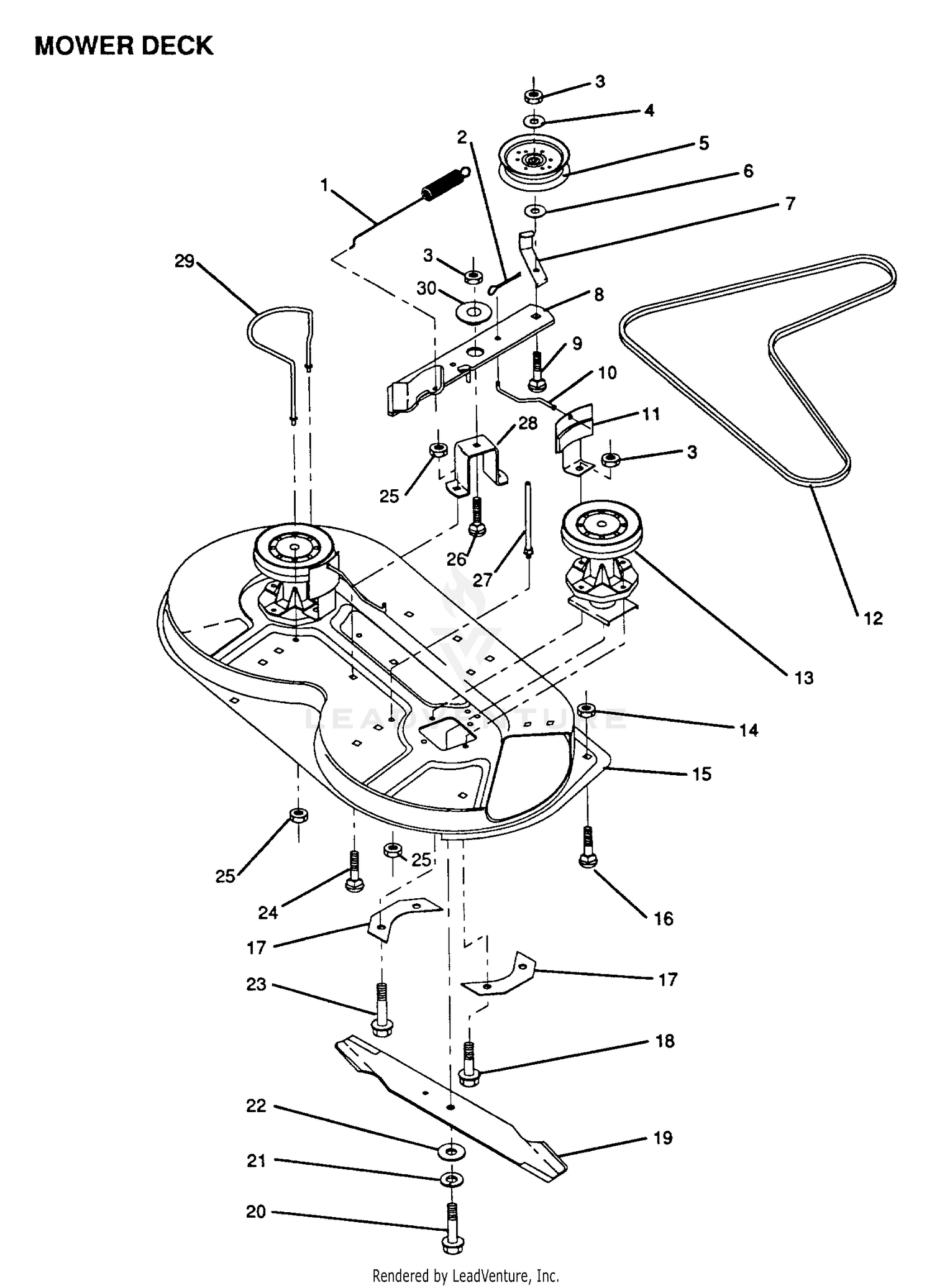

MOWER DECK
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-0000-03 | PULLEY Price: $400.11 |
| 1 | 122028X | SUB= 140064 Price: Call Us |
| 2 | 76020312 | SUB= 3145 Price: Call Us |
| 2 | 99-6937 | FAN Price: $304.08 |
| 3 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 3 | 73680600 | SUB= 73690600 Price: Call Us |
| 4 | 19131412 | WASHER Price: Call Us |
| 5 | 121316X | PULLEY IDLER Price: Call Us |
| 6 | 19132203 | WASHER GT Price: Call Us |
| 7 | 123204X | SUB= 126756X Price: Call Us |
| 7 | 251-318 | BEARING-BALL Price: $16.40 |
| 8 | 104-0001 | SPACER Price: $25.45 |
| 8 | 123702X | IDLER ARM ASS'Y Price: Call Us |
| 9 | 104-0017 | HUB Price: $185.06 |
| 9 | 72110618 | BOLT CARRIAGE Price: Call Us |
| 10 | 122049X | ROD BRAKE Price: Call Us |
| 10 | 323-12 | SCREW-HH Price: $1.14 |
| 11 | 106578X | BRAKE LT Price: Call Us |
| 11 | 63-8410 | WASHER Price: $1.76 |
| 12 | 11-0160 | ROLLER SHAFT SCREW ASM Price: $28.16 |
| 12 | 124293X | BELT.MOWER.79.75 Price: Call Us |
| 13 | 104-1487 | BOLT-CARR Price: $3.93 |
| 13 | 124208X | MANDREL ASS'Y Price: Call Us |
| 14 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 14 | 73680400 | SUB= 73690400 Price: Call Us |
| 15 | 104-1440-03 | SUPPORT-FAN Price: $395.73 |
| 15 | 121787X | SUB= 144727 Price: Call Us |
| 16 | 104-0006-03 | LEVER-FAN, IDLER Price: $61.11 |
| 16 | 72140404 | BOLT Price: Call Us |
| 17 | 100668L | SUPPORT PLATE LT Price: Call Us |
| 17 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 18 | 17490614 | SCREW Price: Call Us |
| 18 | 98-3921 | BELT Price: $16.95 |
| 19 | 95-3857 | SCREW-HSBH Price: $4.09 |
| 20 | 63-8140 | PULLEY-IDLER Price: $47.94 |
| 20 | 74610624 | BOLT.3/8-24X1-1/2 Price: Call Us |
| 21 | 10030600 | SUB= 10040600 Price: Call Us |
| 21 | 104-1447-03 | BRACKET-FAN, SUPPORT Price: $39.88 |
| 22 | 19132012 | WASHER Price: Call Us |
| 22 | 3274-12 | SCREW-HSH Price: $0.81 |
| 23 | 17490620 | SCREW Price: Call Us |
| 23 | 3253-4 | WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 24 | 3234-29 | SCREW-HHF Price: $1.84 |
| 24 | 72140505 | BOLT Price: Call Us |
| 25 | 121-4600 | NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 25 | 73680500 | SUB= 73690500 Price: Call Us |
| 26 | 104-1481-03 | BRACKET-MOUNT, FAN Price: $58.30 |
| 26 | 72110608 | BOLT D Price: Call Us |
| 27 | 98-4561-03 | SHIELD-ALTERNATOR Price: $56.98 |
| 29 | 123673X | GUIDE BELT LH Price: Call Us |
| 29 | 32144-14 | SCREW-HWHTF Price: $4.29 |
| 30 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 31 | 33114-020 | SCREW-HH Price: $0.28 |
| 32 | 322-4 | SCREW-HH Price: $0.35 |
| 33 | 104-0007 | SPACER Price: $39.26 |
| 34 | 322-3 | SCREW-HH Price: $0.79 |
| 35 | 104-1482 | PLATE-WASHER Price: $15.25 |
