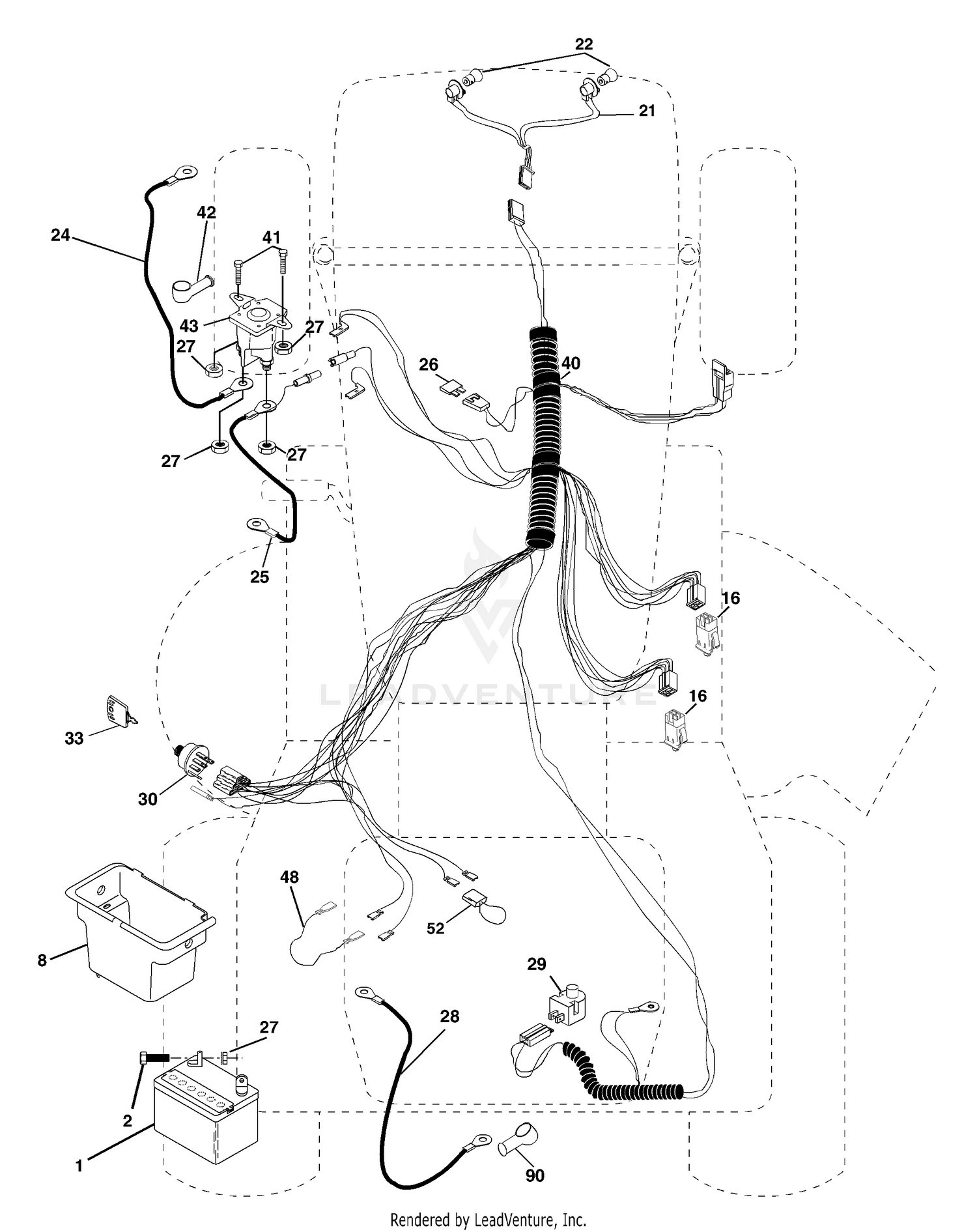

| Ref | Part Number | Description |
|---|
| 1 |
163465 |
Battery Price: Call Us |
| 1 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 2 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 Price: Call Us |
| 3 |
322-3 |
SCREW-HH Price: $0.79 |
| 4 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 5 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
105-0102 |
CABLE-THROTTLE Price: $55.32 |
| 7 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 8 |
176689 |
Box Battery Price: Call Us |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 9 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 10 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 11 |
70-1480 |
RELAY Price: $105.19 |
| 12 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 13 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
321-14 |
SCREW-HH Price: $0.55 |
| 15 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 16 |
176138 |
Switch Interlock Price: Call Us |
| 16 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 17 |
93-7598 |
LEVER-THROTTLE This part replaces 93-7598-03. Price: $39.13 |
| 18 |
233-42 |
KNOB Price: $12.88 |
| 19 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 20 |
105-7528 |
DECAL-INFORMATION, SOLENOID Price: $40.89 |
| 21 |
105-3352 |
HARNESS-WIRE, MAIN Price: $768.43 |
| 21 |
183759 |
Harness Asm Light W/4152j Price: Call Us |
| 22 |
4152J |
Bulb Light #1156 Price: Call Us |
| 22 |
92-7396-03 |
MOUNT-CABLE Price: $12.51 |
| 23 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 24 |
4799J |
Cable Battery 6 Ga. 11"red Price: Call Us |
| 24 |
52-5910 |
RING-RETAINING Price: $3.64 |
| 25 |
146147 |
Cable Battery Price: Call Us |
| 25 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 26 |
175158 |
Fuse 20 AMP Price: Call Us |
| 26 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 27 |
32128-25 |
NUT-HF Price: $3.19 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
4207J |
Cable Ground 6 Ga. 12"black Price: Call Us |
| 28 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 29 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 29 |
121305X |
Switch Plunger Nc Gray Price: Call Us |
| 30 |
175566 |
Switch Ign Price: Call Us |
| 30 |
85-6910 |
DECAL-RATING, NOISE Price: $7.03 |
| 31 |
2412-109 |
CLIP-J Price: $3.82 |
| 32 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 33 |
140401 |
Key Ign Price: Call Us |
| 33 |
94-8146 |
STRIP-FOAM Price: $8.78 |
| 40 |
179720 |
Harness Ign Price: Call Us |
| 41 |
71110408 |
Bolt Blk Fin Hex 1/4-20 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 43 |
178861 |
Solenoid Price: Call Us |
| 48 |
140844 |
Adapter Ammeter Price: Call Us |
| 52 |
141940 |
Protection Wire Loop Price: Call Us |
