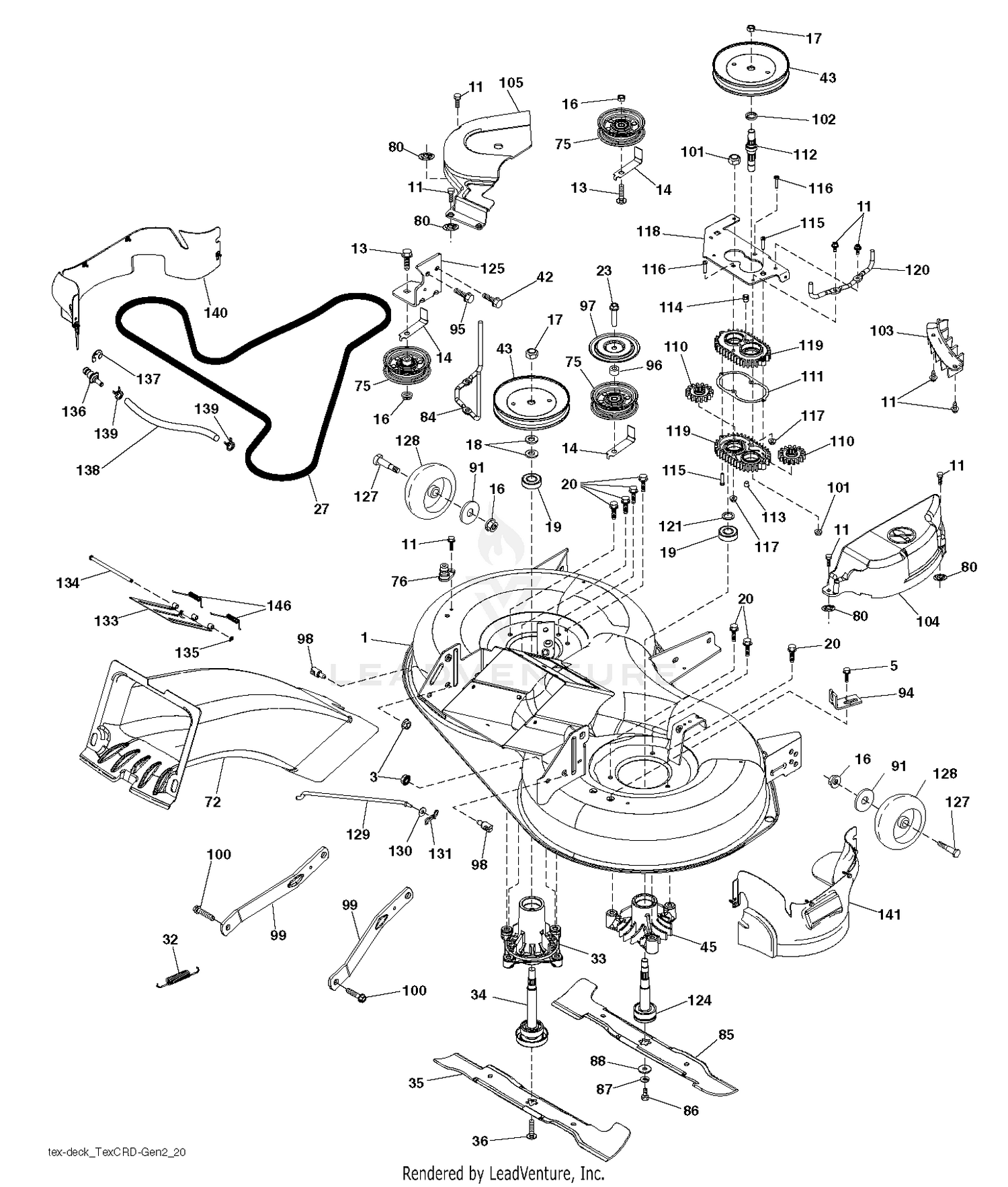

| Ref | Part Number | Description |
|---|
| 1 |
532447900 |
Price: Call Us |
| 1 |
93-7836 |
DECAL-PEDAL, TRACTION Price: $14.38 |
| 2 |
70-2200 |
DECAL Price: $5.09 |
| 3 |
93-7832 |
DECAL-CAUTION Price: $26.67 |
| 4 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 5 |
32128-21 |
NUT-HF Price: $0.39 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 6 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 7 |
3217-6 |
NUT-HEX Price: $1.19 |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
106-5190 |
BATTERY This part replaces 63-9230. Price: $170.85 |
| 10 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 11 |
32103-2 |
NUT-WING Price: $0.68 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 12 |
28-1280 |
DISCONTINUED Price: Call Us |
| 13 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 13 |
70-1180 |
DISCONTINUED Price: Call Us |
| 14 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 16 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 17 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 18 |
107-2918 |
DECAL-DANGER This part replaces 93-7806. Price: $30.43 |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 19 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71 |
| 19 |
532110485 |
BEARING Price: $11.99 |
| 20 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 20 |
95-2746 |
DECAL - STARTING INSTRUCT Price: $33.93 |
| 21 |
92-7800 |
BATTERY COVER ASM This part replaces 24-9740. Price: $65.49 |
| 22 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 23 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 24 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 25 |
2412-61 |
TINNERMAN CLIP Price: $4.93 |
| 26 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 27 |
2412-4 |
CLAMP-R Price: $4.22 |
| 27 |
583581401 |
BELT.97CM.ELECTRIC This part replaces 532445834. Price: $54.99 |
| 28 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 29 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 31 |
93-6680 |
DECAL-DIESEL Price: $19.31 |
| 32 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 32 |
583584001 |
SPRING.DRVE.107&97CM.ELEC.DECK This part replaces 532446205. Price: $9.99 |
| 33 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 33 |
93-7822 |
DECAL-REFUELING Price: $17.17 |
| 34 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 34 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 35 |
2412-74 |
R-CLAMP Price: $2.37 |
| 35 |
532427984 |
BLADE.3N1.LH.CRD.97 Price: $49.99 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 36 |
93-3183 |
TOOL BOX ASM Price: $240.67 |
| 37 |
32128-20 |
NUT-HF Price: $0.99 |
| 38 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 39 |
32128-33 |
NUT-HF Price: $0.25 |
| 41 |
72-3690 |
DISCONTINUED Price: Call Us |
| 42 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 42 |
93-7830 |
DECAL-TORQUE Price: $23.91 |
| 43 |
531170001 |
SERVICE KIT PULLEY PULLEY.MAND This part replaces 532199789. Price: $17.99 |
| 43 |
68-8610-01 |
EXTENSION-FENDER This part replaces 68-8610. Price: $186.20 |
| 44 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 45 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 45 |
532137152 |
HOUSING.MANDREL.44/46" VENT Price: $34.99 |
| 46 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 47 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 48 |
88-0070-01 |
PLATE-FLOOR This part replaces 88-0070. Price: $169.68 |
| 50 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 51 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 52 |
18-2770 |
CABLE-GROUND Price: $47.33 |
| 53 |
92-7801 |
SHIELD-COVER, BATTERY Price: $12.83 |
| 54 |
93-3185 |
COVER ASM This part replaces 93-3184. Price: $144.25 |
| 55 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 56 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 57 |
93-7410-01 |
PANEL-FOOTREST This part replaces 93-7410. Price: $44.33 |
| 58 |
66-3200 |
TREAD-FOOTREST, LH Price: $7.38 |
| 59 |
93-7626-01 |
FENDER-RH This part replaces 93-7626. Price: $177.45 |
| 60 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 61 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 62 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 63 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 72 |
581454103 |
CHUTE.SLOTTED.HOLES.TEX.CRD.II This part replaces 581454101. Price: $79.99 |
| 75 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 80 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 84 |
532400140 |
BELT KEEPER.MANDREL.38"COATED Price: $39.99 |
| 85 |
532427985 |
BLADE.3N1.RH.CRD.97 Price: $49.99 |
| 86 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 87 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 88 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 91 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 94 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 95 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 96 |
583261101 |
SPACER.NORAM.CRD This part replaces 532400271. Price: $4.99 |
| 97 |
583119101 |
SHIELD.IDLER.MOWER.CRD. This part replaces 532182061. Price: $4.99 |
| 98 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 99 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 100 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 101 |
596040601 |
Hardware This part replaces 873680900. Price: $3.99 |
| 102 |
532402511 |
SPACER BEARING Price: $3.99 |
| 103 |
583514601 |
GUARD.FRONT.VENT.97.CRD This part replaces 532436992. Price: $6.99 |
| 104 |
532441479 |
Price: Call Us |
| 105 |
532441478 |
Price: Call Us |
| 110 |
587934801 |
CRD.SPUR.GEAR This part replaces 532415356. Price: $11.99 |
| 111 |
583514001 |
GASKET.GEARCASE.97.CRD (2 2) This part replaces 532436979. Price: $4.99 |
| 112 |
583571601 |
SHAFT.CRD.GEARCASE.ADAPTER This part replaces 532443852. Price: $14.99 |
| 114 |
588170501 |
VENT.BREATHER.1/8 NPT This part replaces 532438534. Price: $8.99 |
| 115 |
583608901 |
SCREW.TORX#10-24X1 This part replaces 818031016. Price: $2.99 |
| 116 |
594976601 |
Bolts This part replaces 872110414. Price: $1.99 |
| 117 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 118 |
583514401 |
ARM.CLUTCHING.97.TEX This part replaces 532436989. Price: $17.99 |
| 119 |
583527601 |
GEAR.CASE.SUBASM. This part replaces 532438166. Price: $59.99 |
| 120 |
583514501 |
KEEPER.BELT.RH.MANDREL.97.CRD This part replaces 532436991. Price: $6.99 |
| 121 |
583514101 |
WASHER.687.I.D.X.1 OD.X.062THK This part replaces 532436985. Price: $2.99 |
| 124 |
583514201 |
MANDREL SHAFT NON/GREASEABLE This part replaces 532436986. Price: $37.99 |
| 125 |
583514801 |
BRACKET.IDLER.CHASSIS.97.CRD This part replaces 532436994. Price: $8.99 |
| 127 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 128 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 129 |
583568101 |
ROD.SWAY.97&107.CRDI&II This part replaces 532443237. Price: $17.99 |
| 130 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 131 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 133 |
583505301 |
DOOR.MULCH This part replaces 532435538. Price: $11.99 |
| 134 |
583507401 |
PIN.HINGE This part replaces 532435861. Price: $5.99 |
| 135 |
532437988 |
E-RING.5/16" Price: $7.99 |
| 136 |
583544201 |
WASHOUT.PORT.REMOTE.HOOKUP This part replaces 532439639. Price: $3.99 |
| 137 |
812000029 |
RING CLIP Price: $3.99 |
| 138 |
587924812 |
HOSE 3/8ID, RUBBER 12" This part replaces 532440743. Price: $2.99 |
| 139 |
532440742 |
HOSE.3/8.CLAMP (2 2) Price: $2.99 |
| 140 |
583597801 |
SUBASM.TX.CRD.97CM.LH.FR.GUARD This part replaces 532448632. Price: $55.99 |
| 141 |
583596401 |
SUBASM.TEX.CRD.97CM.RH.FRN.GRD This part replaces 532448529. Price: $69.99 |
| 146 |
583582001 |
SPRING.EZ.MULCH.DOOR This part replaces 532445896. Price: $2.99 |
