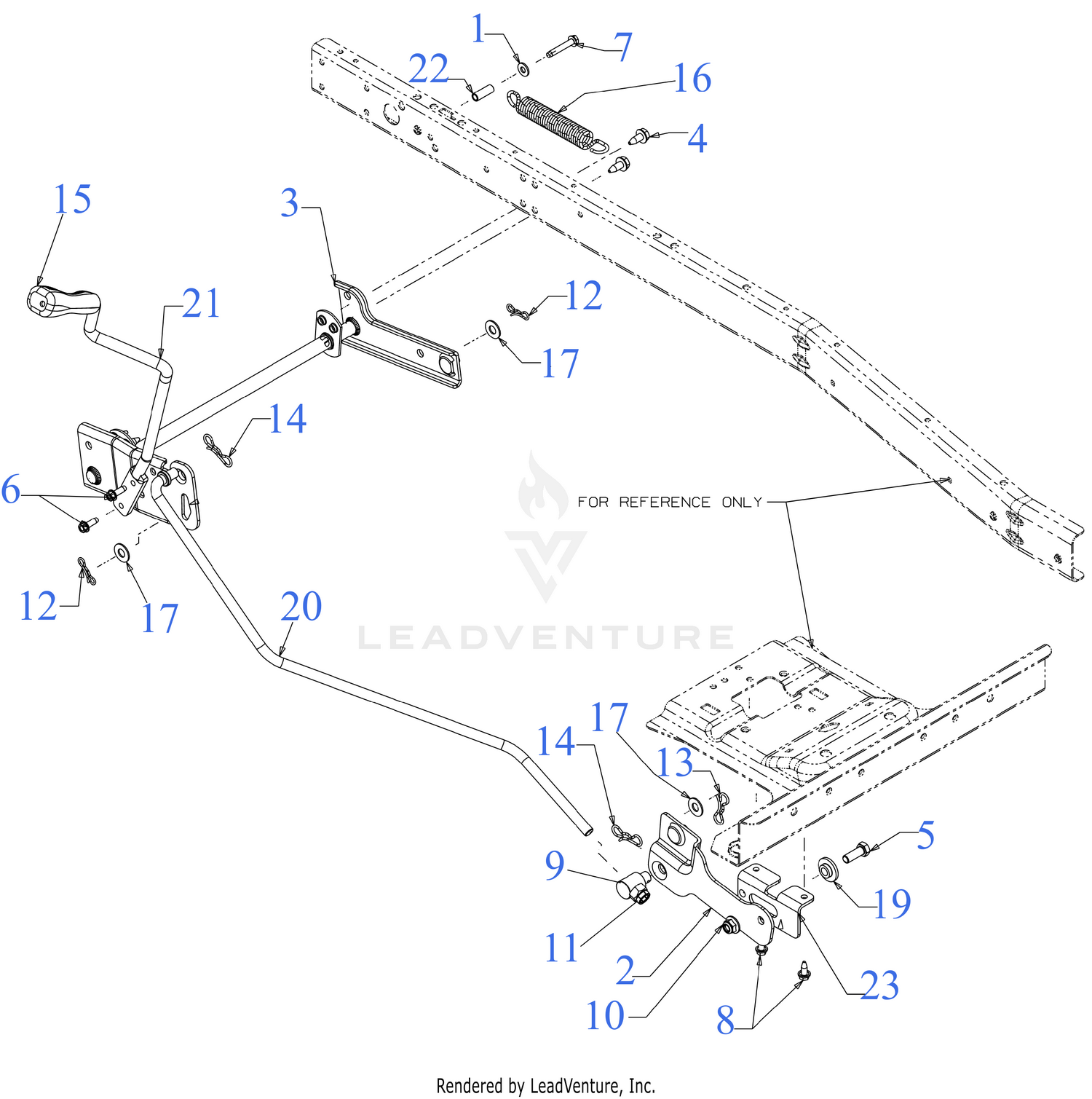

| Ref | Part Number | Description |
|---|
| 1 |
1751 |
FLAT WASHER 1/4 SAE ZINC Price: $0.06 |
| 2 |
683-04757-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Price: $22.36 |
| 3 |
683-05060-0637 |
LIFT SHAFT ASSEMBLY (POWDER BLACK) Price: $37.25 |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 5 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 6 |
710-0642 |
SCREW 1/4-20 x .750 Price: $4.05 |
| 7 |
710-0778 |
SCREW 1/4-20 x 1.50" Price: $3.90 |
| 8 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 9 |
711-05690C |
FERRULE Price: $9.67 |
| 10 |
712-04065 |
NUT Price: $3.68 |
| 11 |
712-04243 |
NUT Price: $3.52 |
| 12 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 13 |
714-04043 |
PIN:COTTER Price: $4.24 |
| 14 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 15 |
720-0311 |
HANDLE GRIP Price: $13.26 |
| 16 |
732-04692 |
EXTENSION SPRING .85 x 5.91 Price: $8.33 |
| 17 |
736-0300 |
FLAT WASHER Price: $3.93 |
| 19 |
938-0347 |
SHOULDER SPACER Price: $8.93 |
| 20 |
747-05511 |
LIFT ROD Price: $23.25 |
| 21 |
747-05576 |
Deck Lift Rod This part replaces 747-05576-0637. Price: $21.09 |
| 22 |
750-0566A |
SPACER Price: $9.17 |
