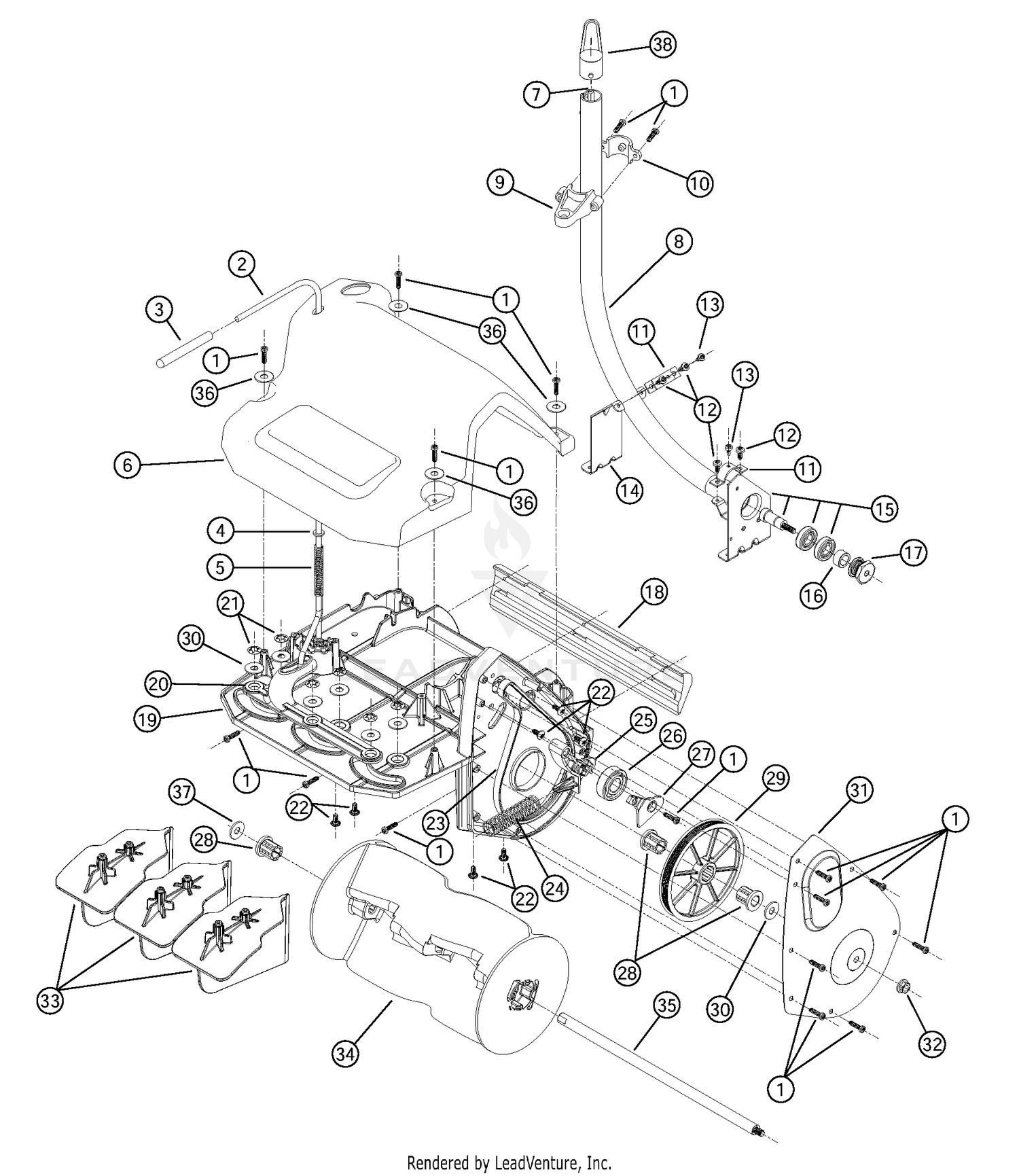

| Ref | Part Number | Description |
|---|
| 1 |
791-181345 |
Screw Price: $3.75 |
| 2 |
791-00000 |
CONT:VANE:THRWR:SN Not Available Price: |
| 3 |
791-00001 |
FOAM GRIP Not Available Price: |
| 4 |
736-0142 |
Flat Washer, 9/32 x 1/2 x 1/16 This part replaces 753-04079. Price: $3.95 |
| 5 |
791-00002 |
SPRING:CONT:VANE:THRW Not Available Price: |
| 6 |
753-04447 |
COVER:ATCH:SNOWTHWR Not Available This part replaces 791-00003. Price: |
| 7 |
791-181852 |
Flex Shaft This part replaces 753-04327. Price: $51.93 |
| 8 |
791-181352 |
ASSEMBLY, DRIVE HOUSING Not Available Price: |
| 9 |
791-00004 |
CLAMP, (LH) Not Available Price: |
| 10 |
791-00005 |
CLAMP, (RH) Not Available Price: |
| 11 |
791-181355 |
CLAMP Not Available Price: |
| 12 |
791-181353 |
SCR, SHEET Not Available Price: |
| 13 |
791-181607 |
SCREW, #10-16 x 3/8" Not Available Price: |
| 14 |
791-00006 |
BRACKET, DRIVE HOU Not Available Price: |
| 15 |
791-00007 |
BRACKET, DRIVE HOU Not Available Price: |
| 16 |
791-00008 |
SPACER Not Available Price: |
| 17 |
791-00009 |
PULLEY:DR: Not Available Price: |
| 18 |
791-00010 |
SCRAPER Not Available Price: |
| 19 |
753-04446 |
HOUSING:ATCH:SNOWTHWR Not Available This part replaces 791-00011. Price: |
| 20 |
791-00012 |
VANE CONTROL Not Available Price: |
| 21 |
791-00013 |
PUSH NUT Not Available Price: |
| 22 |
791-181372 |
SCREW, SHEET METAL/P Not Available Price: |
| 23 |
791-00014 |
Drive Belt Price: $33.82 |
| 24 |
791-00015 |
SPRING Not Available Price: |
| 25 |
791-00016 |
IDLER ARM Not Available Price: |
| 26 |
941-0600 |
BALL BEARING This part replaces 753-04081. Price: $23.34 |
| 27 |
791-00017 |
KEEPER Not Available Price: |
| 28 |
741-0503 |
Hex Flange Brg. .504" I.D. This part replaces 753-04082. Price: $2.93 |
| 29 |
791-00018 |
DRIVEN PULLEY Not Available Price: |
| 30 |
736-0159 |
Washer This part replaces 753-04080. Price: $3.71 |
| 31 |
791-00019 |
Belt Case Cover Price: Call Us |
| 32 |
753-3004A |
Flange Lock Nut Price: Call Us |
| 33 |
791-00020 |
VANE Not Available Price: |
| 34 |
791-00021 |
SNOWTHOWER AUGE Not Available Price: |
| 35 |
791-00022 |
ROTOR SHAFT Not Available Price: |
| 36 |
791-182409 |
Washer Price: $4.04 |
| 37 |
791-182910 |
Washer Price: $6.59 |
