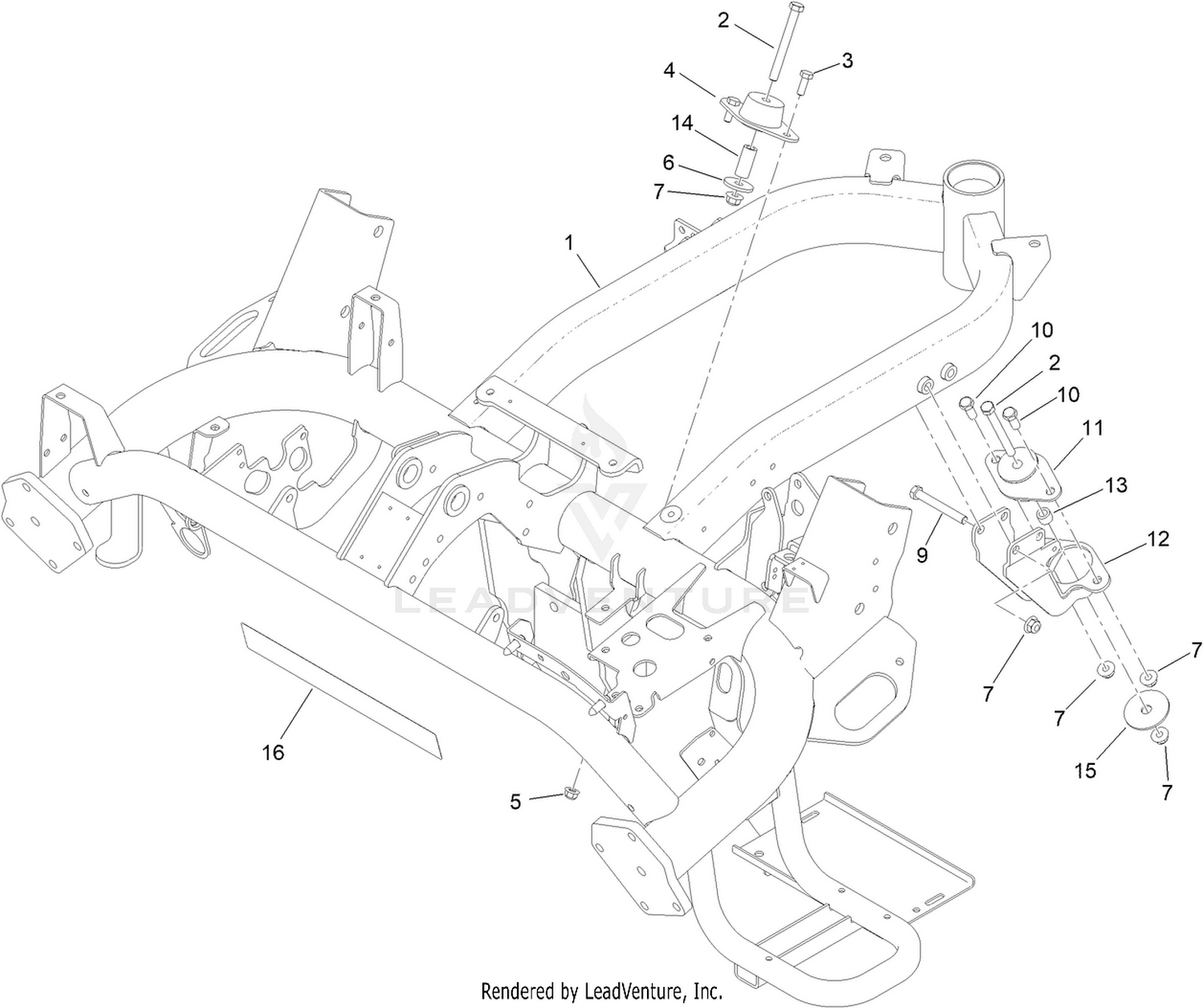

Frame Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140-5297-01 | FRAME ASM Price: $3,853.16 |
| 2 | 323-15 | SCREW-HH Price: $1.53 |
| 3 | 322-4 | SCREW-HH Price: $0.35 |
| 4 | 121-9076 | MOUNT-ENGINE Price: $37.76 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 6 | 117-9330 | SPACER Price: $3.19 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 9 | 323-14 | SCREW-HH Price: $1.34 |
| 10 | 323-5 | SCREW-HH Price: $0.41 |
| 11 | 131-1821 | MOUNT-ENGINE Price: $105.39 |
| 12 | 117-9256-01 | MOUNT-ENGINE, REAR Price: $85.05 |
| 13 | 52-2480 | SPACER-WHEEL Price: $5.89 |
| 14 | 104-0151 | SPACER Price: $6.31 |
| 15 | 87-5100 | WASHER-SNUBBING Price: $3.46 |
