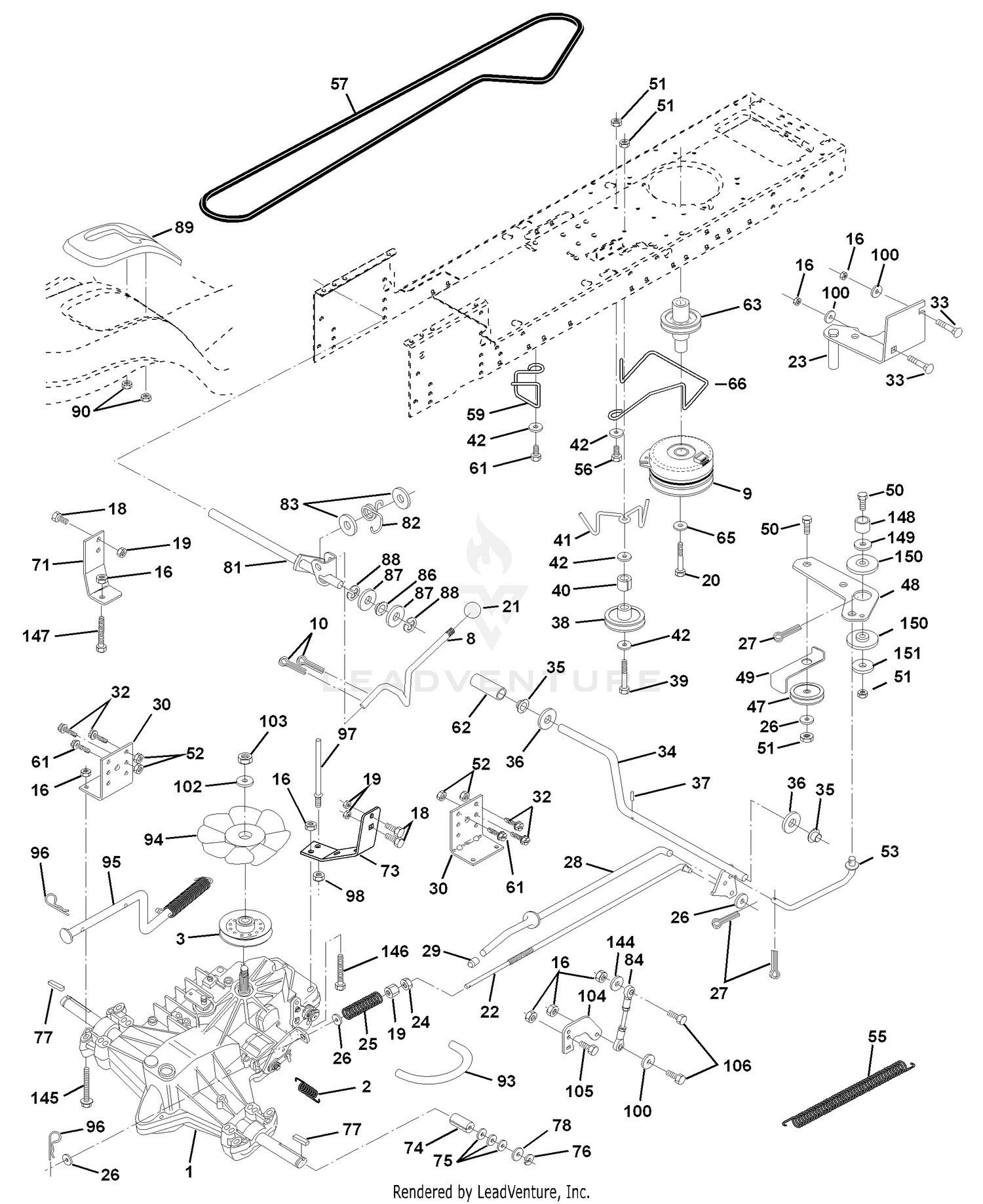

| Ref | Part Number | Description |
|---|
| 1 |
532150071 |
TRANSAXLE ASSEMBLY Price: $974.57 |
| 2 |
532142431 |
SPRING BRAKE Price: $4.99 |
| 3 |
532143995 |
PULLEY, TRANSAXLE Price: $27.99 |
| 8 |
532154792 |
ROD SHIFT FENDER Price: $12.99 |
| 9 |
532160889 |
ELECTRIC CLUTCH Price: $249.99 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 22 |
532145627 |
ROD BRAKE HYDRO Price: $169.99 |
| 23 |
532154978 |
BRACKET, ASM CLUTCH MTG Price: $5.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 34 |
532155071 |
SHAFT, FOOT PEDAL Price: $19.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 41 |
532165838 |
KEEPER.BELT.IDLER.FLAT This part replaces 532154777. Price: $4.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 57 |
532161588 |
BELT.V.GROUND.DRIVE.HYDRO Price: $54.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $17.99 |
| 61 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 62 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 63 |
532161400 |
ENGINE PULLEY Price: $54.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
532161488 |
BELT KEEPER Price: $4.99 |
| 71 |
532140158 |
STRAP LH TORQUE Price: $5.99 |
| 73 |
532156347 |
STRAP TORQUE RH HYDRO Price: $4.99 |
| 74 |
532121199 |
SPACER SPLIT Price: $3.12 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532161079 |
SHAFT Price: $44.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532161901 |
TIE ROD Price: $49.99 |
| 86 |
532157480 |
BUSHING Price: $3.99 |
| 87 |
819212016 |
WASHER D Price: $4.99 |
| 88 |
812000008 |
KLIP RING Price: $2.99 |
| 89 |
532164890 |
SHIFT CONSOLE BLACK This part replaces 532158388. Price: $19.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 93 |
532142564 |
LINE FUEL HYD 4" Price: $3.99 |
| 94 |
532140462 |
FAN 7" HYDRO Price: $9.99 |
| 95 |
532167696 |
CONTROL.ASM.BYPASS.HYDRO.99 This part replaces 532144643. Price: $9.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 97 |
532140469 |
KEEPER BELT RH Price: $2.99 |
| 98 |
873510600 |
NUT Price: $4.99 |
| 100 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 102 |
532141322 |
WASHER Price: $3.99 |
| 103 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 104 |
532140156 |
CONTROL ARM Price: $4.99 |
| 105 |
871070516 |
SCREW Price: $3.99 |
| 106 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 144 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 145 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 146 |
874490536 |
Bolt Hex Flghd 5/16-18 x 2-1/4 Price: $4.99 |
| 147 |
874490524 |
Bolt Hex Flghd 5/16-18 x 1-1/2 Price: $2.42 |
| 148 |
532159103 |
GUIDE Price: $3.99 |
| 149 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 150 |
532150935 |
BUSHING NYLON COLLERED Price: $3.99 |
