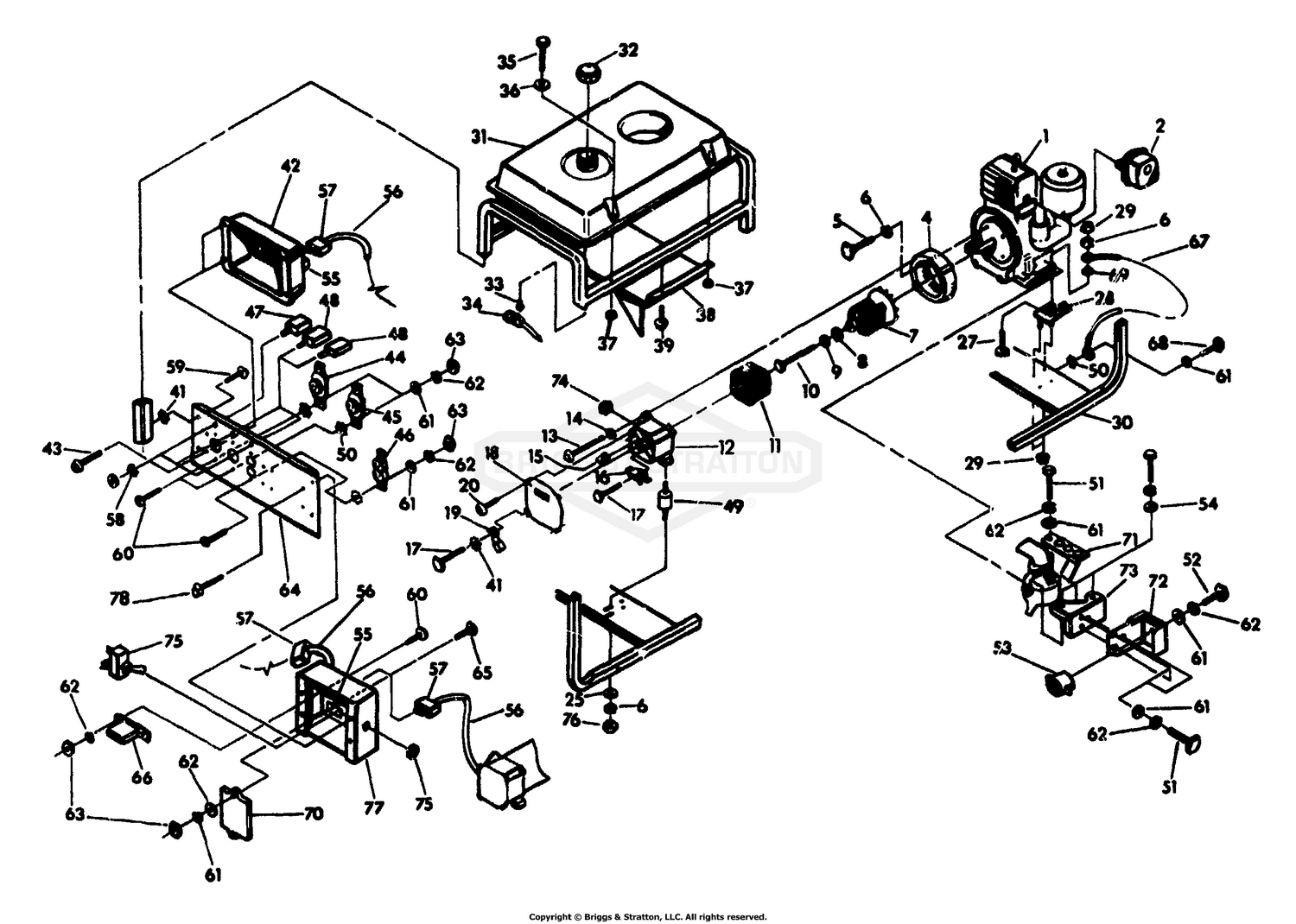

| Ref | Part Number | Description |
|---|
| 1 |
5025010X18SM |
BOLT, 1/4-20 This part replaces 79589. Price: $2.97 |
| 2 |
82876 |
Briggs & Stratton Muffler Price: Call Us |
| 4 |
66365GGS |
HOUSING, Engine Adapter This part replaces 66365G. Price: Call Us |
| 6 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 7 |
74716 |
Rotor Assembly Price: Call Us |
| 8 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 9 |
67451 |
Special Washer Price: Call Us |
| 10 |
75431GS |
CAPSCREW, Hex Head This part replaces 75431. Price: Call Us |
| 11 |
79636 |
Stator Assembly Price: Call Us |
| 12 |
66825A |
Rear Bearing Carrier Price: Call Us |
| 13 |
66449D |
M6-1.0 x 130mm Bolt Price: Call Us |
| 14 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 15 |
66850GS |
ASSY, RECTIFIER, BRIDGE This part replaces 66850. Price: Call Us |
| 16 |
66386GS |
ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52 |
| 17 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 18 |
67025 |
Bearing Carrier Cover Price: Call Us |
| 19 |
25433 |
Grounding Lug Price: Call Us |
| 20 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 27 |
76222GS |
PPHMS, M8 - 1.25 x 40 This part replaces 76222. Price: $3.15 |
| 28 |
70642GS |
MOUNT, Vibration 45°. This part replaces 70642. Price: $27.27 |
| 29 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 30 |
77840 |
Cradle Assembly Price: Call Us |
| 31 |
77374 |
Fuel Tank Price: Call Us |
| 32 |
78824 |
Fuel Tank Cap Price: Call Us |
| 33 |
192980GS |
Kit, Valve This part replaces 78299. Price: $16.43 |
| 34 |
7078298YP |
PULLEY CATCHER HZT/ This part replaces 78298. Price: $168.51 |
| 35 |
78831 |
M6-1.0 x 55 Hex Screw Price: Call Us |
| 36 |
78830GS |
WSHR, SPCL, BLK This part replaces 78830. Price: $1.35 |
| 37 |
77395GS |
NUT, FLANGE LOCK - M6 This part replaces 77395. Price: $3.09 |
| 38 |
78951A |
Heat Shield Price: Call Us |
| 39 |
56892GS |
CRIMPTITE, 10-24 X 3/8 This part replaces 56892. Price: $2.79 |
| 41 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 42 |
81919GS |
PANEL, Control, Back, Plastic This part replaces 81919. Price: $109.99 |
| 43 |
82308GS |
SCREW, Self Tapping, STC 3 x 18 This part replaces 82308. Price: $2.59 |
| 46 |
68759GS |
OUTLET, 20A,120V This part replaces 68759. Price: $23.24 |
| 47 |
706178 |
BREAKER-CIRCUIT 30A This part replaces 75207-A. Price: $32.31 |
| 48 |
209872GS |
BREAKER-CIRCUIT 20A This part replaces 75207. Price: $9.29 |
| 49 |
82857GS |
MOUNT, VIBRATION This part replaces 82857. Price: $10.31 |
| 50 |
5023365YP |
TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73 |
| 51 |
23965GS |
SCREW, #8-32 X 3/8 This part replaces 23965. Price: $2.49 |
| 52 |
5022153FS |
MOUNT This part replaces 22153. Price: $4.98 |
| 53 |
76220 |
Idle Control Coil Price: Call Us |
| 54 |
1910531SM |
WASHER, Rivet, 3/16 This part replaces 23897. Price: $3.47 |
| 55 |
22694GS |
HOUSING, Receptacle This part replaces 22694. Price: $5.44 |
| 56 |
82860 |
Black Sleeving Price: Call Us |
| 57 |
22695GS |
FASTEN, On Tab Housing 6P This part replaces 22695. Price: $3.20 |
| 58 |
82881GS |
WASHER, 7/16" Int Lock This part replaces 82881. Price: Call Us |
| 59 |
75494 |
Self-drilling Screw Price: $30.20 |
| 60 |
75475 |
M4-0.7 x 10mm Screw Price: $24.95 |
| 61 |
38150GS |
WASHER This part replaces 38150. Price: $2.49 |
| 62 |
22264 |
No. 8 Lock Washer Price: $8.99 |
| 63 |
51715GS |
NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30 |
| 64 |
81897 |
Control Panel Price: Call Us |
| 65 |
80077GS |
SCREW This part replaces 80077. Price: $3.81 |
| 66 |
77278E |
Idle Assembly Transformer Price: Call Us |
| 67 |
10953621 |
Ground Wire Price: Call Us |
| 68 |
24911GS |
TRILOBLAR, 8-32 x 3/8 This part replaces 24911. Price: $2.64 |
| 69 |
27482GS |
WASHER, 5/16" Ext. Shakeproof This part replaces 27482. Price: $2.19 |
| 70 |
67632DGS |
ASSY, PCB, IDLE CNTRL This part replaces 67632D. Price: $144.99 |
| 71 |
78503A |
Throttle Plate Price: Call Us |
| 72 |
78502A |
Bracket Adjustment Price: Call Us |
| 73 |
73720A |
Bracket Mounting Price: Call Us |
| 74 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 75 |
55869 |
Toggle Switch Price: Call Us |
| 76 |
25244GS |
NUT, 5/16-18 HEX This part replaces 25244. Price: $2.59 |
| 77 |
82856 |
Wire Box Price: Call Us |
