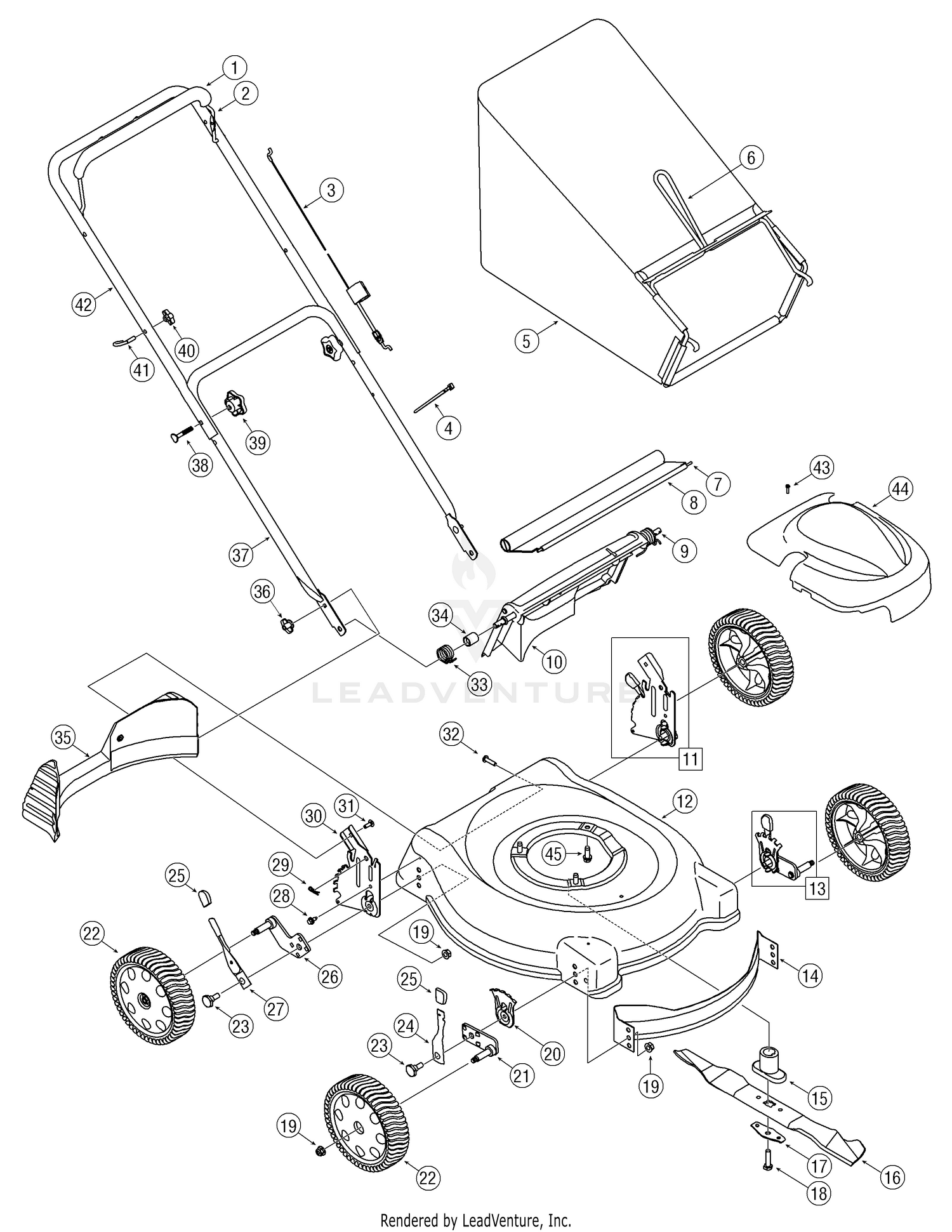

| Ref | Part Number | Description |
|---|
| 1 |
731-04204 |
Blade Control Handle Cover Price: $10.22 |
| 2 |
747-1161A |
Blade Control Handle Price: $10.27 |
| 3 |
946-1130 |
Control Cable 40" This part replaces 746-1130. Price: $16.01 |
| 5 |
964-04007A |
Grass Bag This part replaces 664-04011. Price: $114.46 |
| 6 |
747-04080A |
Grass Bag Frame This part replaces 747-04080. Price: $52.39 |
| 7 |
732P0700 |
TRAILSHIELD WIRE This part replaces 732-0700. Price: $3.85 |
| 8 |
731-04998 |
Trailshield Price: $27.86 |
| 9 |
753-06366 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 747-04035. Price: |
| 10 |
753-06366 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 731-04134A. Price: |
| 11 |
753-05994 |
KIT-HANDLE BRACKET Not Available This part replaces 687-02068. Price: |
| 13 |
987-02074B |
Front Height Adjuster Assembly - RH This part replaces 687-02074A. Price: $35.46 |
| 13 |
987-02075B |
Front Height Adjuster Assembly - LH Not Available This part replaces 687-02075A. Price: |
| 14 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002B. Price: |
| 15 |
748-0377E |
Blade Adapter This part replaces 748-0377C. Price: $16.91 |
| 16 |
942-0741A |
Blade This part replaces 742-0741. Price: $27.55 |
| 17 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 18 |
710-1257 |
HH Cap Screw, 3/8-24 x 2.50 Price: $7.02 |
| 19 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 20 |
787-01290A |
Height Adjustment Plate This part replaces 787-01290. Price: $10.58 |
| 21 |
987-02076A |
PIVOT ARM ASSEMBLY (RH) Not Available This part replaces 687-02076A. Price: |
| 21 |
987-02077A |
Pivot Arm Assembly - LH This part replaces 687-02077A. Price: $15.25 |
| 22 |
753-08175 |
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) This part replaces 734-04014B. Price: $37.85 |
| 23 |
738-0507B |
Shoulder Screw .500 x .434 Price: $3.86 |
| 24 |
94832 |
Spring Lever This part replaces 732-0404. Price: $9.48 |
| 25 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 26 |
987-02070A |
Pivot Arm Assembly - LH This part replaces 687-02070A. Price: $18.36 |
| 26 |
987-02071A |
Pivot Arm Assembly - RH This part replaces 687-02071A. Price: $18.36 |
| 27 |
732-02078 |
Spring Lever Price: Call Us |
| 28 |
710-1652 |
TT Screw 1/4-20 x .625 Price: $3.86 |
| 29 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 30 |
753-05994 |
KIT-HANDLE BRACKET Not Available This part replaces 787-01291. Price: |
| 31 |
710-0703 |
Carriage Bolt, 1/4-20 Price: $3.66 |
| 32 |
710-04371 |
HL Screw 1/4-15 x 1.00 Price: $6.01 |
| 33 |
732-04089A |
Torsion Spring - LH Price: $7.00 |
| 33 |
732-04090A |
Torsion Spring - RH Price: $6.66 |
| 34 |
950-04162 |
SPACER Not Available This part replaces 750-04162. Price: |
| 35 |
731-04150C |
REAR BAFFLE 21" Not Available Price: |
| 36 |
712-0397A |
WING NUT This part replaces 712-0397. Price: $3.71 |
| 37 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928A. Price: $29.67 |
| 38 |
710-1174 |
Carriage Bolt, 5/16-18 x 2 Price: $6.28 |
| 39 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 40 |
720-0279 |
Handle Knob Price: $3.93 |
| 41 |
710-1205 |
Eye Bolt Price: $3.53 |
| 42 |
749-1092A |
Upper Handle Price: $42.79 |
| 43 |
710-1256 |
HL Screw #8-18 x 1.25 Price: $5.25 |
| 44 |
BS-790037 |
Engine Shrd B&S Quantum This part replaces 751B699869. Price: $81.15 |
