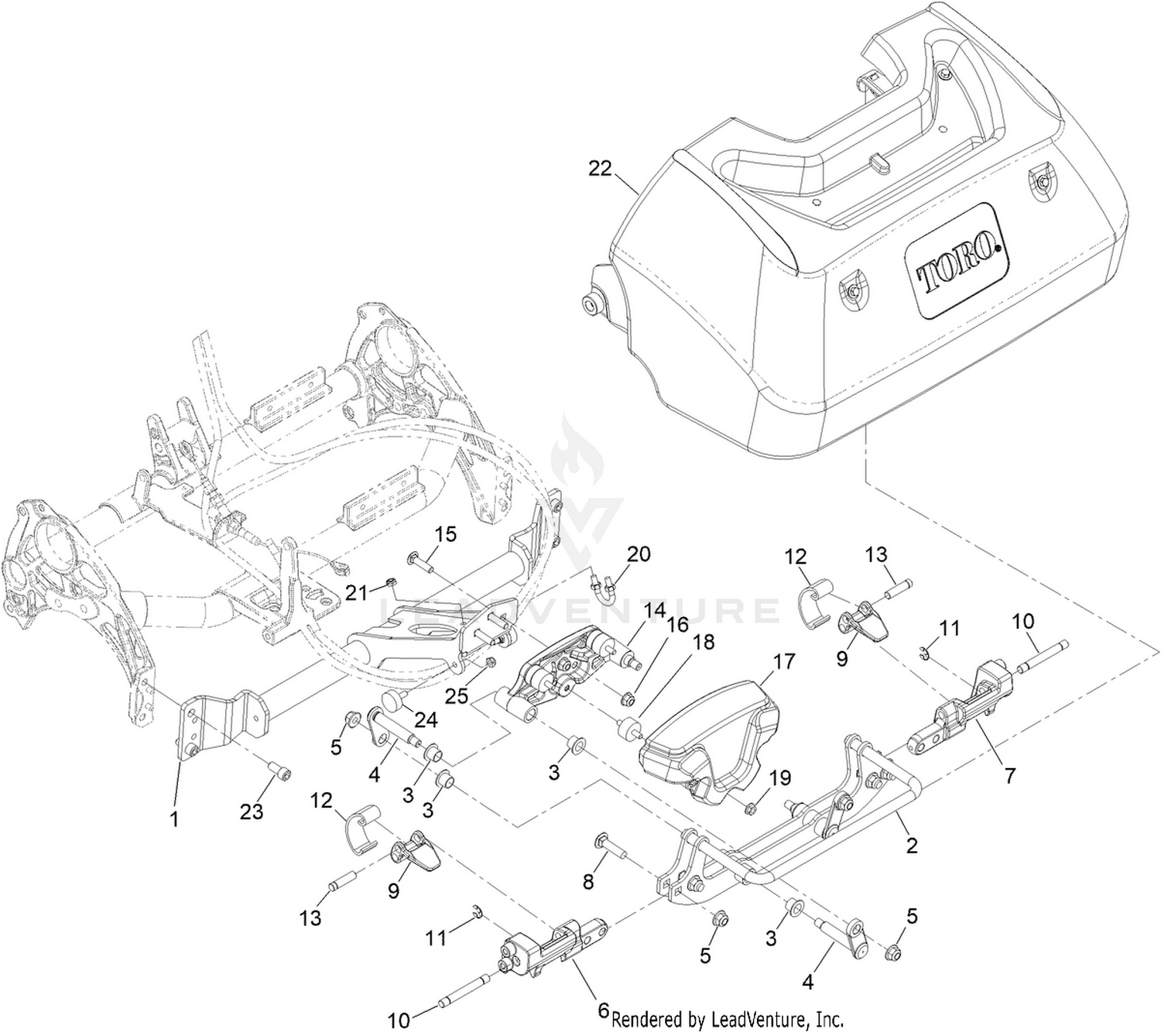

Flex Frame and Grass Basket Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 147-2296-01 | FLEX FRAME WELDED [RED] Price: $170.67 |
| 2 | 139-7435-01 | ROLL FRAME ASM, WELDED [RED] Price: $226.14 |
| 3 | 125-5239 | BUSHING-FLANGE Price: $4.21 |
| 4 | 140-6437 | LINK FLEX (MACH) Price: $19.00 |
| 5 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 6 | 139-7372 | HUB-END, RH Price: $138.99 |
| 7 | 139-7374 | HUB-END, LH Price: $138.99 |
| 8 | 3231-4 | SCREW-CARR Price: $3.59 |
| 9 | 114-8047 | LEVER Price: $29.47 |
| 10 | 139-7380 | PIN-PIVOT, LATCH Price: $16.62 |
| 11 | 32120-18 | E-RING Price: $0.97 |
| 12 | 114-8048 | SPRING Price: $9.23 |
| 13 | 114-8049 | PIN-PIVOT Price: $11.07 |
| 14 | 139-7439 | FRAME-LINK Price: $57.50 |
| 15 | 99-6005 | BOLT-CARRIAGE Price: $3.02 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 17 | 140-3399-01 | WEIGHT-TMD Price: $134.03 |
| 18 | 140-3356 | ISOLATOR-TMD Price: $25.32 |
| 19 | 32128-14 | NUT-HF Price: $0.41 |
| 20 | 01-170-0040 | U-BOLT Price: $4.21 |
| 21 | 3296-56 | NUT-LOCK, NI Price: $2.09 |
| 22 | 125-3500 | GRASS BASKET ASM Price: $570.71 |
| 23 | 131-8573 | SCREW-HSH Price: $1.64 |
| 24 | 138-2662 | BUMPER-RUBBER Price: $19.56 |
