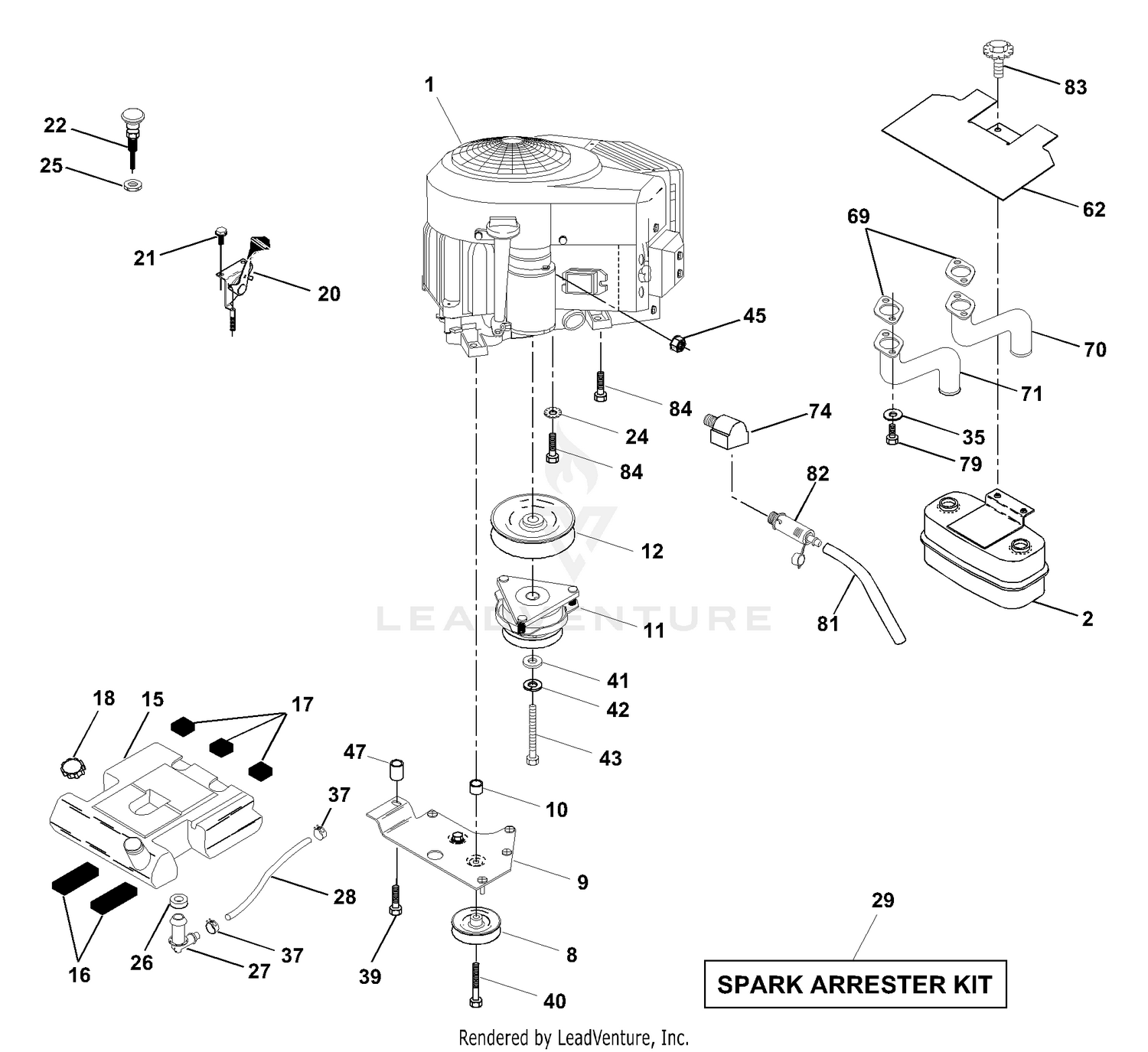

| Ref | Part Number | Description |
|---|
| 1 |
62-5550 |
DECAL Price: $9.32 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
93-7996-01 |
COVER-TOWER Price: $64.83 |
| 3 |
94-3049-01 |
DISCONTINUED Price: Call Us |
| 4 |
98-5398 |
LATCH Price: $32.53 |
| 5 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 6 |
33106-035 |
SCREW-HHF Price: $8.35 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE This part replaces 532150828. Price: $12.99 |
| 9 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 10 |
532175287 |
BUSHING Price: $17.99 |
| 11 |
3269-8 |
RIVET-BLIND Price: $0.51 |
| 11 |
532174509 |
CLUTCH KIT This part replaces 532170056. Price: $449.99 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 12 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 13 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 14 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 15 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 15 |
532151346 |
FUEL TANK 3.5G Price: $84.99 |
| 16 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 16 |
92-7633 |
BUMPER-HOOD Price: $18.01 |
| 17 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 17 |
92-7524 |
DECAL Price: $63.85 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 18 |
99-8952 |
HOOD Price: $2,783.43 |
| 19 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532164067. Price: $24.99 |
| 20 |
93-7582 |
HOSE Price: $6.64 |
| 21 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532164863. Price: $14.99 |
| 21 |
94-2617 |
PUMP COVER ASM Price: $250.50 |
| 22 |
100-3825 |
DISCONTINUED Price: Call Us |
| 22 |
532164068 |
CONTROL, CHOKE Price: $17.67 |
| 23 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 24 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 24 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 25 |
873920600 |
Nut Keps 3/8-24 Unf Price: $3.99 |
| 26 |
532003645 |
BUSHING OUTLET T Price: $3.99 |
| 26 |
93-9180-03 |
COVER-TOOL BOX Price: $24.04 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532007834. Price: $5.99 |
| 28 |
93-1262 |
DISCONTINUED Price: Call Us |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
72-3560 |
DECAL Price: $12.52 |
| 31 |
32128-33 |
NUT-HF Price: $0.25 |
| 32 |
75-5810-03 |
BOX-TOOL ASM Price: $234.90 |
| 33 |
93-0096 |
DECAL-ACE Price: $9.71 |
| 34 |
322-3 |
SCREW-HH Price: $0.79 |
| 35 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 35 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 36 |
93-6680 |
DECAL-DIESEL Price: $19.31 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
93-6689 |
DECAL-NO RIDERS Price: $9.75 |
| 38 |
106-5951 |
LH FENDER ASM This part replaces 75-3860. Price: $625.15 |
| 39 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
100-3805 |
DISCONTINUED Price: Call Us |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 UNC Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 41 |
75-1390-01 |
COVER-ACCESS, FRONT Price: $78.27 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 42 |
75-1410-01 |
PLATE-ACCESS, FLOOR Price: $142.43 |
| 43 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 47 |
532175288 |
BUSHING Price: $4.99 |
| 47 |
75-0630 |
TREAD-FOOT, CENTER Price: $56.24 |
| 48 |
93-8744 |
RIVET-BLIND Price: $0.75 |
| 49 |
75-5780 |
HINGE-STEEL Price: $18.08 |
| 50 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 51 |
94-1410 |
HOLDER-CAN, BEVERAGE Price: $5.81 |
| 52 |
33108-035 |
SCREW-HHF Price: $24.13 |
| 53 |
100-3738 |
DECAL-QUICK REFERENCE Price: $26.36 |
| 54 |
93-9425 |
DECAL-DANGER Price: $28.20 |
| 55 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 56 |
32148-7 |
NUT-CLINCH Price: $0.98 |
| 58 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 59 |
66-6480 |
WASHER Price: $1.29 |
| 60 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 61 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
| 62 |
32128-20 |
NUT-HF Price: $0.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 63 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 64 |
99-8970 |
KEY-LATCH, HOOD Price: $15.13 |
| 65 |
98-9321 |
RING-KEY Price: $1.80 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
532176069 |
TUBE.EXHAUST.B&S.VGT.LH Price: $51.99 |
| 71 |
532176070 |
TUBE.EXHAUST.B&S.VGT.RH Price: $64.99 |
| 74 |
532162295 |
ELBOW STREET BRASS Price: $29.99 |
| 79 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
