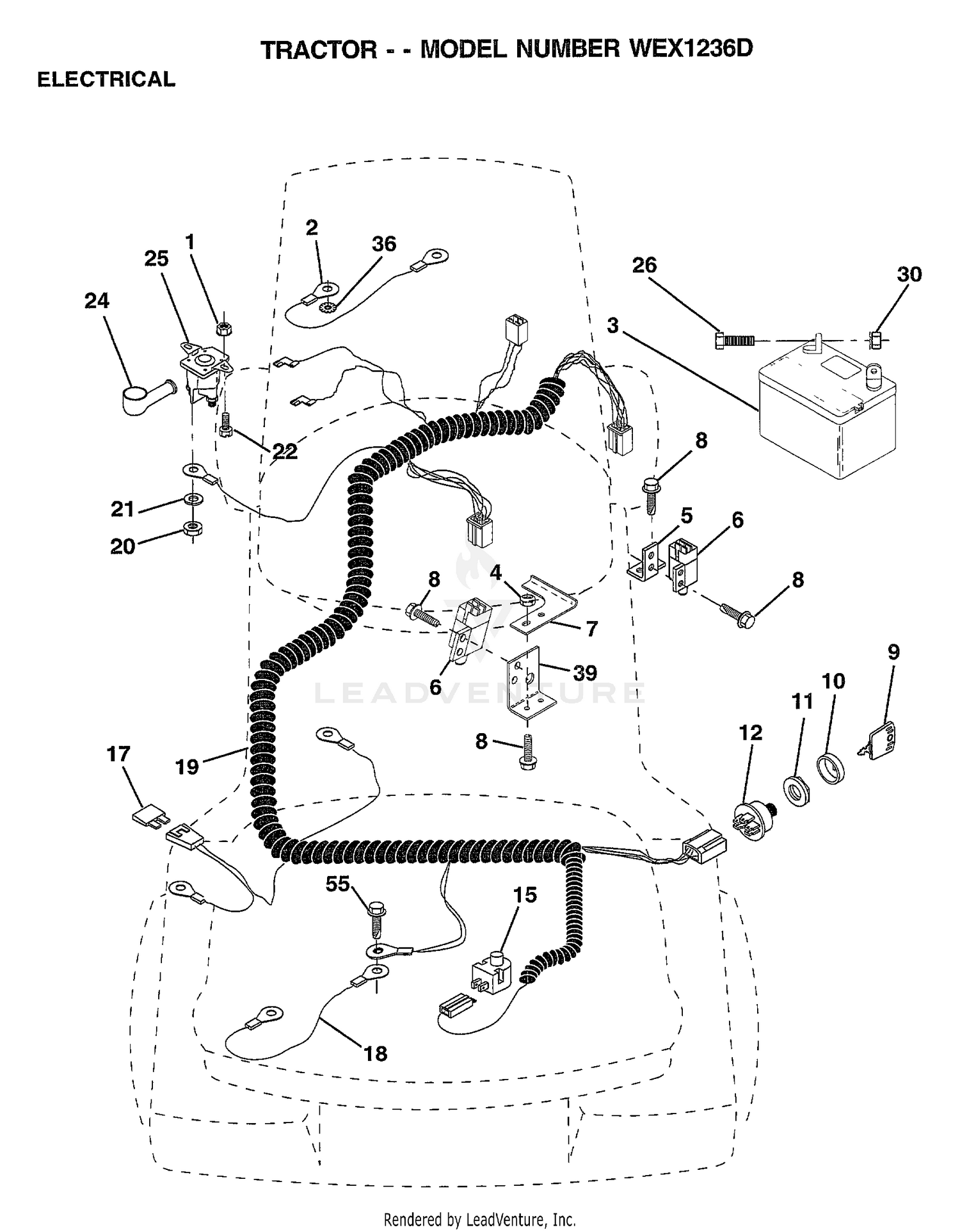

| Ref | Part Number | Description |
|---|
| 1 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 2 |
108423X |
CABLE ASM. Price: Call Us |
| 3 |
144924 |
SUB= 123899X Price: Call Us |
| 4 |
69180 |
LOCKNUT Price: Call Us |
| 5 |
108236X |
BRACKET LT Price: Call Us |
| 6 |
109553X |
SWITCH INTERLOCKT Price: Call Us |
| 7 |
146374 |
KEEPER.ACTUAT.LR. Price: Call Us |
| 8 |
17021008 |
SCREW Price: Call Us |
| 9 |
140401 |
KEY MLD GEN DELTA Price: Call Us |
| 10 |
112-8415 |
PISTON ASM This part replaces 98-9470. Price: $456.30 |
| 10 |
115-4127 |
PISTON KIT This part replaces 98-9469. Price: $518.71 |
| 10 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 11 |
140400 |
SUB= 145774 Price: Call Us |
| 12 |
163088 |
SWITCH.IGNITION Price: Call Us |
| 15 |
121305X |
SWITCH SEAT Price: Call Us |
| 17 |
166180 |
FUSE.15 AMP Price: Call Us |
| 18 |
128353 |
CABLE ASSY Price: Call Us |
| 19 |
170206 |
HARNESS, IGNITION Price: Call Us |
| 20 |
108-1404 |
PISTON RING ASM (+0.5MM) Price: $222.07 |
| 20 |
73350400 |
NUT Price: Call Us |
| 20 |
98-9551 |
PISTON RING ASM (STD) Price: $220.34 |
| 21 |
10090400 |
SUB= 10040400 Price: Call Us |
| 22 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 24 |
131563 |
SUB= 154336 Price: Call Us |
| 25 |
145673 |
SUB= 146154 Price: Call Us |
| 26 |
74760412 |
BOLT LT Price: Call Us |
| 30 |
73510400 |
NUT Price: Call Us |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 36 |
11150400 |
LOCKWASHER Price: Call Us |
| 39 |
141735 |
BRACKET SWT CLUTC Price: Call Us |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 50 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9516. Price: $547.99 |
| 60 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 98-9520. Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) This part replaces 98-9518. Price: $52.92 |
| 90 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 110 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 120 |
98-9666 |
KEY Price: $3.58 |
| 130 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 140 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 150 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 160 |
105-3783 |
O-RING Price: $6.33 |
| 170 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9523. Price: $66.99 |
| 170 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 170 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 180 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 98-9530. Price: $60.46 |
| 180 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 180 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 190 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) This part replaces 112-7007. Price: $60.46 |
| 190 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) This part replaces 112-7008. Price: $66.64 |
| 190 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 112-7006. Price: $86.06 |
| 200 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 200 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 200 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 210 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
