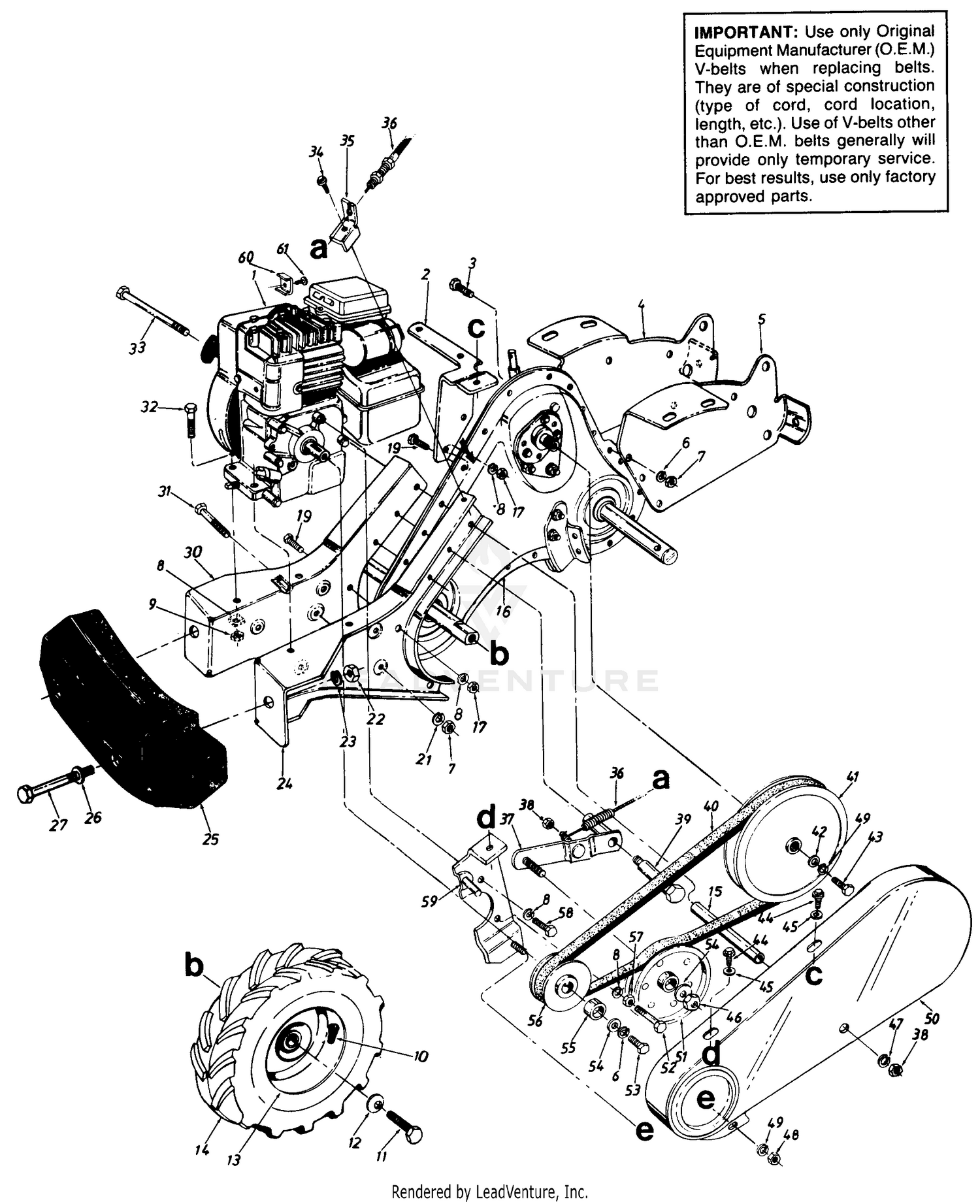

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Engine |
| 2 |
784-0199A |
BELT COVER MOUNTING BRKT Not Available Price: |
| 3 |
710-0514 |
Hex Bolt 3/8-16 x 1" Lg. This part replaces 710-0253. Price: $3.78 |
| 4 |
784-0178 |
MOUNTING BRACKET(RH) Not Available Price: |
| 5 |
784-0177 |
MOUNTING BRACKET(LH) Not Available Price: |
| 6 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 7 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 8 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 9 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 10 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 11 |
710-0237 |
Hex Bolt 5/16-24 x .62" Lg. Price: $3.93 |
| 12 |
736-0242 |
Bell-Wash. .345" I.D. x .88" Price: $3.75 |
| 13 |
734-1376 |
Wheel Rim Ass'y. Only Price: Call Us |
| 14 |
734-1377 |
WHEEL ASSEMBLY W/TIRE (LH) Not Available Price: |
| 15 |
750-0688 |
SPACER Not Available Price: |
| 16 |
784-0150 |
GEAR CASE Not Available Price: |
| 17 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 19 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 21 |
736-0217 |
L-Wash. 3/8" I.D. H.D. Price: $3.86 |
| 22 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 23 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 24 |
784-0155 |
ENGINE MOUNTING RAIL (RH) Not Available Price: |
| 25 |
723P0381 |
COUNTERWEIGHT This part replaces 723-0381. Price: $123.63 |
| 26 |
736-0326 |
Fl-Wash. .510" I.D. x 1.0" Price: $3.89 |
| 27 |
710-0382 |
Hex Bolt 1/2-13 x 5.00" Lg. Price: $10.57 |
| 30 |
784-0154 |
RAIL-ENGIN Not Available Price: |
| 31 |
710-0216 |
Hex Bolt 3/8-16 x .75" Lg. Price: $3.93 |
| 32 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0442. Price: $3.75 |
| 33 |
710-0974 |
Hex Bolt 5/16-18 x 4.75" Lg. Grade 2 Price: $10.48 |
| 34 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 35 |
784-0203 |
BRACKET Not Available Price: |
| 36 |
946-0612 |
Clutch Control Cable 53" Lg. This part replaces 746-0612. Price: $62.93 |
| 37 |
784-0175 |
BRACKET ASSY-IDLER Not Available Price: |
| 38 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 39 |
738-0681 |
SHOULDER SCREW Not Available Price: |
| 41 |
756-0472 |
V-PULLEY Not Available Price: |
| 42 |
736-0176 |
Fl-Wash. 1/4" I.D. x .93" O.D. Price: $3.95 |
| 43 |
710-0412 |
Hex Bolt 1/4-28 x .75" Lg. Price: $4.95 |
| 44 |
710-0599 |
Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 45 |
736-0463 |
Fl-Wash. .281" I.D. x .625n Price: $3.91 |
| 46 |
712-0262 |
Hex Cent. L-Nut 3/8-24 Thd. Price: $3.90 |
| 47 |
936-0123 |
WASHER-FL NLAUD Not Available This part replaces 736-0123. Price: |
| 48 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 49 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 50 |
784-0158B |
BELT COVER This part replaces 784-0158. Price: $67.55 |
| 51 |
756-0405 |
Fl-ldler w/Flanges 3.75" O.D. Price: $66.84 |
| 52 |
710-0409 |
Hex Bolt 5/16-24 x 1.75" Price: $4.02 |
| 53 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 54 |
736-0258 |
Fl-Wash. 3/8" I.D. x 1.00" Price: $3.93 |
| 55 |
750-0345 |
SPACER Not Available Price: |
| 56 |
748-0282 |
HALF PULLEY-ENGINE Not Available Price: |
| 57 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 58 |
710-0237 |
Hex Bolt 5/16-24 x .62" Lg. Price: $3.93 |
| 59 |
784-0197 |
BELT KEEPER ASS'Y. Not Available Price: |
| 60 |
751B221535 |
Casing Clamp This part replaces 751-0360A. Price: $8.93 |
