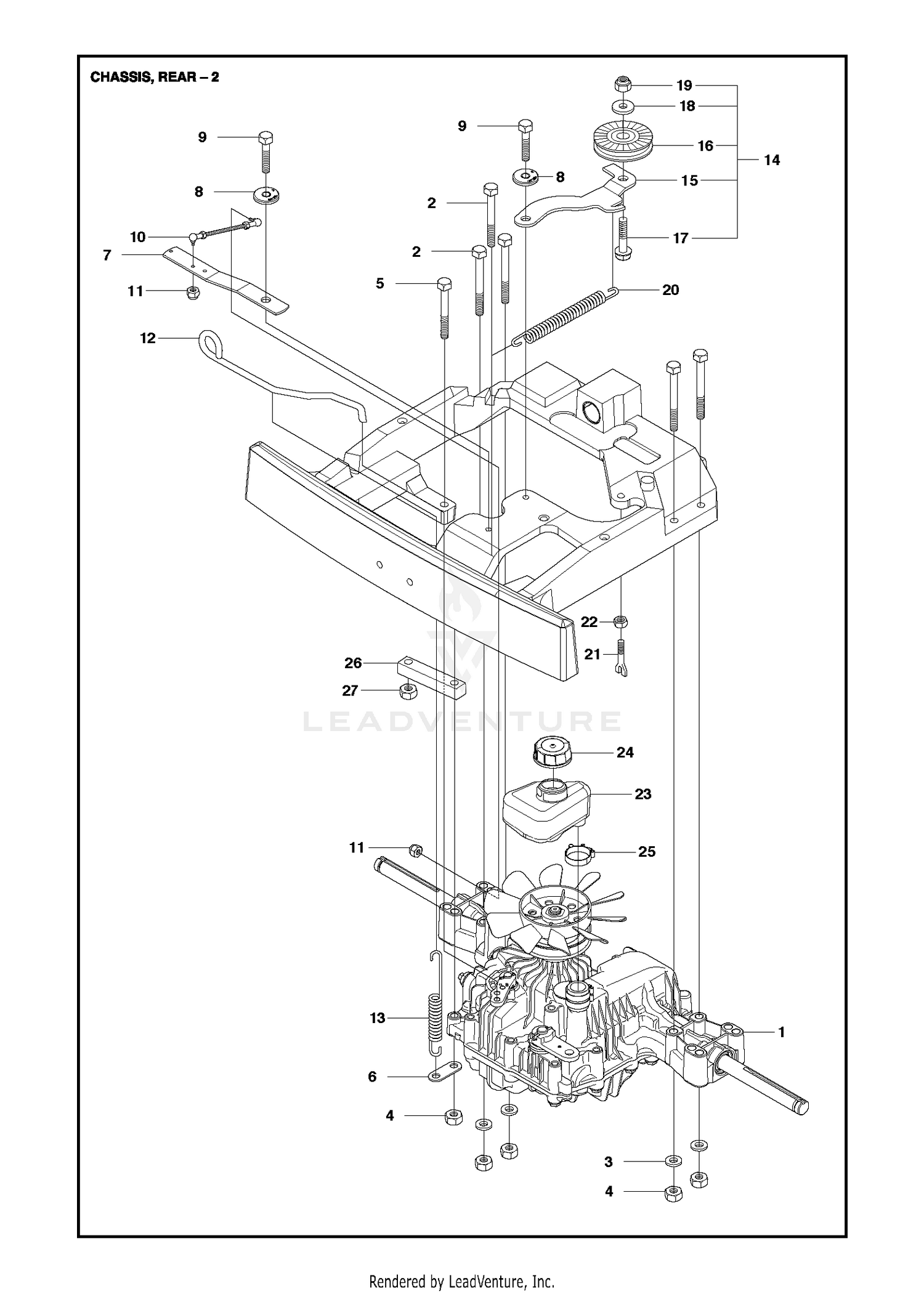

CHASSIS REAR 2
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506986301 | HYDROSTAT 7A646024070 Price: $1,099.99 |
| 2 | 725246751 | Hex Bolt Price: $4.99 |
| 3 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 4 | 731231801 | NUT Price: $3.99 |
| 6 | 506599301 | CONNECTOR Price: $5.99 |
| 7 | 579596801 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 584288604 | Washers Price: $3.99 |
| 9 | 725245171 | SCREW Price: $2.08 |
| 10 | 506987501 | ROD Price: $32.99 |
| 10 | 98-9713 | WATER FLANGE ASM Price: $199.09 |
| 11 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 12 | 506988201 | Rod Price: $12.71 |
| 13 | 506834301 | SPRING Price: $3.99 |
| 14 | 506988401 | TENSIONER Price: $54.99 |
| 15 | 588740401 | BELT TENSIONER ARM Price: $14.99 |
| 16 | 506946901 | PULLEY Price: $34.99 |
| 17 | 725245551 | SCREW Price: $3.99 |
| 18 | 734116441 | SPACER Price: $3.99 |
| 19 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 20 | 594924101 | Springs This part replaces 506988601. Price: $3.99 |
| 20 | 98-9580 | PIPE-RETURN, WATER Price: $4.01 |
| 21 | 506988801 | SCREW Price: $4.96 |
| 22 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 23 | 506989001 | TANK Price: $24.99 |
| 25 | 505131102 | HOSE CLAMP 20-32 Price: $4.99 |
| 30 | 105-3747 | PLUG Price: $3.62 |
| 40 | 99-3583 | GASKET Price: $1.92 |
| 50 | 98-9638 | GASKET-FLANGE, WATER Price: $3.74 |
| 60 | 98-7692 | BOLT Price: $0.92 |
| 70 | 98-9356 | BOLT Price: $2.06 |
| 80 | 98-9578 | PIPE-RETURN, WATER Price: $11.28 |
| 90 | 98-9579 | BAND-PIPE Price: $5.22 |
| 100 | 100-1983 | THERMO-SWITCH Price: $148.39 |
| 110 | 130-1377 | ADAPTER-THERMOSWITCH Price: $13.49 |
| 120 | 98-7778 | THERMOSTAT ASM Price: $61.89 |
| 130 | 98-9471 | COVER-THERMOSTAT Price: $34.62 |
| 140 | 105-3748 | GASKET-THERMOSTAT Price: $4.31 |
