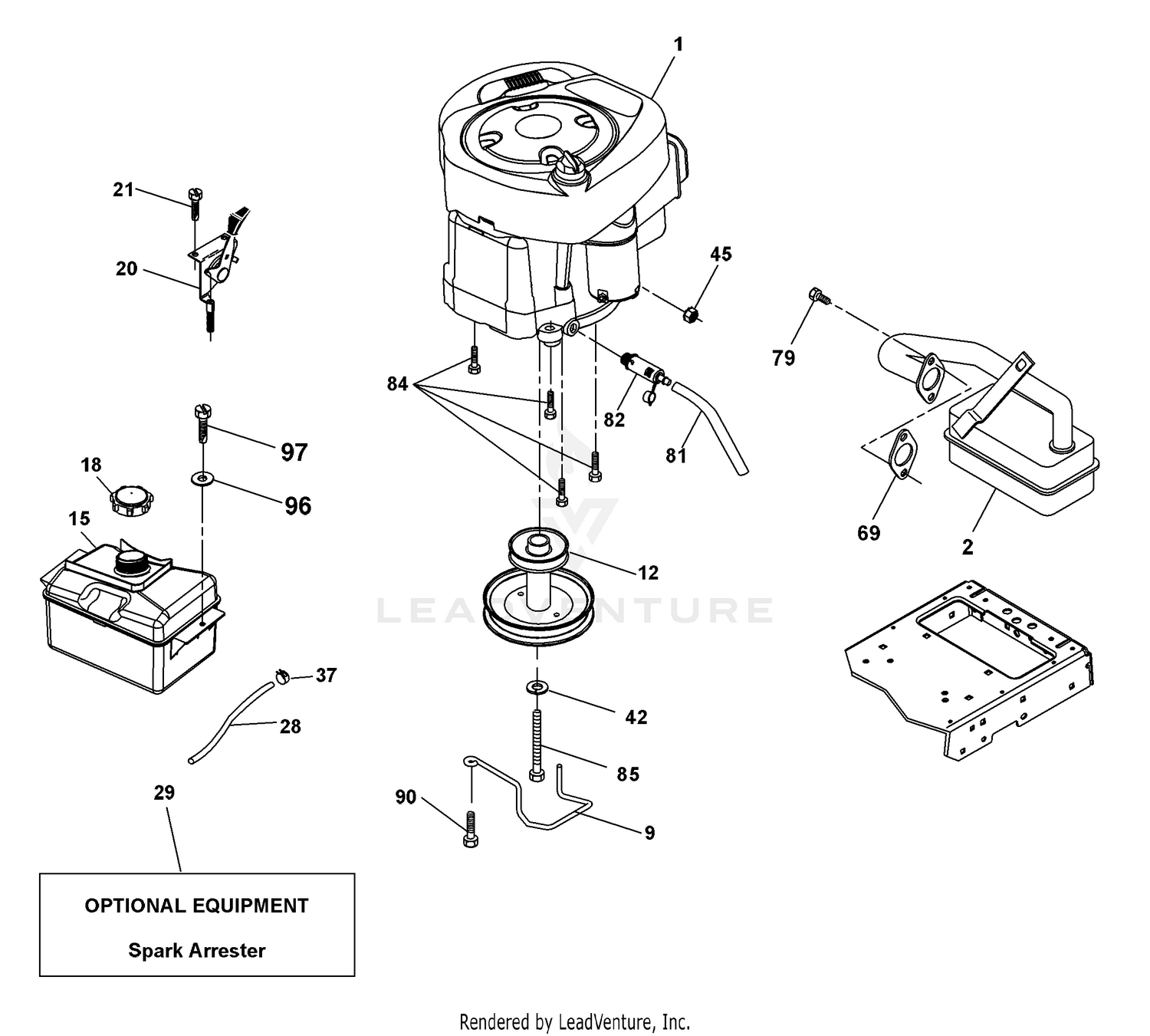

| Ref | Part Number | Description |
|---|
| 1 |
93-3670 |
O-RING Price: $28.85 |
| 2 |
137352 |
Muffler Price: Call Us |
| 2 |
72-5740 |
OIL SEAL Price: $31.19 |
| 3 |
251-348 |
BEARING-BALL Price: $54.23 |
| 4 |
72-5720 |
RETAINING RING Price: $6.96 |
| 5 |
72-5580 |
BEVEL GEAR Price: $289.19 |
| 6 |
251-8 |
BEARING-BALL Price: $30.06 |
| 7 |
93-3671 |
PIN Price: $15.63 |
| 8 |
93-3672 |
DISCONTINUED Price: Call Us |
| 9 |
194319 |
Keeper Belt Engine Price: Call Us |
| 9 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 10 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 12 |
251-347 |
BEARING-BALL Price: $9.69 |
| 12 |
401985 |
Pulley Engine Price: Call Us |
| 13 |
72-5790 |
BOLT - HEX HD Price: $1.49 |
| 14 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 15 |
407545 |
Tank Fuel 1.50 Price: Call Us |
| 15 |
72-5590 |
DISCONTINUED Price: Call Us |
| 16 |
72-5630 |
GASKET Price: $9.39 |
| 17 |
251-349 |
BALL BEARING Price: $36.05 |
| 18 |
197725 |
Cap Asm Price: Call Us |
| 18 |
72-5090 |
DISCONTINUED Price: Call Us |
| 19 |
72-5680 |
SPACER Price: $15.47 |
| 20 |
176636X421 |
Control Throttle/Choke Price: Call Us |
| 20 |
72-5560 |
KNUCKLE KING PIN Price: $158.96 |
| 21 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 21 |
93-3668 |
WASHER Price: $60.34 |
| 22 |
93-3669 |
NEEDLE BEARING Price: $160.13 |
| 23 |
93-3666 |
AXLE GEARBOX Price: $799.05 |
| 24 |
72-5730 |
OIL SEAL Price: $18.07 |
| 25 |
251-263 |
BEARING Price: $98.96 |
| 26 |
72-5550 |
KNUCKLE CASE COVER Price: $190.19 |
| 27 |
281-10 |
PLUG Price: $14.99 |
| 28 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 28 |
401137 |
Fuel Line Price: Call Us |
| 29 |
137180 |
Spark Arrester Kit Price: Call Us |
| 29 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 30 |
72-5540 |
DISCONTINUED Price: Call Us |
| 31 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 32 |
72-5770 |
CASTELLATED NUT Price: $18.98 |
| 33 |
72-5660 |
WHEEL SHAFT WASHER Price: $14.58 |
| 34 |
72-5650 |
DISCONTINUED Price: Call Us |
| 35 |
72-5570 |
DISCONTINUED Price: Call Us |
| 36 |
72-5780 |
DISCONTINUED Price: Call Us |
| 37 |
123487X |
Clamp Hose Price: Call Us |
| 37 |
95-3347 |
DISCONTINUED Price: Call Us |
| 38 |
93-3667 |
DISCONTINUED Price: Call Us |
| 42 |
10040700 |
Washer Lock 7/16 Price: Call Us |
| 45 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 69 |
165291 |
Gasket Price: Call Us |
| 79 |
192334 |
Screw Socket Hd 5/16-18 x .75 Price: Call Us |
| 81 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 82 |
181654 |
Plug Drain Oil Price: Call Us |
| 84 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 85 |
173937 |
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Price: Call Us |
| 90 |
17000612 |
Screw 3/8-16 x 1.0 Price: Call Us |
| 96 |
19091416 |
Washer 9/32 x 7/8 x 16 GA Price: Call Us |
