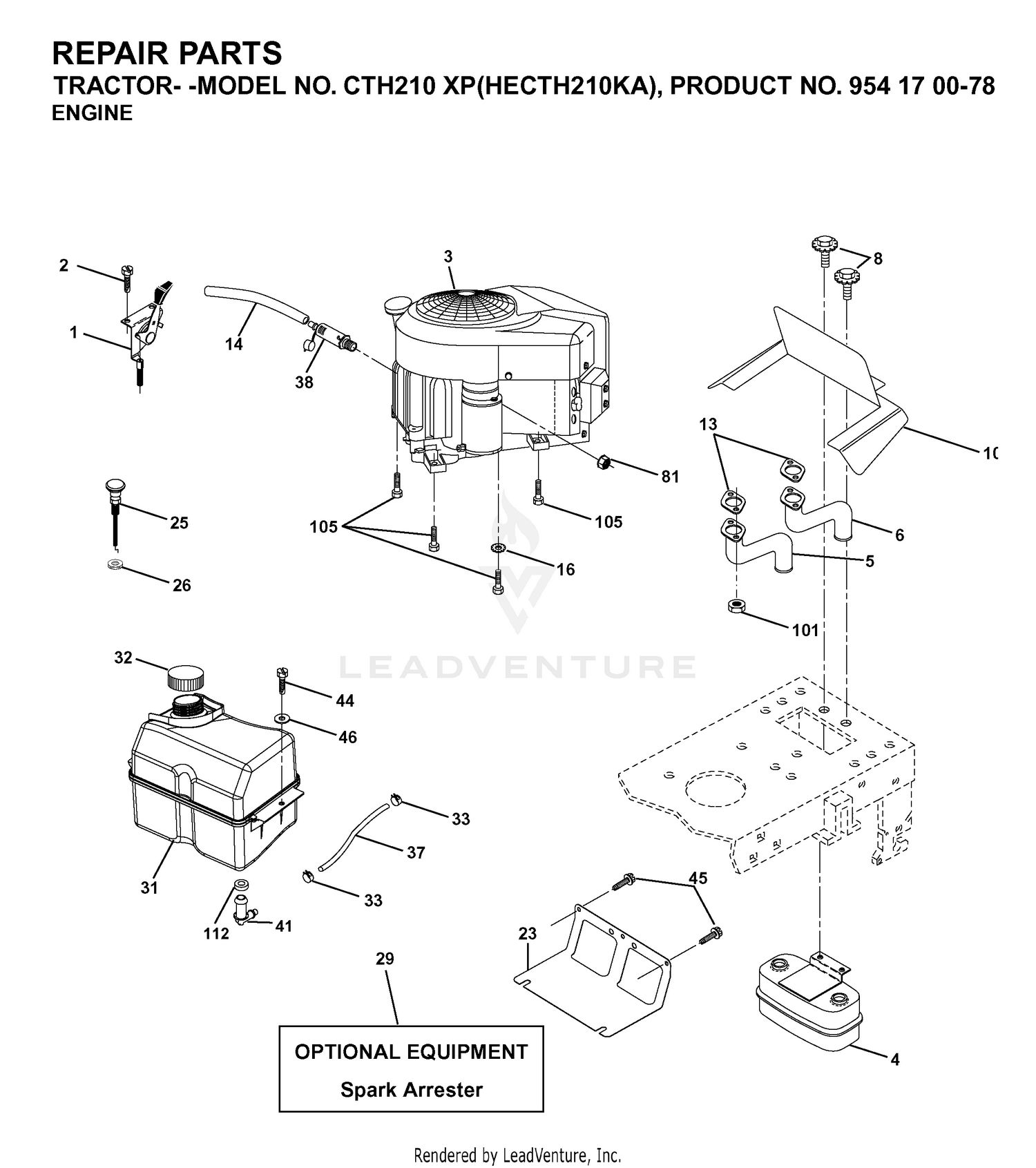

| Ref | Part Number | Description |
|---|
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
532184579 |
TUBE EXHAUST LH Price: $49.99 |
| 6 |
532184580 |
EXHAUST.TUBE.RH.KAWA Price: $49.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532132781 |
CHOKE CONTROL This part replaces 532132782. Price: $22.99 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532185534. Price: $44.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
