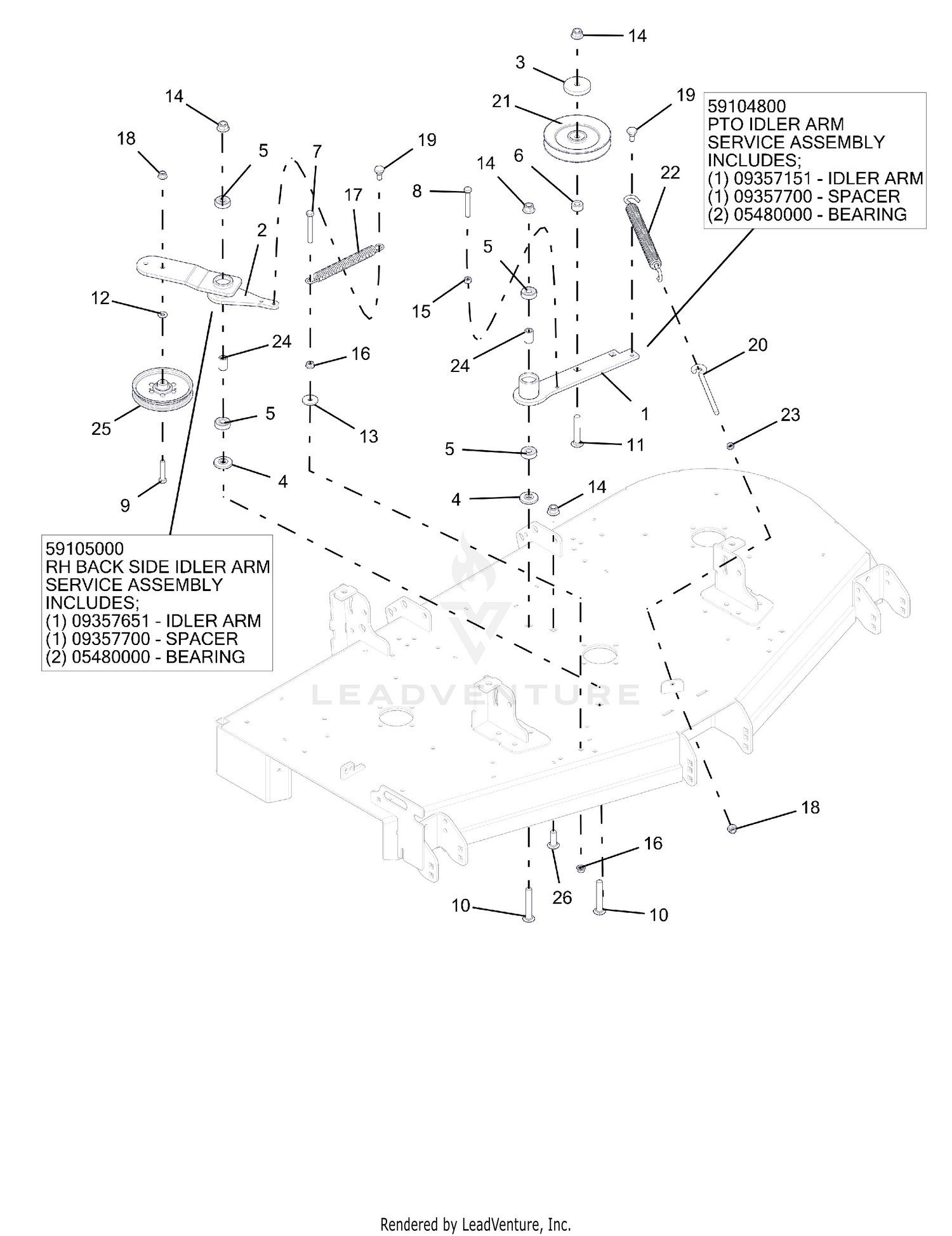

| Ref | Part Number | Description |
|---|
| 1 |
05480000 |
BRG-BALL .50X1.38X.438 SEALED Price: $13.95 |
| 1 |
09357700 |
SPACER .510 X .867 X 1.1485 Price: $4.45 |
| 1 |
59104800 |
PTO IDLER ARM ASSEMBLY Price: $76.45 |
| 1 |
59219200 |
KIT, PRIMARY DECK IDLER ARM This part replaces 09357151. Price: $112.45 |
| 2 |
05480000 |
BRG-BALL .50X1.38X.438 SEALED Price: $13.95 |
| 2 |
09357600 |
WLDMT, DECK RH IDLER ARM This part replaces 09357651. Price: $68.95 |
| 2 |
09357700 |
SPACER .510 X .867 X 1.1485 Price: $4.45 |
| 2 |
59105000 |
RH BACKSIDE IDLER ARM ASSEMBLY Price: $79.95 |
| 3 |
00450100 |
CAP, IDLER BEARING SEALING Price: $13.45 |
| 4 |
04714600 |
SPACER, IDLER ARM Price: $5.95 |
| 5 |
05408000 |
BRG-BALL .500X1.38X.437 Price: $5.95 |
| 6 |
05500905 |
BSHG, SPCR .502X.997X.50 PM Price: $10.45 |
| 7 |
05901814 |
BLT, HEX .38-16X3.00 G5 ZCC This part replaces 05957800. Price: $2.45 |
| 8 |
05901611 |
BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95 |
| 9 |
05901718 |
BLT,HEX .38-16X2.00 G5 ZCC This part replaces 05963300. Price: $2.95 |
| 10 |
06200339 |
BTL,RHSSN .500-13 X 3.25 G5 ZCC This part replaces 06200216. Price: $3.45 |
| 12 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 13 |
06401121 |
WSHR,FLT .406X1.375X.135 ZCC This part replaces 06442400. Price: $5.45 |
| 14 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 15 |
06500917 |
NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95 |
| 16 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 17 |
08300728 |
SPRING- EXTENSION This part replaces 08300626. Price: $24.95 |
| 18 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 19 |
07000034 |
BLT,SHLDR EP .38-16X.30 HEX YZ Price: $3.45 |
| 20 |
07001604 |
BOLT, .38-16X6.00 .62 DIA EYE Price: $6.45 |
| 21 |
07300527 |
SHV, .50"ID X 6.00"OD V-IDLER Price: $47.95 |
| 22 |
08300505 |
SPRING, EXTENSION Price: $23.95 |
| 23 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 24 |
09357700 |
SPACER .510 X .867 X 1.1485 Price: $4.45 |
| 25 |
07352400 |
IDLER- 5" FLANGED This part replaces D28050. Price: $35.95 |
