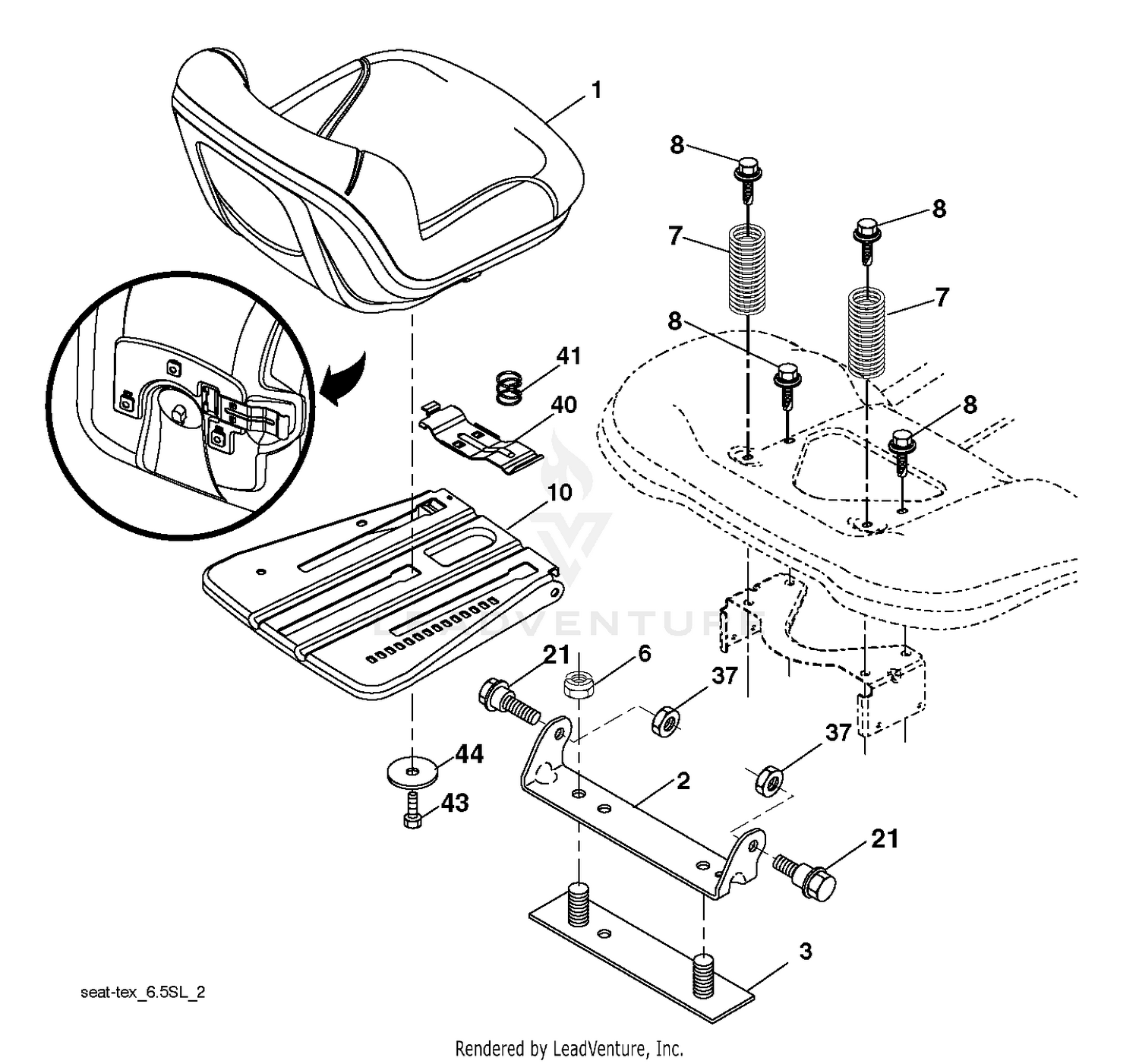

| Ref | Part Number | Description |
|---|
| 1 |
3217-6 |
NUT-HEX Price: $1.19 |
| 1 |
583239201 |
SEAT.TP110.BLK.PPRO.MILSCO This part replaces 532197514. Price: $129.99 |
| 2 |
3253-24 |
WASHER-LOCK/SP Price: $0.37 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $5.99 |
| 3 |
322-3 |
SCREW-HH Price: $0.79 |
| 3 |
532140675 |
STRAP Price: $3.99 |
| 4 |
27-9870 |
PIN-SWITCH, SEAT Price: $31.55 |
| 5 |
37-9780 |
DISCONTINUED Price: Call Us |
| 6 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 6 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 8 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 10 |
532196977 |
PAN.ASM.SEAT.3PT Price: $32.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $1.99 |
| 37 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 40 |
532197661 |
HANDLE.SLIDE.SEAT.TEX.BLACK Price: $12.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $2.99 |
| 43 |
874760612 |
BOLT Price: $1.99 |
