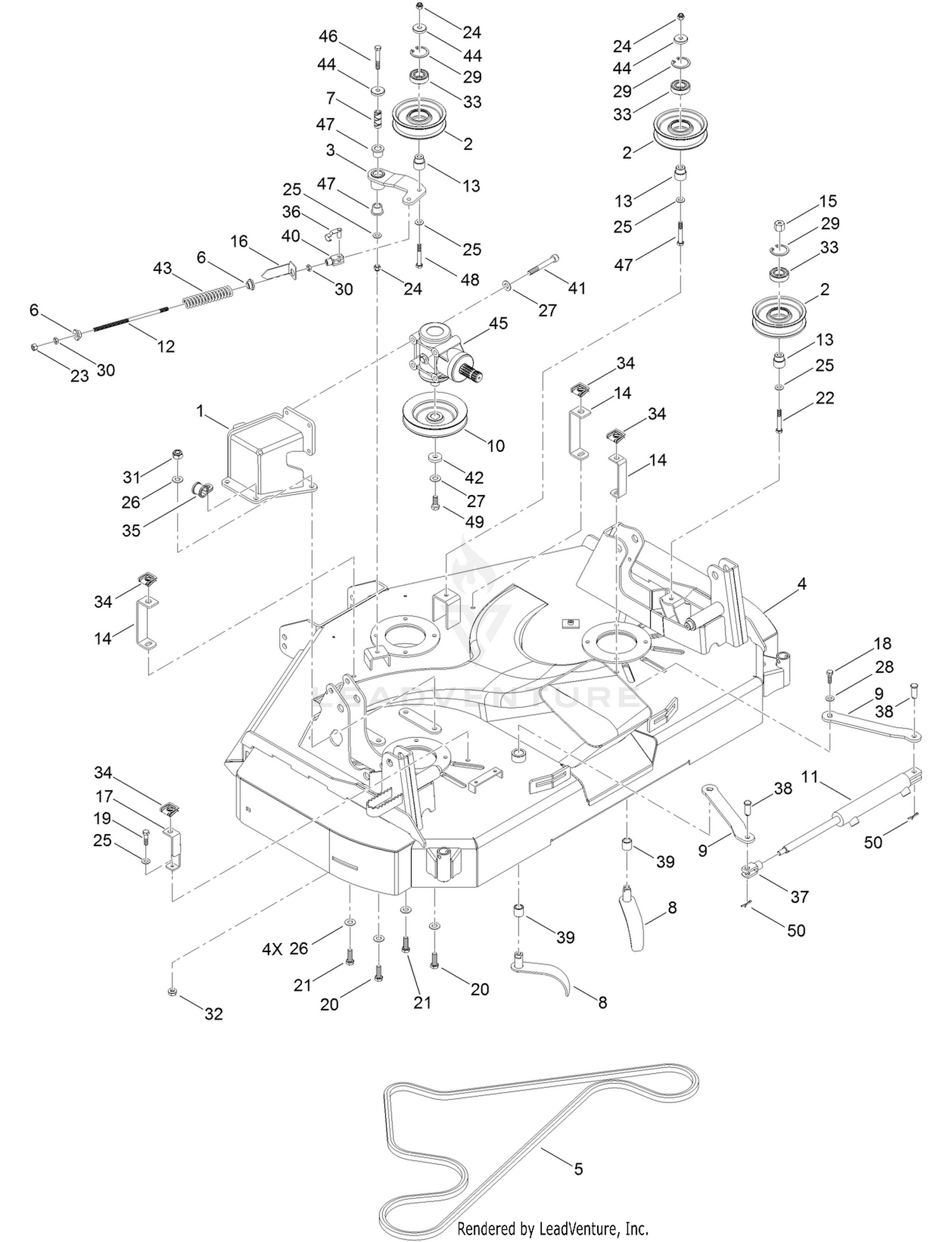

132 cm Cutting Deck Belt and Idlers Assembly
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0626 | ROD Price: $7.69 |
| 2 | 134-4536 | PULLEY-POSITION, NUETRAL This part replaces 134-0632. Price: $46.12 |
| 3 | 134-0655 | TIGHTENER-BELT, CUTTER DECK Price: $20.77 |
| 4 | 134-0661 | FAIRING-DECK, CUTTER Price: $2,742.18 |
| 5 | 134-0571 | BELT-DECK, CUTTER Price: $197.06 |
| 6 | 134-0712 | BUSHING Price: $17.49 |
| 7 | 134-0730 | SPACER Price: $17.52 |
| 8 | 134-0808 | SCRAPER Price: $16.10 |
| 9 | 134-0815 | LEVER Price: $7.60 |
| 10 | 134-0817 | PULLEY Price: $75.97 |
| 11 | 134-0827 | PISTON-BRAKE Price: $259.29 |
| 12 | 134-0835 | SUPPORT-GEARBOX Price: $88.06 |
| 13 | 134-0879 | BUSHING Price: $9.09 |
| 14 | 134-0883 | BRACKET Price: $7.44 |
| 15 | 134-0884 | SPACER Price: $9.64 |
| 16 | 134-0892 | SPRING-BELT TENSION INDICATOR Price: $4.20 |
| 17 | 134-0965 | BRACKET Price: $9.65 |
| 18 | 134-1011 | SCREW Price: $0.32 |
| 19 | 134-1014 | SCREW Price: $0.39 |
| 20 | 134-1019 | SCREW Price: $0.75 |
| 21 | 134-1023 | SCREW Price: $0.70 |
| 22 | 134-1029 | SCREW Price: $0.81 |
| 23 | 134-1034 | NUT Price: $0.25 |
| 24 | 134-1038 | NUT Price: $0.32 |
| 25 | 134-1045 | WASHER Price: $0.25 |
| 26 | 134-1046 | WASHER Price: $0.25 |
| 27 | 134-1051 | WASHER Price: $0.32 |
| 28 | 134-1054 | WASHER Price: $0.32 |
| 29 | 134-1058 | RING-RETAINING, INT Price: $1.33 |
| 30 | 134-1078 | NUT Price: $0.25 |
| 31 | 134-1081 | NUT Price: $0.70 |
| 32 | 134-1082 | NUT Price: $0.36 |
| 33 | 134-1055 | BEARING This part replaces 134-1108. Price: $30.66 |
| 34 | 134-1193 | PLATE-SMALL Price: $2.72 |
| 35 | 134-1198 | CLAMP Price: $15.72 |
| 36 | 134-1239 | FORK Price: $5.66 |
| 37 | 134-1241 | FORK Price: $8.90 |
| 38 | 134-1242 | PIN Price: $5.51 |
| 39 | 134-1265 | BUSHING-BRONZE Price: $8.58 |
| 40 | 134-1271 | FORK Price: $5.59 |
| 41 | 134-1316 | SCREW Price: $2.16 |
| 42 | 134-1337 | WASHER Price: $5.45 |
| 43 | 134-1350 | SPRING Price: $8.19 |
| 44 | 134-1355 | WASHER Price: $4.91 |
| 45 | 134-0623 | BACK GEAR ASM Price: $418.58 |
| 46 | 134-2953 | SCREW Price: $0.83 |
| 47 | 134-2954 | BUSHING Price: $5.34 |
| 48 | 134-2955 | SCREW Price: $0.77 |
| 49 | 134-2956 | SCREW Price: $0.77 |
