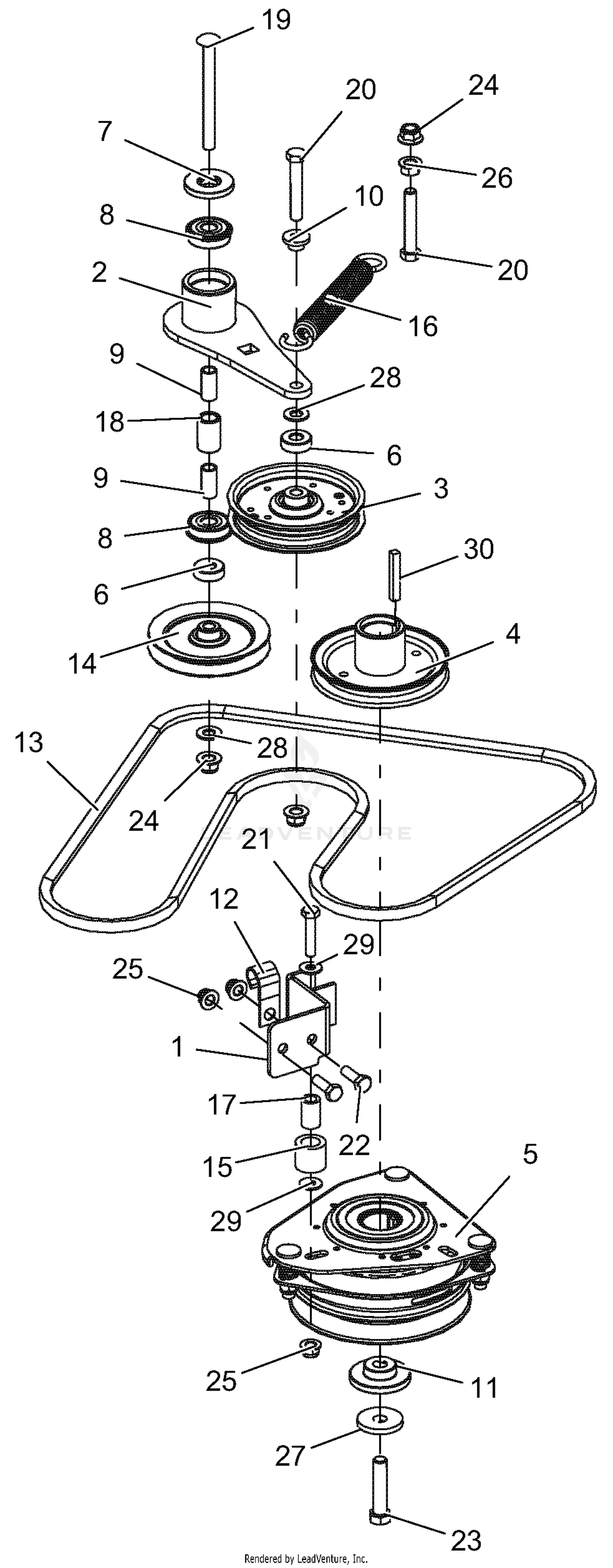

| Ref | Part Number | Description |
|---|
| 1 |
04807551 |
WLDMT, CLUTCH STOP Price: $30.95 |
| 2 |
04720551 |
WLDMT, IDLER ARM GROUND DRIVE Price: $43.95 |
| 3 |
07300101 |
ASM, 4" IDLER (.75 WIDE) Price: $56.45 |
| 4 |
07343067 |
SHEAVE, ENGINE 4.5 OD X 1.127 Price: $124.95 |
| 5 |
03789900 |
CLUTCH, OGURA GT1A-AR03 Price: $286.45 |
| 6 |
04448100 |
SPCR, .375 X 1.00 X .342 Price: $20.95 |
| 7 |
04714600 |
SPACER, IDLER ARM Price: $5.95 |
| 8 |
05480000 |
BRG-BALL .50X1.38X.438 SEALED Price: $13.95 |
| 9 |
05500106 |
BSHG-SLV .385X.500X1.045 Price: $1.45 |
| 10 |
05500435 |
BSHG-FLG .385X.500X.875X.406 Price: $1.95 |
| 11 |
05501206 |
BSHG-FLG .469X1.06X.574X2.0 Price: $17.45 |
| 12 |
06916000 |
J-CLAMP Price: $2.45 |
| 13 |
07226400 |
V-BELT, A-COGGED Price: $46.95 |
| 14 |
07300528 |
SHV, .38"ID X 4.00"OD V-IDLER Price: $35.95 |
| 15 |
07500007 |
BUMPER,RUBBER .62X1.0X.88 LG Price: $5.45 |
| 16 |
08300728 |
SPRING- EXTENSION Price: $24.95 |
| 17 |
08833400 |
BUSH.,S.391X.622X.950 ST Price: $5.45 |
| 18 |
09357700 |
SPACER .510 X .867 X 1.1485 Price: $4.45 |
| 19 |
06200239 |
BLT,RHSSN .38-16X4.00 G5 ZCC This part replaces 06200126. Price: $6.95 |
| 20 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 21 |
05901710 |
BLT, HEX .31-18X1.50 G5 ZCC This part replaces 05952400. Price: $1.45 |
| 22 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 23 |
05901916 |
BLT, HEX 0.4375-20X2 G8 ZCC NT This part replaces 05901530. Price: $3.45 |
| 24 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 25 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 26 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 27 |
06400936 |
WASHER, 7/16" SPRING DISK Price: $10.45 |
| 28 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 29 |
06401124 |
WSHR- FLT .312X.734X.065 ZCC This part replaces 06435800. Price: $0.95 |
