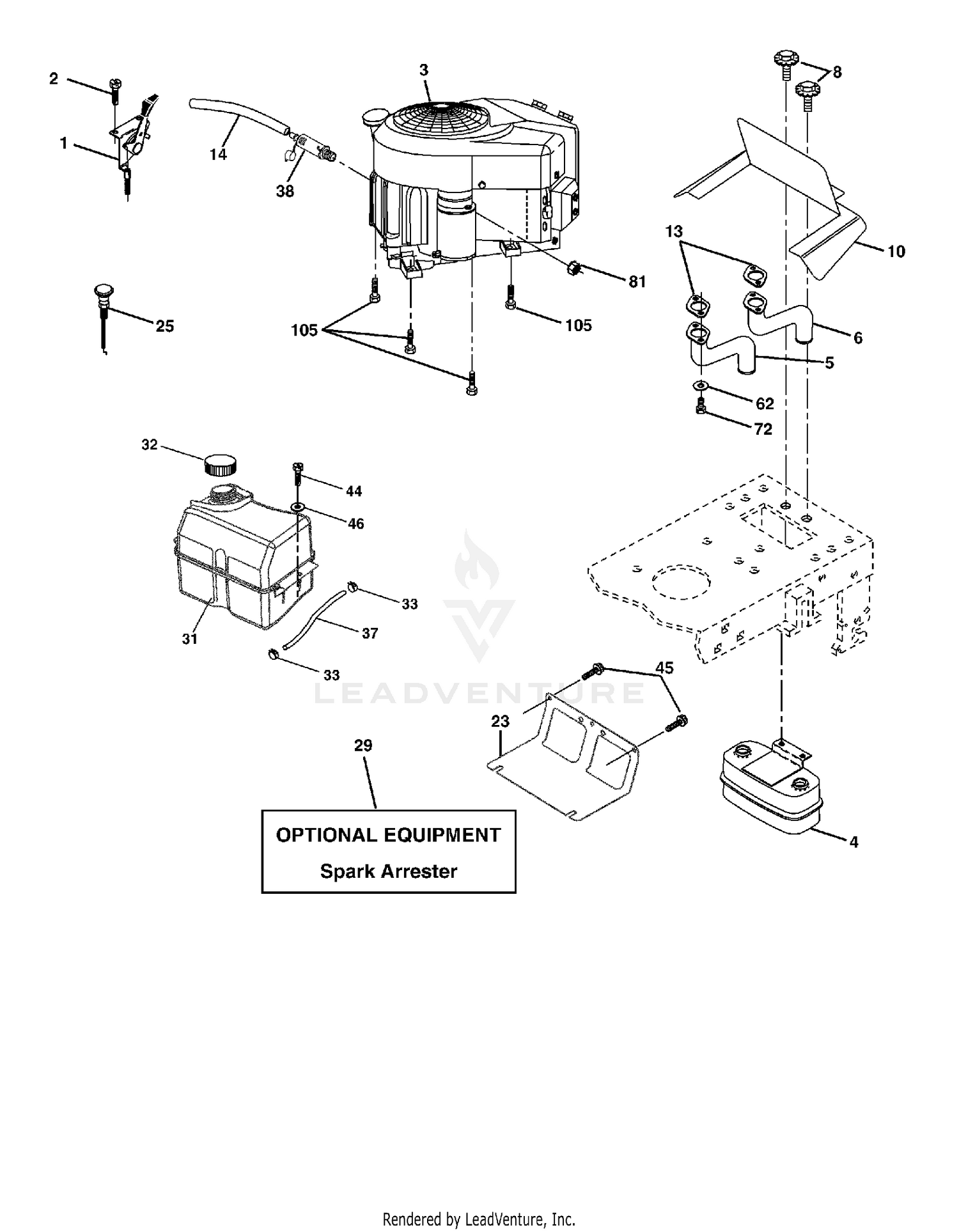

| Ref | Part Number | Description |
|---|
| 0 |
632205C |
CARBURETOR This part replaces 632180. Price: Call Us |
| 1 |
106-5139 |
COVER-VALVE Price: $326.12 |
| 1 |
532170803 |
CONTROL, THROTTLE Price: $22.99 |
| 1 |
632160 |
SHAFT & LEV Price: $13.61 |
| 2 |
106-5140 |
HOUSING-PUMP Price: $351.31 |
| 2 |
32096 |
RET SPRING Price: $2.62 |
| 2 |
817240408 |
SCREW Price: $3.99 |
| 3 |
106-5141 |
COVER-DIAPHRAGM Price: $256.55 |
| 4 |
106-5142 |
ROD-CONNECTING Price: $450.84 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $49.99 |
| 5 |
100-8314 |
DISC-BACK, DIAPHRAGM Price: $259.27 |
| 5 |
532174703 |
EXHAUST.TUBE.LH.MUFFLER Price: $49.99 |
| 5 |
632039 |
WASHER Price: $3.86 |
| 6 |
104-9052 |
CRANKSHAFT-KEYED Price: $676.04 |
| 6 |
532174704 |
EXHAUST.TUBE.LH.MUFFLER Price: $49.99 |
| 6 |
631682 |
SHUTTER Price: $10.04 |
| 7 |
100-8325 |
PLATE-DUST Price: $21.47 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 8 |
106-5150 |
REPAIR KIT Price: $518.42 |
| 8 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 9 |
99-0868 |
FELT-SEAL Price: $12.34 |
| 10 |
100-8327 |
BEARING-BALL Price: $61.98 |
| 10 |
532175563 |
SHIELD MUFFLER Price: $32.99 |
| 10 |
631683 |
SHAFT & LEV Price: $12.88 |
| 11 |
100-8329 |
BEARING-BALL Price: $51.10 |
| 12 |
99-0873 |
FITTING-GREASE Price: $18.53 |
| 13 |
632040 |
WASHER Price: $3.86 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 14 |
631684 |
SHUTTER Price: $3.86 |
| 15 |
27113 |
SPRING Price: $2.62 |
| 16 |
106-5143 |
BOLT Price: $3.66 |
| 17 |
106-5144 |
BOLT Price: $3.17 |
| 17 |
650399 |
SCREW Price: $1.20 |
| 18 |
106-5145 |
BOLT Price: $29.86 |
| 18 |
27114 |
SPRING Price: $2.62 |
| 19 |
106-5146 |
BOLT Price: $7.53 |
| 20 |
27112 |
IDLE SCREW Price: $1.26 |
| 21 |
106-5148 |
BOLT Price: $12.92 |
| 21 |
27114 |
SPRING Price: $2.62 |
| 22 |
100-8326 |
NUT-HEX Price: $0.25 |
| 23 |
106-5149 |
NUT Price: $2.19 |
| 23 |
532169837 |
SHIELD.BROWNING.DBR.GUARD Price: $7.99 |
| 24 |
100-8316 |
WASHER-LOCK Price: $3.12 |
| 25 |
29170 |
FLOAT BOWL Price: Call Us |
| 25 |
532161729 |
CONTROL.CHOKE.40"BLACK Price: $22.99 |
| 26 |
31503 |
SPRING Price: $1.23 |
| 27 |
100-8336 |
O-RING Price: $2.98 |
| 27 |
27106 |
FLOAT SHAFT Price: $2.04 |
| 28 |
106-5138 |
O-RING Price: $24.96 |
| 28 |
27105 |
FLOAT Price: $20.00 |
| 29 |
27109 |
GASKET Price: $1.18 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 30 |
631687 |
INLET NEEDLE Price: $17.46 |
| 32 |
532140527 |
Cap Asm Fuel W/sym Vented (AYP part number) Price: $6.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 36 |
632022 |
NOZZLE Price: $10.04 |
| 37 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 40 |
631764 |
POWER SCREW Price: $22.59 |
| 41 |
27544 |
O RING Price: $1.26 |
| 41 |
532139277 |
STEM FUEL TANK Price: $5.99 |
| 43 |
630786 |
SPRING Price: $1.25 |
| 44 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 46 |
819091416 |
WASHER Price: $3.99 |
| 62 |
810040500 |
LOCKWASHER Price: $2.99 |
| 72 |
532192334 |
SCREW.SOCKET HD.5/16-1 This part replaces 871070512. Price: $2.99 |
| 81 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532053838. Price: $2.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $2.99 |
