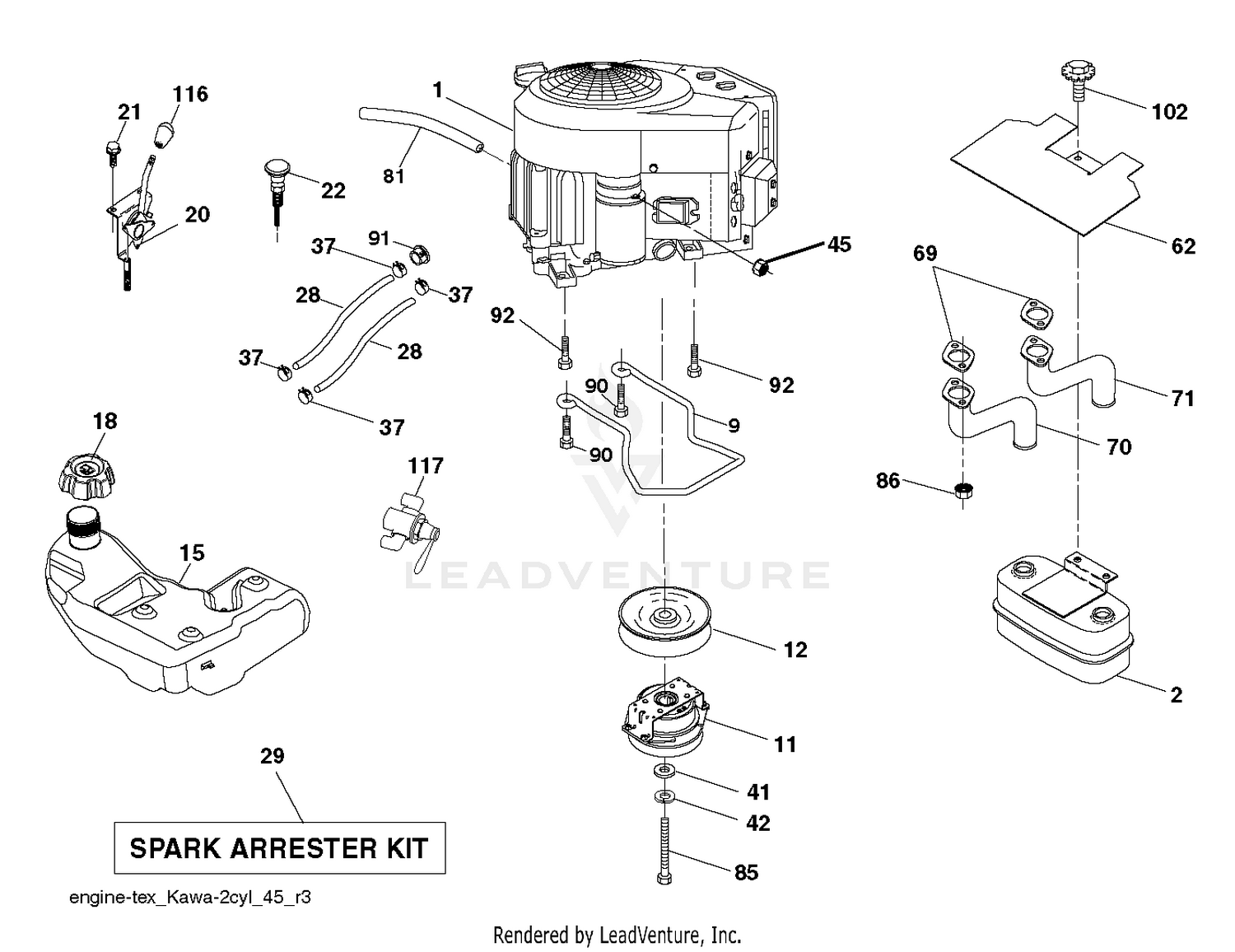

| Ref | Part Number | Description |
|---|
| 1 |
92-1812 |
SHAFT-PIVOT, LIFT Price: $51.90 |
| 2 |
32144-109 |
SCREW-THD Price: $1.29 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 4 |
92-1818-01 |
ARM-SPRING, TENSION This part replaces 92-1818. Price: $13.39 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
94-5095 |
LIFT ARM ASM - SERVICE Price: $197.64 |
| 7 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 8 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 11 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 11 |
587255001 |
CLUTCH. 5.0 PD. 2.5 OFFSET Price: $229.99 |
| 12 |
586899601 |
PULLEY.EXTENDED.SHAFT.GROUND Price: $29.99 |
| 12 |
99-2338 |
SHAFT-PIVOT Price: $101.09 |
| 13 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 14 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 15 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 15 |
529999002 |
TANK ASSY W/CAP 4 GAL REAR EPA This part replaces 532438021. Price: $249.99 |
| 16 |
93-6912 |
DISCONTINUED Price: Call Us |
| 17 |
283-75 |
PIN-CLEVIS Price: $1.56 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 Price: $14.99 |
| 19 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 20 |
532424341 |
CONTROL.THROTTLE.PRO. Price: $34.99 |
| 21 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 22 |
93-6738 |
CHAIN Price: $13.80 |
| 23 |
323-18 |
SCREW-HH Price: $0.82 |
| 24 |
62-7300 |
CHAIN Price: $9.30 |
| 25 |
282-4 |
SHACKLE Price: $32.98 |
| 26 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 27 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 28 |
323-7 |
SCREW-HH Price: $0.65 |
| 28 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
98-3445 |
SPACER Price: $6.02 |
| 30 |
98-3446 |
PLATE-REINFORCEMENT Price: $11.38 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 Price: $24.99 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 Price: $24.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606701 |
BOLT.HEX.7/16-20X5.GR5.GREEN Price: $7.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 117 |
532420828 |
VALVE FUEL RESERVE Price: $27.99 |
