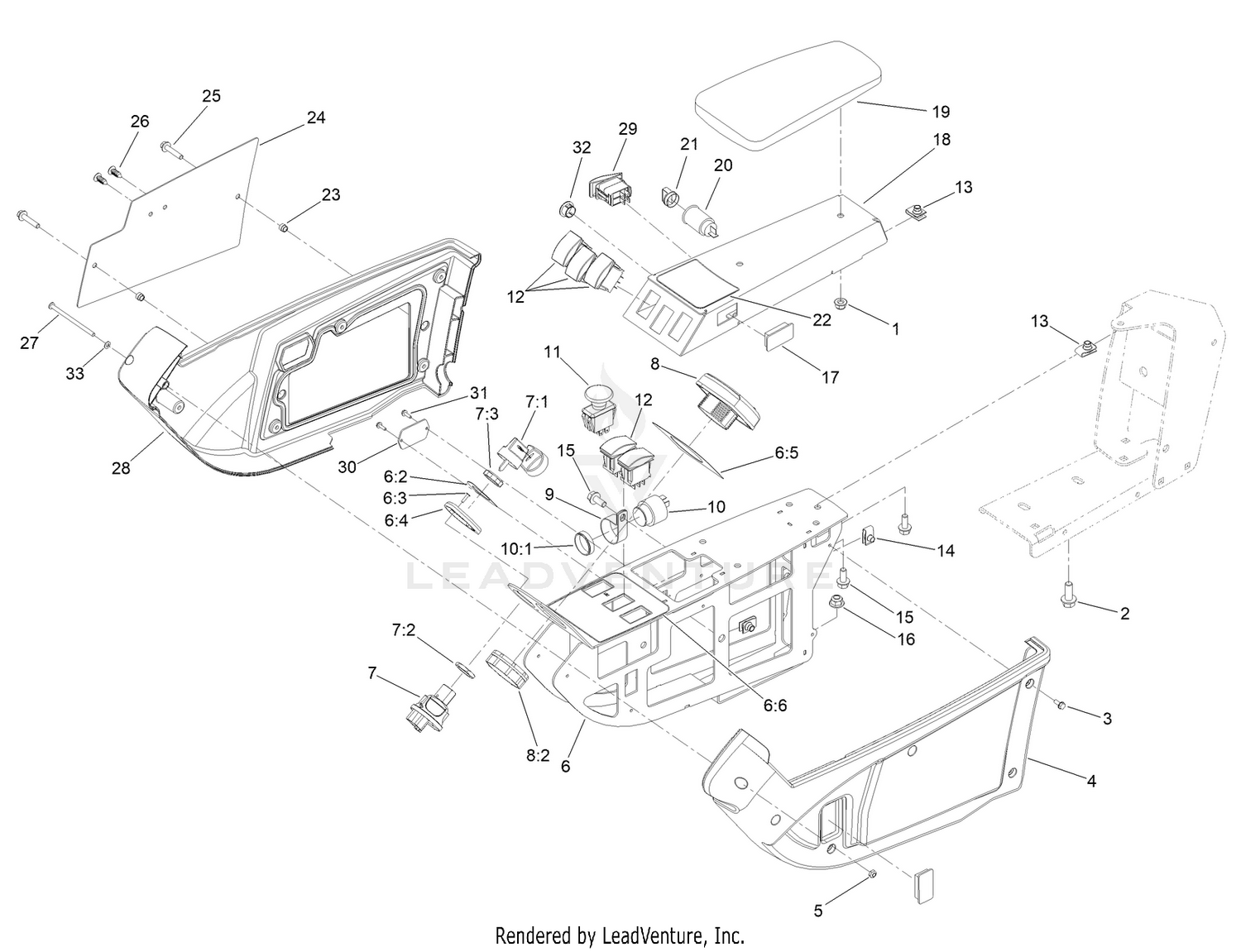

Armrest Control Panel Assembly
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 2 | 3234-42 | SCREW-HHF Price: $1.10 |
| 3 | 32144-112 | SCREW-HWH Price: $0.99 |
| 4 | 108-7604 | COVER-LH Price: $55.56 |
| 5 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 6 | 120-4155 | PANEL ASM Price: $321.47 |
| 7 | 121-5159 | IGNITION SWITCH ASM Price: $84.21 |
| 8 | 161-1700 | DISPLAY-LCD Price: $584.72 |
| 9 | 2412-74 | R-CLAMP Price: $2.37 |
| 10 | 80-9330 | AUDIO ALARM ASM Price: $137.61 |
| 11 | 93-9999 | SWITCH-PTO Price: $42.99 |
| 12 | 100-1535 | SWITCH Price: $84.91 |
| 13 | 94-2413 | NUT-U Price: $1.79 |
| 14 | 107069 | CLIP Price: $1.79 |
| 15 | 3234-5 | SCREW-HHF Price: $0.42 |
| 16 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 17 | 99-7420 | PLUG-HOLE Price: $7.64 |
| 18 | 136-4389-03 | PANEL-CONTROL Price: $98.31 |
| 19 | 108-7602 | REST-ARM Price: $158.43 |
| 20 | 99-7411 | POINT-POWER Price: $30.69 |
| 21 | 99-7416 | CAP Price: $6.64 |
| 22 | 127-3700 | DECAL-LIFT Price: $15.04 |
| 23 | 110-0542 | SPACER-FLANGE Price: $4.94 |
| 24 | 115-8849-03 | PLATE-COVER Price: $23.24 |
| 25 | 3234-21 | SCREW-HHF Price: $2.19 |
| 26 | 114-4899 | PLUG-PLASTIC Price: $0.39 |
| 27 | 161-8374 | SCREW-HSH Price: $2.90 |
| 28 | 108-7605 | COVER-RH Price: $55.56 |
| 29 | 114-3329 | SWITCH-ROCKER Price: $206.34 |
| 30 | 121-1630 | PLATE-COVER Price: $5.29 |
| 31 | 32144-18 | SCREW-HWH Price: $1.80 |
| 32 | 94-5627 | PLUG Price: $1.22 |
