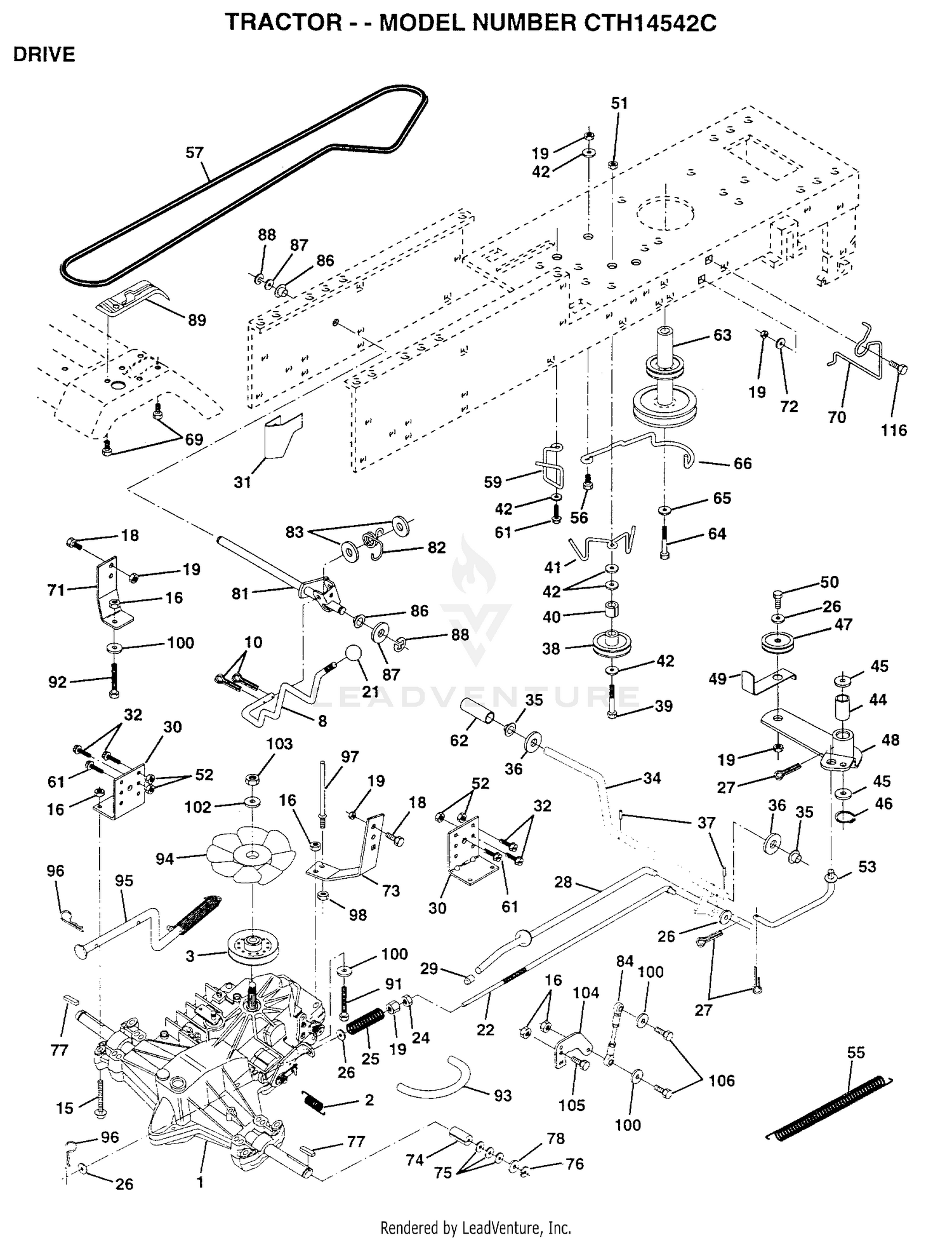

| Ref | Part Number | Description |
|---|
| 1 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 1 |
150071 |
TRANSAXLE.3100650 Price: Call Us |
| 2 |
142431 |
SPRING RET BRAKE Price: Call Us |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 3 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 3 |
143995 |
PULLEY.TRANSAXLE Price: Call Us |
| 4 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
322-1 |
SCREW-HH Price: $0.22 |
| 8 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 8 |
141003 |
ROD SHIFT FEND LT Price: Call Us |
| 9 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 10 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 11 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
105-3822 |
HYD CYLINDER ASM This part replaces 99-8159. Price: $533.45 |
| 13 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 14 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 15 |
5-1226 |
WASHER Price: $3.90 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 16 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 16 |
73800500 |
NUT Price: Call Us |
| 17 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 18 |
136-8483 |
FRAME-PULL, RH This part replaces 104-2055. Price: $382.66 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 21 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 21 |
140845 |
KNOB DLX BLK/BLK Price: Call Us |
| 22 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 22 |
145627 |
ROD.BRAKE.HYDRO. Price: Call Us |
| 23 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 24 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 25 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 26 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 28 |
92-9767 |
HOSE Price: $69.61 |
| 29 |
105-3828 |
SPACER Price: $5.10 |
| 29 |
7733J |
SUB= 71673 Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 32 |
74760512 |
BOLT Price: Call Us |
| 34 |
151128 |
SHAFT FOOT PEDAL Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
153399 |
KEEPER BELT Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 45 |
110812X |
WASHER LT Price: Call Us |
| 46 |
12000039 |
KLIP RING Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
123789X |
ARM IDLER Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
153400 |
SUB= 129921 Price: Call Us |
| 69 |
142432 |
SCREW HEXWSH H-L Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 71 |
140158 |
STRAP TORQ LH HYD Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 73 |
140157 |
STRAP TORQ RH HYD Price: Call Us |
| 74 |
121199X |
SPACER SPLIT Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 81 |
140154 |
SUB= 156046 Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 84 |
140548 |
ROD.TIE.BALL.4.75 Price: Call Us |
| 86 |
71208 |
BUSHING Price: Call Us |
| 87 |
19212016 |
WASHER D Price: Call Us |
| 88 |
12000008 |
KLIP RING Price: Call Us |
| 89 |
151147 |
SUB= 164893 Price: Call Us |
| 91 |
74780536 |
NLA Price: Call Us |
| 92 |
74780524 |
HEX BOLT Price: Call Us |
| 95 |
144643 |
SUB= 918144643 Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 97 |
140469 |
BOLT KEEPER RH Price: Call Us |
| 98 |
73510600 |
NUT Price: Call Us |
| 100 |
19111216 |
WASHER M Price: Call Us |
| 102 |
141322 |
WASHER BELLEVILLE Price: Call Us |
| 103 |
73940800 |
SUB= 73360800 Price: Call Us |
| 104 |
140156 |
ARM CONTROL HYDRO Price: Call Us |
| 105 |
71070516 |
SCREW CAP 5/16-18 Price: Call Us |
| 106 |
74780520 |
BOLT Price: Call Us |
