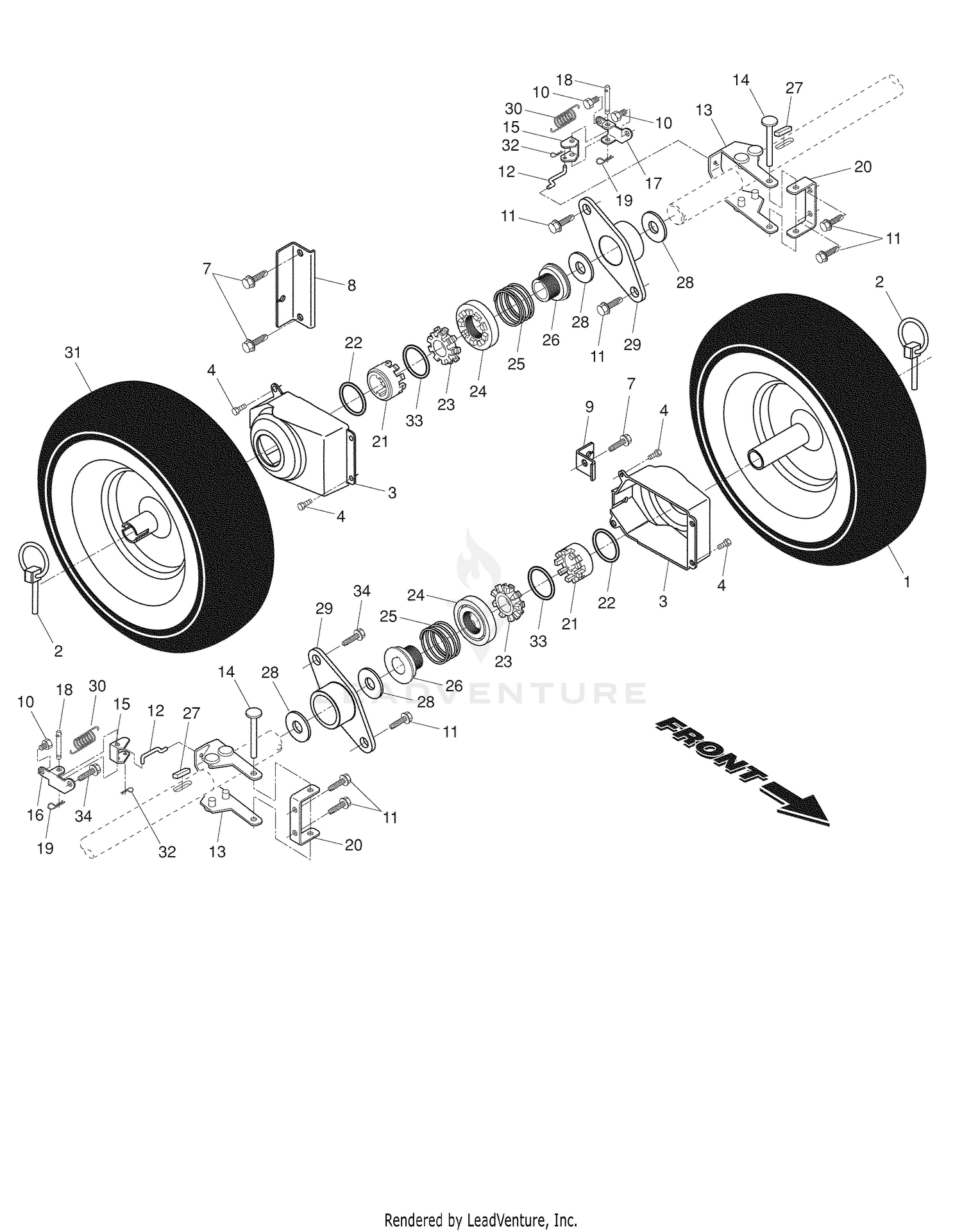

| Ref | Part Number | Description |
|---|
| 1 |
23-7270 |
NUT-LUG Price: $10.37 |
| 1 |
532422070 |
WHEEL.ASM.LT.16X6.5. This part replaces 532199521. Price: $149.99 |
| 2 |
42-6080 |
SHIM-AXLE Price: $29.45 |
| 2 |
532155443 |
PIN KLIK, 1/4 Price: $3.99 |
| 3 |
532405161 |
COVER, POWER STEERING Price: $8.99 |
| 3 |
66-6480 |
WASHER Price: $1.29 |
| 4 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 4 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 5 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 6 |
99-6981-03 |
DISCONTINUED Price: Call Us |
| 7 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 7 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 8 |
532185603 |
BRACKET, STEERING CABLE RH This part replaces 532187859. Price: $6.99 |
| 8 |
75-6850 |
DISCONTINUED Price: Call Us |
| 9 |
27-3710 |
DIPSTICK Price: $24.62 |
| 9 |
532415263 |
BRACKET.STEER.CABLE.LH.BZP Price: $3.99 |
| 10 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 10 |
85-4330 |
COVER-GEAR Price: $9.42 |
| 11 |
237-181 |
O-RING Price: $2.48 |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 12 |
3218-1 |
NUT-JAM Price: $1.29 |
| 12 |
532405077 |
LINK.STEER.YOKE Price: $7.99 |
| 13 |
532445266 |
YOKE.WELDMENT.STEER.BLACK This part replaces 532199519. Price: $17.99 |
| 13 |
85-4350 |
SENSOR-GEARTOOTH Price: $310.23 |
| 14 |
532182015 |
PIN, STEERING LEVER Price: $2.99 |
| 15 |
32108-9 |
SCREW-FH Price: $2.55 |
| 15 |
532194944 |
BELLCRANK.STEER.YZP This part replaces 532199518. Price: $3.99 |
| 16 |
532194939 |
BRACKET.STEER.PIVOT.LH.YZ This part replaces 532199512. Price: $4.99 |
| 16 |
76-8730 |
DECAL-TORQUE, WHEEL Price: $7.93 |
| 17 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
532194943 |
BRACKET.STEER.PIVOT.RH This part replaces 532199511. Price: $3.99 |
| 18 |
321-2 |
SCREW-HH Price: $2.79 |
| 18 |
532181847 |
PIN, STEERING BELLCRANK Price: $4.99 |
| 19 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 19 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 20 |
532184197 |
BRACKET.STEER.PNT.BLACK Price: $4.99 |
| 20 |
85-4340 |
PLATE-MOUNTING, SENSOR Price: $52.00 |
| 21 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 21 |
581645001 |
DRIVER.WHEEL This part replaces 532192126. Price: $27.99 |
| 22 |
532182466 |
RING, WIRE RETAINER Price: $3.99 |
| 22 |
92-5797 |
GASKET-AXLE Price: $8.68 |
| 23 |
532187622 |
LOBE WHEEL Price: $32.99 |
| 24 |
324-7 |
SCREW-HH Price: $1.79 |
| 24 |
581644901 |
SLIDE.CLUTCH.SNOW This part replaces 532194941. Price: $34.99 |
| 25 |
532179139 |
SPRING, CLUTCH SLIDE Price: $4.99 |
| 26 |
581645101 |
LOBE.AXLE This part replaces 532194940. Price: $8.99 |
| 27 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 28 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 29 |
532179830 |
BEARING, AXLE Price: $17.99 |
| 30 |
532193885 |
SPRING LATCH Price: $3.99 |
| 31 |
532196753 |
RP.WHEEL.ASM.RT.16X6.5.GRY.XTR This part replaces 532199520. Price: $159.99 |
| 32 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 33 |
812000045 |
RING Price: $5.99 |
