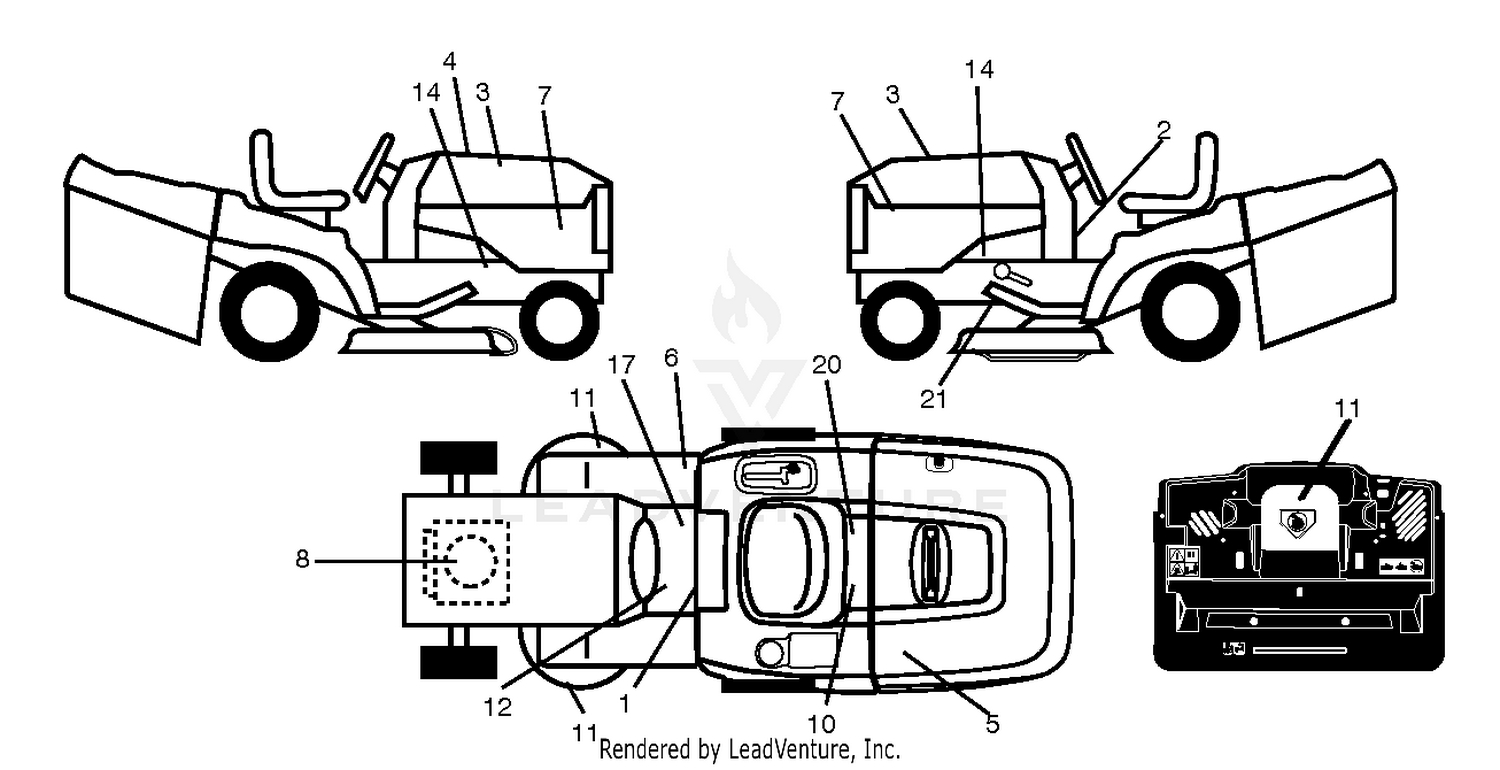

DECALS
Parts (79)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-7055 | SHAFT ASM Price: $731.67 |
| 1 | 581578101 | DECAL.READ.OWN.MAN.SYMBOL.LT This part replaces 532400389. Price: $2.99 |
| 2 | 125-7056 | SHAFT Price: $135.01 |
| 2 | 532440248 | Price: Call Us |
| 3 | 581627301 | DECAL.BADGE.170MM.TEXTLOGO. Price: $11.99 |
| 4 | 125-7057 | SUPPORT Price: $44.67 |
| 4 | 532437962 | Price: Call Us |
| 5 | 125-7058 | SUPPORT Price: $47.42 |
| 6 | 125-7059 | WASHER Price: $4.09 |
| 6 | 532180432 | Decal, Fender 100 DB/CE Price: Call Us |
| 7 | 125-7061 | ARM-ROCKER Price: $51.30 |
| 7 | 532439588 | Price: Call Us |
| 8 | 125-7013 | SCREW-ADJUST, VALVE Price: $23.90 |
| 8 | 581579701 | DECAL.ENGINE.WARNING This part replaces 532196841. Price: $2.99 |
| 10 | 125-7014 | NUT Price: $5.25 |
| 10 | 532145005 | DECAL BTRY SYMBOLS Price: $3.99 |
| 11 | 125-7062 | ARM-ROCKER Price: $51.30 |
| 11 | 581579101 | DECAL.CUTFINGER.CE.02 This part replaces 532182166. Price: $3.99 |
| 12 | 125-7013 | SCREW-ADJUST, VALVE Price: $23.90 |
| 12 | 581579301 | DECAL.WARN.DFLCTR/CTFNGR.SRD. This part replaces 532159737. Price: $2.99 |
| 14 | 125-7014 | NUT Price: $5.25 |
| 14 | 532159736 | DECAL Price: $5.99 |
| 15 | 125-7593 | RETAINER Price: $40.49 |
| 16 | 125-7228 | STUD Price: $3.46 |
| 17 | 125-6963 | SEAT-BRIDGE, VALVE Price: $9.72 |
| 17 | 581578001 | DECAL.PARKING.BRAKE.SADDLE.LT This part replaces 532140837. Price: $2.99 |
| 18 | 125-7089 | CYLINDER HEAD ASM Price: $2,906.32 |
| 20 | 581724801 | DECAL.BYPASS.FENDER.CRD/LT/YT This part replaces 532166960. Price: $3.99 |
| 21 | 532166286 | DECAL Price: $2.99 |
| 24 | 125-7196 | PLUG Price: $2.57 |
| 25 | 125-7240 | PLUG Price: $4.06 |
| 26 | 125-7051 | VALVE Price: $28.18 |
| 27 | 125-7052 | VALVE Price: $40.56 |
| 28 | 125-7053 | SPRING Price: $15.94 |
| 29 | 125-7054 | RETAINER Price: $21.03 |
| 30 | 125-6914 | COTTER Price: $16.79 |
| 31 | 125-6915 | SEAL-STEM, VALVE Price: $6.77 |
| 32 | 125-6916 | SEAL-STEM, VALVE Price: $6.77 |
| 33 | 125-7104 | BRIDGE ASM Price: $70.21 |
| 35 | 125-7014 | NUT Price: $5.25 |
| 36 | 125-6965 | ADJUSTER Price: $23.16 |
| 37 | 125-7063 | GUIDE Price: $19.75 |
| 38 | 125-6921 | PROTECTOR Price: $15.17 |
| 39 | 125-6911 | SEAT-VALVE Price: $4.19 |
| 40 | 125-7064 | RETAINER Price: $98.33 |
| 41 | 125-7119 | BOLT Price: $11.20 |
| 42 | 125-7184 | PIN-SPRING Price: $3.48 |
| 43 | 93-0418 | O-RING Price: $7.29 |
| 44 | 125-7215 | BOLT Price: $3.48 |
| 45 | 125-7220 | BOLT Price: $4.99 |
| 46 | 125-6972 | COVER-FILLER Price: $10.14 |
| 47 | 125-7099 | BONNET ASM Price: $404.98 |
| 48 | 125-7050 | PLATE Price: $110.72 |
| 49 | 125-6920 | BAFFLE Price: $9.72 |
| 50 | 125-7012 | BAFFLE Price: $5.18 |
| 51 | 125-7118 | BAFFLE-BREATHER Price: $13.78 |
| 52 | 125-6959 | DIAPHRAGM Price: $52.40 |
| 53 | 125-6960 | PLATE Price: $16.14 |
| 54 | 125-6961 | PLATE-BREATHER Price: $28.15 |
| 55 | 125-6962 | SPRING-DIAPHRAGM Price: $18.13 |
| 57 | 125-7060 | GASKET Price: $69.94 |
| 58 | 125-6982 | PIPE Price: $6.77 |
| 59 | 125-6994 | SPRING Price: $3.26 |
| 60 | 125-6913 | PLUG Price: $8.22 |
| 61 | 125-7186 | SCREW Price: $2.74 |
| 62 | 125-7186 | SCREW Price: $2.74 |
| 63 | 125-7186 | SCREW Price: $2.74 |
| 64 | 125-6974 | KNOB Price: $6.62 |
| 65 | 93-0418 | O-RING Price: $7.29 |
| 66 | 125-7197 | O-RING Price: $2.55 |
| 67 | 125-7086 | JOINT Price: $11.20 |
| 68 | 125-7087 | HOSE ASM Price: $44.23 |
| 69 | 125-7088 | HOSE Price: $42.54 |
| 70 | 125-7040 | CLIP-HOSE Price: $8.13 |
| 71 | 125-7090 | HOSE Price: $49.58 |
| 72 | 125-7190 | CLAMP-HOSE Price: $12.29 |
| 73 | 125-7046 | LIFTER Price: $7.85 |
| 74 | 125-7111 | LIFTER Price: $9.32 |
| 75 | 125-7214 | BOLT Price: $3.77 |
