| Ref | Part Number | Description |
|---|
| 1 |
110-4817 |
KIT - AXLE HOUSING This part replaces 95-7538. Price: $657.17 |
| 1 |
17720408 |
SCREW Price: Call Us |
| 2 |
115-0622 |
SEAL - OIL This part replaces 100-2557. Price: $10.23 |
| 2 |
132521 |

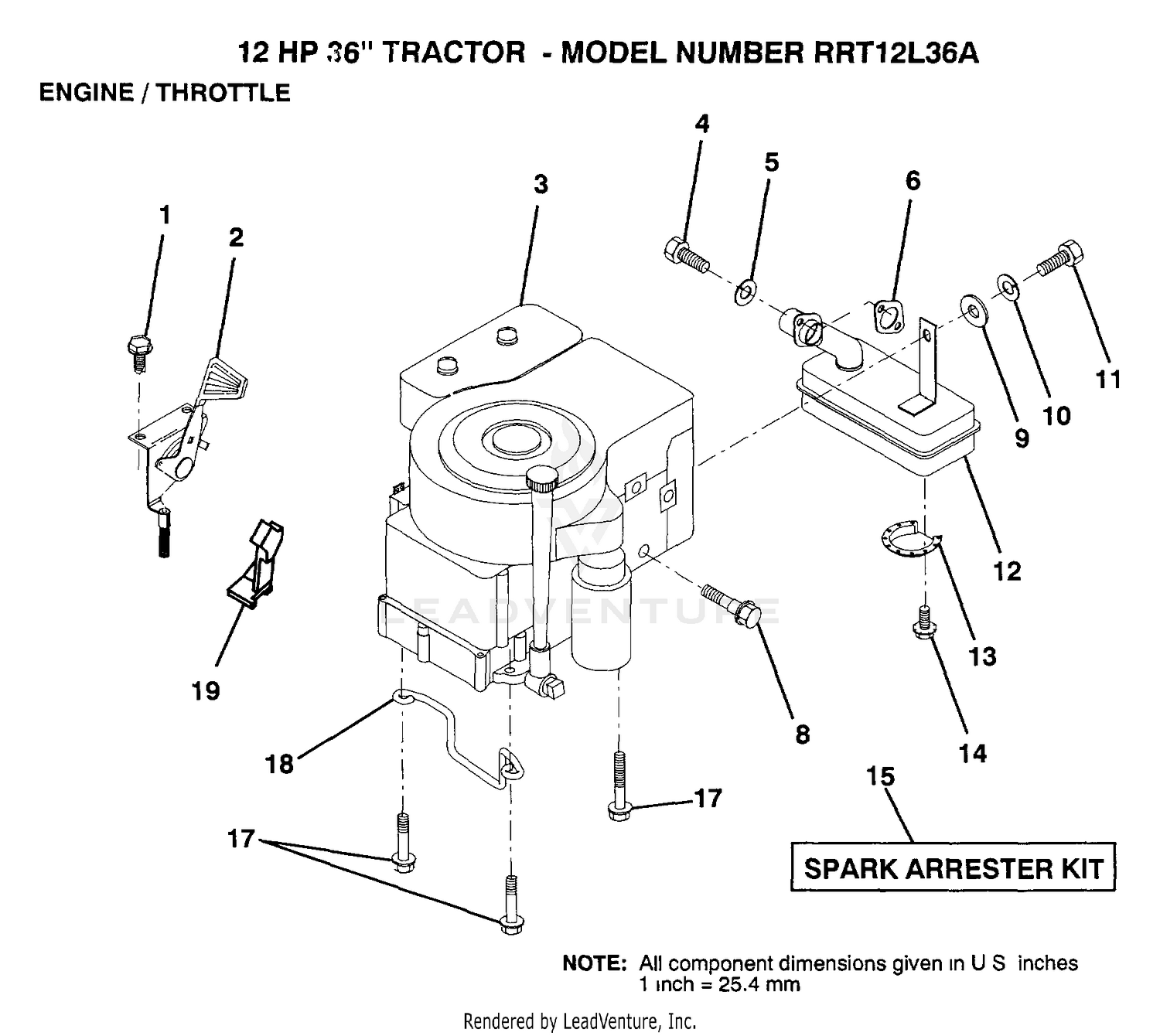

THROTTLE CONTROL Price: Call Us |
| 3 |
104-2378 |
BUSHING Price: $40.73 |
| 3 |
132505 |
ENGINE Price: Call Us |
| 4 |
106-1069 |
O-RING This part replaces 104-2372. Price: $5.20 |
| 4 |
123528X |
SCREW HEX HD CAP Price: Call Us |
| 5 |
10040500 |
LOCKWASHER Price: Call Us |
| 5 |
104-2373 |
KNUCKLE Price: $58.69 |
| 6 |
104-2374 |
BOLT Price: $6.33 |
| 6 |
2949R |
SUB= 272293 Price: Call Us |
| 7 |
100-3768 |
LH STEERING ARM ASM Price: $207.28 |
| 8 |
100-3766 |
RH STEERING ARM ASM Price: $207.28 |
| 8 |
121094X |
BOLT T Price: Call Us |
| 9 |
19101216 |
WASHER Price: Call Us |
| 10 |
10040400 |
LOCKWASHER Price: Call Us |
| 10 |
95-7547 |
SHIM 0.1 Price: $2.53 |
| 10 |
95-7548 |
SHIM 0.2 Price: $3.52 |
| 10 |
95-7549 |
SHIM 0.3 Price: $3.82 |
| 11 |
74780420 |
BOLT Price: Call Us |
| 11 |
99-7597 |
PIN-DOWEL Price: $3.74 |
| 12 |
104-2375 |
BOLT Price: $18.54 |
| 12 |
134554 |
MUFFLER Price: Call Us |
| 13 |
101326L |
DEFLECTOR.222573 Price: Call Us |
| 13 |
99-7599 |
BOLT Price: $3.17 |
| 14 |
17030808 |
SUB= 17030814 Price: Call Us |
| 14 |
99-7525 |
STUD Price: $7.03 |
| 15 |
121851X |
SUB= 532137180 Price: Call Us |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 17 |
17490624 |
SCREW LT Price: Call Us |
| 18 |
106-1141 |
STEERING TIE ROD ASM This part replaces 100-3762. Price: $642.02 |
