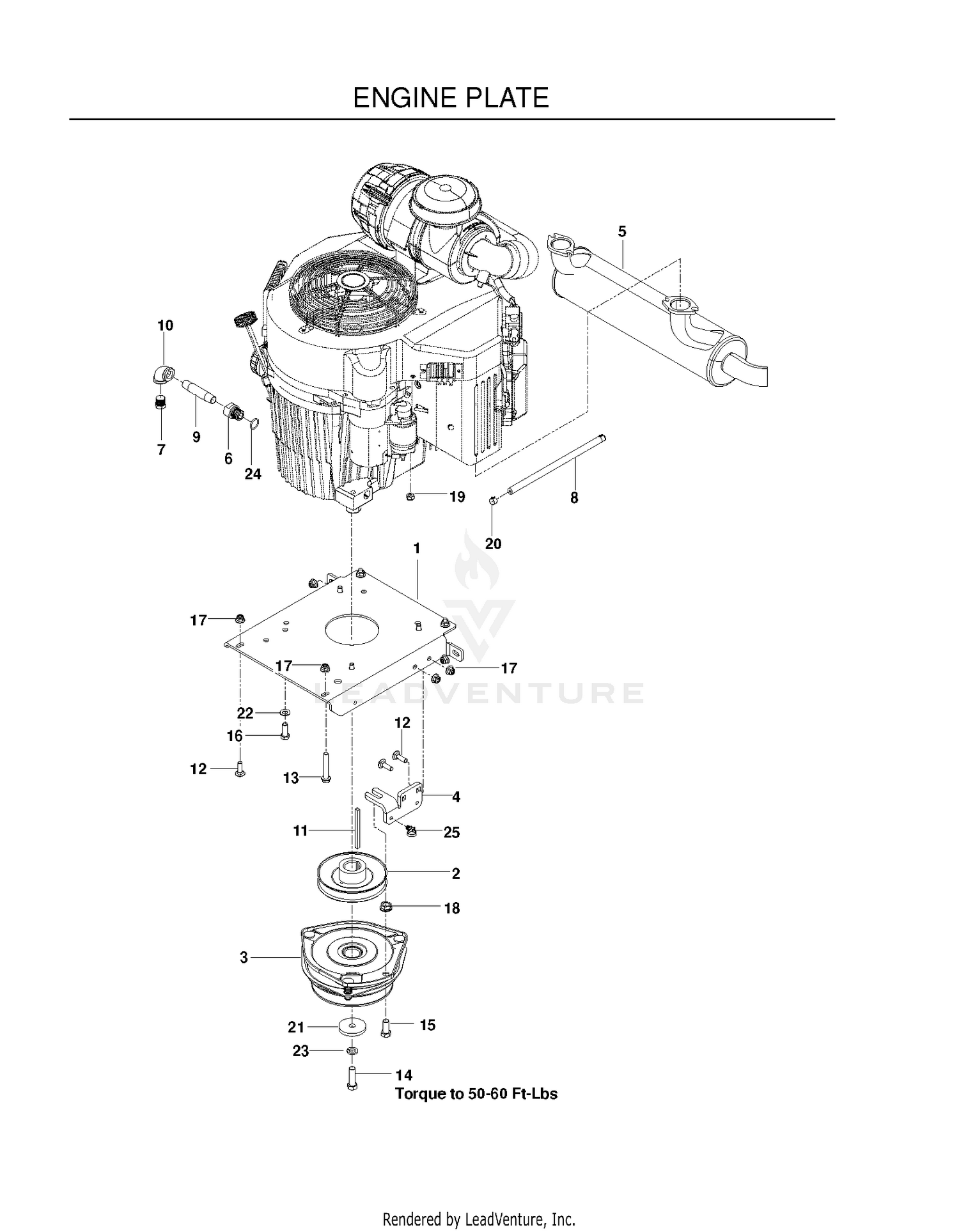

| Ref | Part Number | Description |
|---|
| 1 |
104-7201 |
NUT-HF Price: $0.69 |
| 1 |
510004602 |
PLATE.ENGINE.BLACK Price: $99.99 |
| 2 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 2 |
510019801 |
PULLEY, ENGINE Price: $49.99 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
525749501 |
CLUTCH, GT3.5 Price: $599.99 |
| 4 |
115-5103 |
SCREW-HHF Price: $0.34 |
| 5 |
117-2382 |
PLUG-PLASTIC Price: $0.69 |
| 5 |
525750301 |
MUFFLER, 29HP KAW FX751V-850V Price: $329.99 |
| 6 |
125-1122 |
SCREW Price: $2.24 |
| 6 |
539119680 |
ADAPTER, OIL DRAIN Price: $17.99 |
| 7 |
136-5166 |
FAN SHROUD ASM Price: $306.06 |
| 7 |
522837001 |
PLUG, DRAIN 3/8 NPTF Price: $2.99 |
| 8 |
136-9862 |
SEAL-FOAM Price: $12.65 |
| 8 |
539932956 |
GAS LINE 10" Price: $6.99 |
| 9 |
136-9865 |
SEAL-FOAM Price: $11.32 |
| 9 |
539118911 |
PIPE NIPPLE 3/8 X 3 Price: $5.99 |
| 10 |
138-2025 |
SEAL-BULB Price: $23.63 |
| 11 |
138-2026 |
SEAL-BULB Price: $44.45 |
| 11 |
525749901 |
KEY, 1/4 SQ X 3.5 Price: $3.99 |
| 12 |
138-2027 |
SEAL-BULB Price: $18.22 |
| 12 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 13 |
138-2028 |
SEAL-BULB Price: $5.15 |
| 13 |
574233802 |
Hardware This part replaces 574233801. Price: $2.99 |
| 14 |
138-2030-03 |
SCREEN Price: $792.55 |
| 14 |
539100141 |
HCS 7/16F X 1 1/2 Price: $7.99 |
| 15 |
138-4175-01 |
MOUNT-COOLING This part replaces 138-2042-01. Price: $780.84 |
| 15 |
596238601 |
Bolts This part replaces 539100143. Price: $2.99 |
| 16 |
237-124 |
GROMMET Price: $2.30 |
| 16 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 17 |
322-49 |
BOLT-HH Price: $2.57 |
| 17 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 18 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 18 |
596577901 |
Nuts This part replaces 539102582. Price: $2.99 |
| 19 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 19 |
539103153 |
NUT M8-1.25 TOP NYL GR10 ZD Price: $2.99 |
| 20 |
3256-55 |
WASHER-FLAT Price: $3.69 |
| 20 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 21 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 21 |
539125626 |
BLADE WASHER Price: $6.99 |
| 22 |
107069 |
CLIP Price: $1.79 |
| 22 |
539102593 |
WASHER, 3/8 DISC SPRING SPEC Price: $2.99 |
| 23 |
107-8042 |
BUMPER-RUBBER Price: $1.30 |
| 23 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 24 |
539109618 |
O-RING Price: $3.99 |
| 25 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
