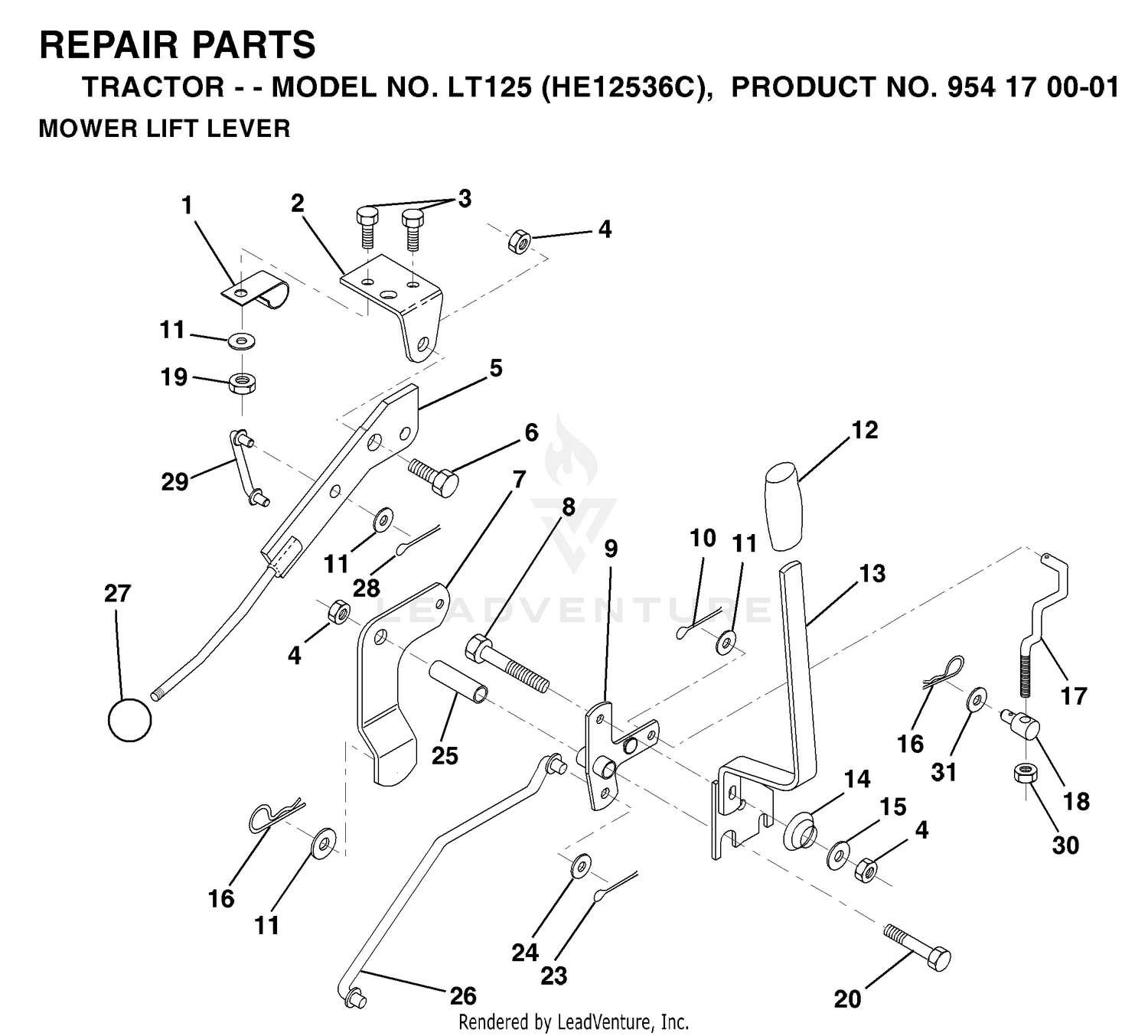

| Ref | Part Number | Description |
|---|
| 1 |
532126470 |
CLIP,INSULATOR Price: $3.99 |
| 2 |
532122018 |
BRKT CLUTCH Price: $2.38 |
| 3 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 4 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 5 |
532145187 |
CLUTCH LEVER Price: $5.69 |
| 5 |
95-8960-0P |
BRACKET-NEUTRAL This part replaces 95-8960-03. Price: $47.94 |
| 6 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 6 |
532106451 |
BOLT, SHOULDER LT Price: $2.99 |
| 7 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 7 |
532135371 |
ASSEMBLY MOWER CLUTCH ARM Price: $7.93 |
| 8 |
140-6168 |
NEUTRAL ARM ASM This part replaces 104-0422. Price: $115.71 |
| 8 |
874760636 |
BOLT Price: $4.99 |
| 9 |
532121930 |
BELLCRANK,LIFT Price: $11.99 |
| 10 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 10 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 11 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 11 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 12 |
532131861 |
HANDLE GRIP Price: $3.99 |
| 13 |
100-4817 |
SPACER-BEARING Price: $4.03 |
| 13 |
532139352 |
LIFT HANDLE ASSY Price: $15.88 |
| 14 |
532123496 |
SPRING COMPRESSIO Price: $2.99 |
| 14 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 15 |
596134901 |
GSPH This part replaces 819131212. Price: $2.99 |
| 16 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 16 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 17 |
532127359 |
LINK LIFT FRT Price: $19.99 |
| 18 |
532142028 |
TRUNNION.ADJUSTABLE.3/8-16 Price: $3.99 |
| 18 |
94-1369 |
SPRING-EXTENSION Price: $12.72 |
| 19 |
3210-6 |
SCREW-HH Price: $1.76 |
| 19 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 20 |
874760644 |
BOLT Price: $3.99 |
| 20 |
88-7200 |
WASHER-FLAT Price: $2.51 |
| 21 |
120-5566 |
HUB Price: $49.38 |
| 22 |
32128-44 |
NUT Price: $2.69 |
| 23 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 23 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 24 |
104-0464-03 |
BRACKET-SUPPORT, CABLE Price: $35.63 |
| 24 |
596040101 |
Washers This part replaces 819171612. Price: $2.99 |
| 25 |
251-259 |
BEARING-BALL Price: $13.67 |
| 25 |
532121933 |
TUBE SPACER Price: $4.28 |
| 26 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 26 |
532141470 |
LIFT ROD Price: $14.65 |
| 27 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 27 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 28 |
3274-104 |
SCREW-HSBH Price: $0.54 |
| 28 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 30 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 30 |
99-3556 |
HOSE Price: $12.50 |
| 31 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 31 |
99-3594-0P |
LEVER-PUMP This part replaces 99-3594-03. Price: $53.70 |
| 32 |
321-8 |
SCREW-HH Price: $0.34 |
| 33 |
2844 |
WASHER Price: $2.69 |
| 34 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 35 |
63-9750 |
MOUNT Price: $18.92 |
| 36 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 37 |
3256-22 |
WASHER-FLAT Price: $0.39 |
