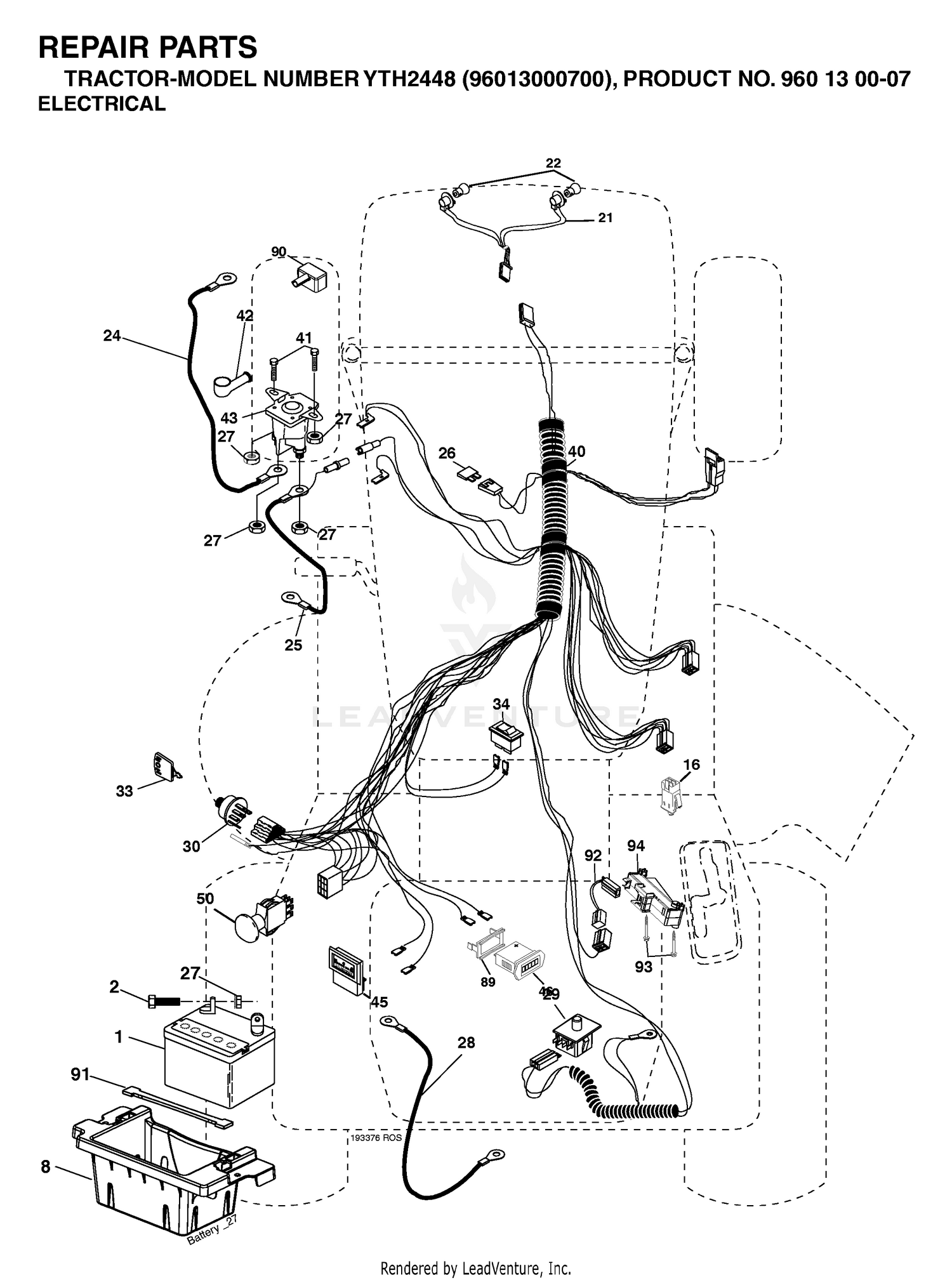

| Ref | Part Number | Description |
|---|
| 1 |
13-3740 |
DISCONTINUED Price: Call Us |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
79-2000 |
KEY-SQUARE This part replaces 13-6330. Price: $3.69 |
| 4 |
3247-3 |
SCREW-SET Price: $7.86 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 6 |
251-234 |
COLLAR-LOCKING Price: $17.04 |
| 7 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 8 |
13-6260 |
ADJUSTING SCREW ASM Price: $77.62 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
13-5520 |
SPACER-SCREW, ADJUSTING Price: $23.41 |
| 10 |
324-7 |
SCREW-HH Price: $1.79 |
| 11 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 12 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 13 |
3217-9 |
NUT-HH Price: $0.37 |
| 14 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 15 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 16 |
13-0100 |
PIVOT-LINK, RAKE LIFT Price: $61.98 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
3219-3 |
NUT-HEX Price: $0.34 |
| 18 |
283-35 |
DISCONTINUED Price: Call Us |
| 19 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 20 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 21 |
108-0930 |
LIFTING BELL CRANK-RH This part replaces 13-5490. Price: $337.37 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 24 |
56-6210 |
BEARING This part replaces 251-235. Price: $90.04 |
| 25 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 26 |
3217-8 |
NUT-HEX Price: $1.34 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
13-2680 |
BUSHING Price: $217.68 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
322-10 |
SCREW-HH Price: $0.70 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $17.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
56-6210 |
BEARING This part replaces 251-236. Price: $90.04 |
| 31 |
3245-36 |
SCREW-SET, HSH Price: $0.27 |
| 32 |
13-0600 |
IDLER ASM Price: $783.75 |
| 33 |
13-0510 |
DISCONTINUED Price: Call Us |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
3218-5 |
NUT-JAM Price: $0.27 |
| 35 |
3244-21 |
SCREW-SQH Price: $10.59 |
| 36 |
3290-379 |
TIE-CABLE This part replaces 3290-336. Price: $0.31 |
| 37 |
3-5967-01 |
BATTERY SUPPORT This part replaces 3-5967. Price: $117.43 |
| 38 |
106-5190 |
BATTERY This part replaces 13-6480. Price: $170.85 |
| 39 |
3-3175-01 |
BATTERY COVER This part replaces 3-3175. Price: $292.58 |
| 40 |
119-6807 |
DECAL-WARNING This part replaces 3-5582. Price: $7.37 |
| 40 |
532193376 |
HARNESS.IGN.ELECT.STL Price: $104.99 |
| 41 |
13-0480 |
SPRING Price: $30.51 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
13-3990-01 |
HANDLE-TRIP This part replaces 13-3990. Price: $189.07 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 44 |
108-0928 |
LIFTING BELL CRANK-LH This part replaces 13-5500. Price: $337.37 |
| 45 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 45 |
532122822 |
AMMETER Price: $17.99 |
| 46 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532169635. Price: $109.99 |
| 47 |
13-6790 |
BATTERY CABLE Price: $115.82 |
| 48 |
3-8135 |
EXTENSION SPRING Price: $29.29 |
| 49 |
323-7 |
SCREW-HH Price: $0.65 |
| 50 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 51 |
5-0678 |
BATTERY CLAMP ROD Price: $35.64 |
| 52 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 53 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 54 |
3217-5 |
NUT-HEX Price: $0.25 |
| 55 |
13-4490-01 |
DISCONTINUED This part replaces 13-4490. Price: Call Us |
| 55 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 56 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 57 |
13-3080 |
DISCONTINUED Price: Call Us |
| 58 |
13-0060 |
DISCONTINUED Price: Call Us |
| 59 |
327-6 |
SCREW-HH Price: $12.99 |
| 60 |
322-7 |
SCREW-HH Price: $0.89 |
| 61 |
13-2670-01 |
SHEAVE This part replaces 13-2670. Price: $1,182.76 |
| 62 |
13-0160 |
DISCONTINUED Price: Call Us |
| 63 |
56-6230 |
BEARING-ROLLER This part replaces 251-244. Price: $72.34 |
| 64 |
13-4340 |
DISCONTINUED Price: Call Us |
| 65 |
13-3710 |
WASHER Price: $3.05 |
| 89 |
532169639 |
BRACKET SNAP-IN HOURMETER Price: $4.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 92 |
532193465 |
HARNESS.PIGTAIL.REVERSE.SWITCH Price: $7.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $19.99 |
