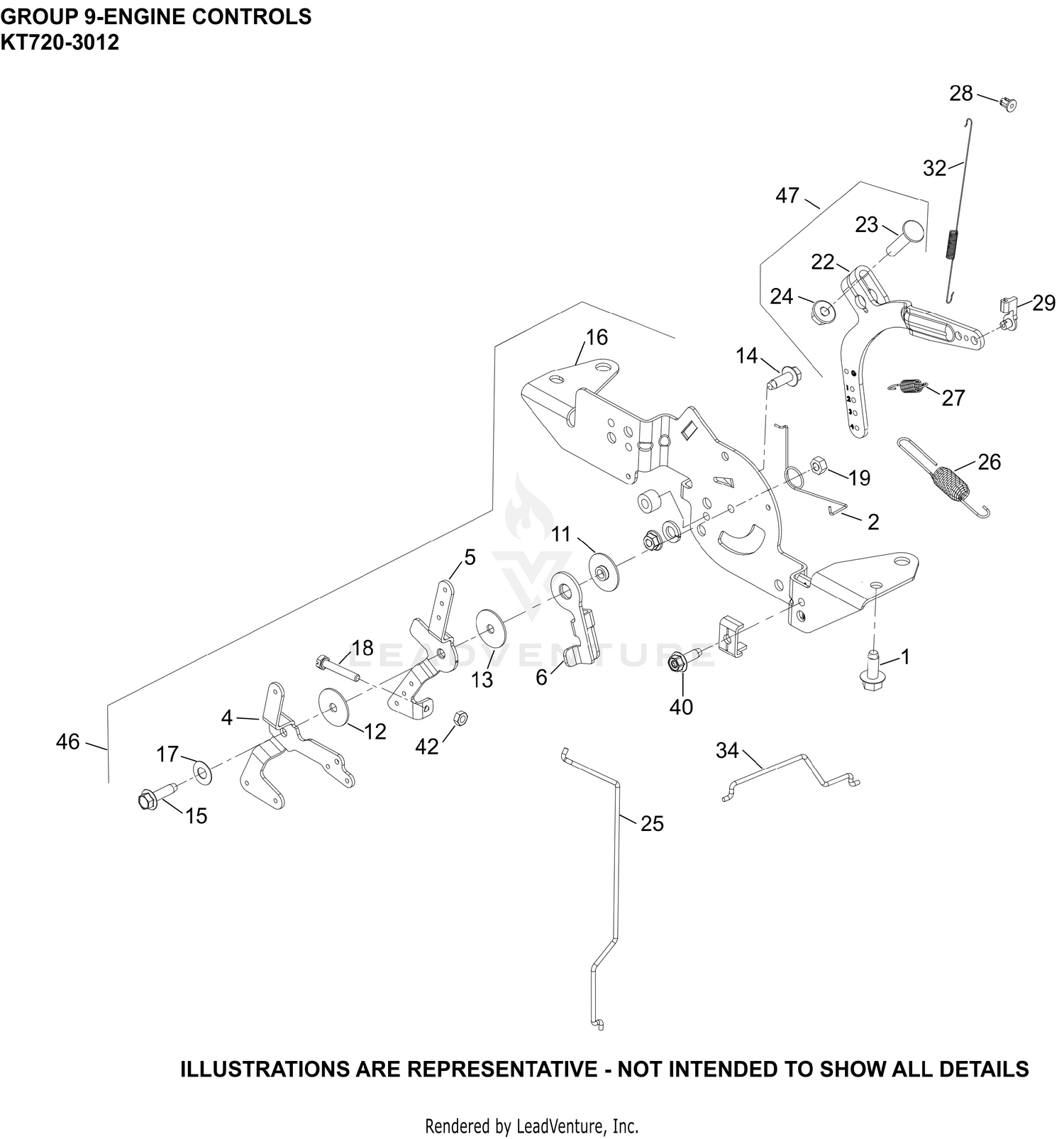

KT720-3012 Engine Controls
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | KH-25-086-397-S | SCREW-THREAD FORMI Price: $3.86 |
| 2 | KH-24-089-03 | SPRING-CHOKE RETRN Price: $2.72 |
| 4 | KH-24-090-05 | CHOKE LEVER Price: $4.87 |
| 5 | KH-24-090-13 | LEVER-THROTTLE CON Price: $8.79 |
| 6 | KH-24-090-47-S | LEVER-THROTTLE ACT Price: $2.45 |
| 11 | KH-24-112-27-S | SPACER-CONTROL ASSEMBLY Price: $3.66 |
| 12 | KH-24-468-01 | WASHER Price: $2.29 |
| 13 | KH-24-468-20-S | FLAT WASHER Price: $2.29 |
| 14 | KH-25-086-398-S | SCREW Price: $3.45 |
| 15 | KH-25-086-473-S | THREAD FORMING SCREW Price: $2.32 |
| 16 | KH-32-126-18-S | SPEED CONTROL BRACKET Price: $10.98 |
| 17 | KH-41-468-03 | WAVE WASHER Price: $2.99 |
| 18 | KH-M-403025-S | SCREW Price: $4.71 |
| 19 | KH-M-547050-S | HEX LOCK NUT Price: $2.29 |
| 22 | KH-24-090-69-S | LEVER-GOVERNOR ASSEMBLY Price: $8.64 |
| 23 | KH-24-211-03-S | BOLT-RD HD SQ NECK Price: $2.29 |
| 24 | KH-M-641060-S | HEX FLANGE NUT Price: $4.01 |
| 25 | KH-24-079-22-S | CHOKE LINKAGE Price: $6.48 |
| 26 | KH-24-089-25-S | GOVERNOR SPRING Price: $15.50 |
| 27 | KH-24-089-55-S | GOVERNOR SPRING Price: $2.29 |
| 28 | KH-25-158-08 | BUSHING Price: $5.51 |
| 29 | KH-25-158-11 | BUSHING-RETAINING Price: $5.66 |
| 32 | KH-32-089-11-S | LINKAGE SPRING Price: $2.06 |
| 34 | KH-24-079-04-S | THROTTLE LINKAGE Price: $3.19 |
| 40 | KH-25-086-398-S | Thread Forming Screw This part replaces KH-25-086-651-S. Price: $3.45 |
| 42 | KH-M-446030-S | HEX NUT Price: $2.29 |
| 46 | KH-32-536-08-S | SPEED CONTROL ASSEMBLY Price: $21.84 |
