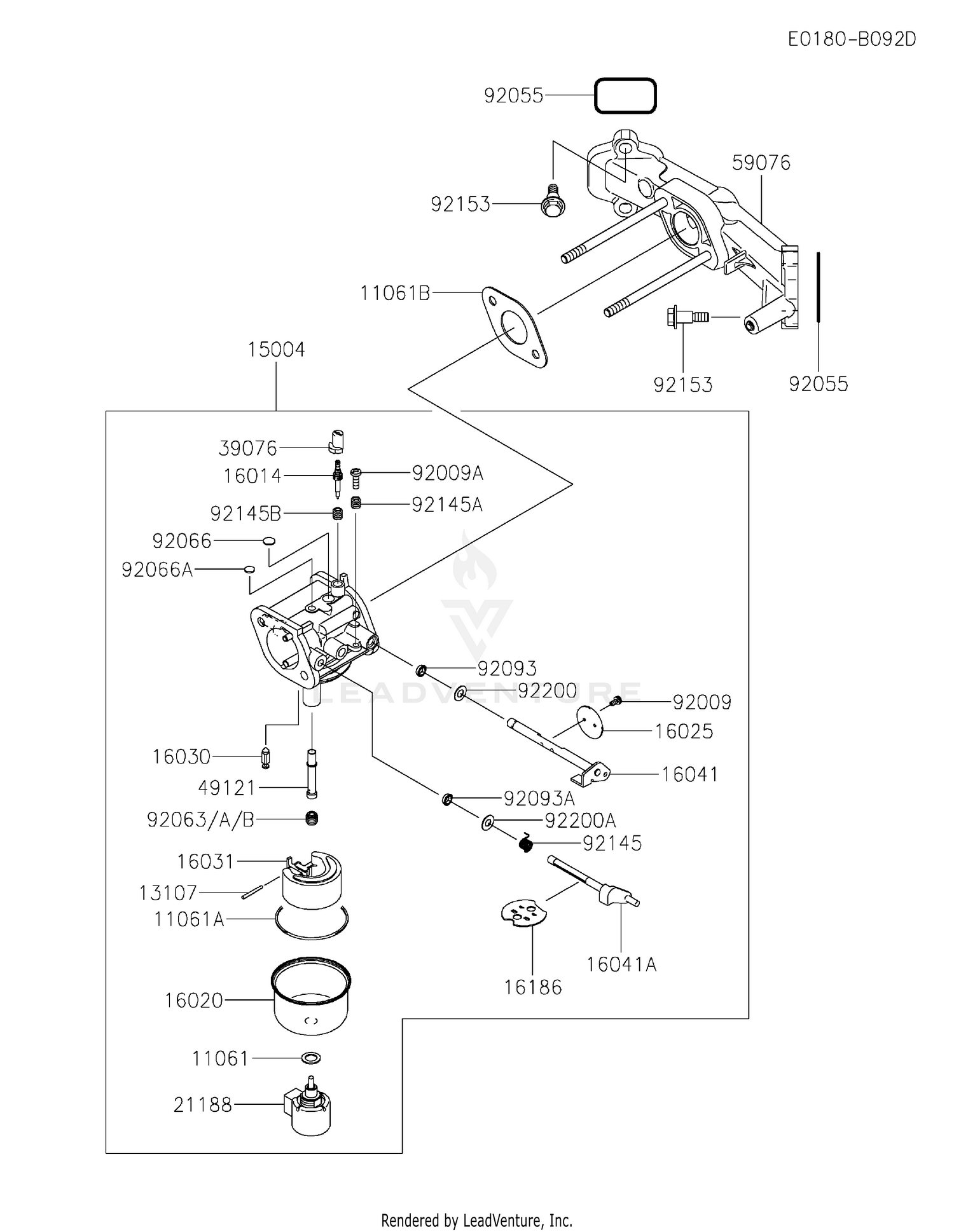

FR600V-GS06 CARBURETOR
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 11061 | KM-11061-1573 | SCREW GASKET Price: $2.98 |
| 11061A | KM-11061-7009 | GASKET-FLOAT CHAMBER Price: $2.63 |
| 11061B | KM-11061-7103 | CARBURETOR MOUNTING GASKET Price: $3.42 |
| 13107 | KM-13107-7018 | PIN-FLOAT Price: $3.96 |
| 15004 | KM-15004-0827 | CARBURETOR ASSEMBLY Price: $389.36 |
| 16014 | KM-16014-7011 | SCREW-PILOT AIR Price: $12.67 |
| 16020 | KM-16020-7003 | CHAMBER-FLOAT Price: $13.82 |
| 16025 | KM-16025-7006 | PLATE-THROTTLE SHA Price: $17.21 |
| 16030 | KM-16030-7003 | FLOAT NEEDLE VALVE Price: $19.56 |
| 16031 | KM-16031-7002 | FLOAT Price: $27.62 |
| 16041 | KM-16041-7018 | SHAFT-CARB THROTTL Price: $21.96 |
| 16041A | KM-16041-7049 | CHOKE SHAFT Price: $13.48 |
| 16186 | KM-16186-7001 | CHOKE SHAFT PLATE Price: $13.54 |
| 21188 | KM-21188-7002 | FUEL SOLENOID Price: $188.02 |
| 39076 | KM-39076-7001 | LIMITER Price: $7.39 |
| 49121 | KM-49121-7019 | MAIN NOZZLE Price: $32.68 |
| 59076 | KM-59076-0031 | INTAKE MANIFOLD Price: $57.01 |
| 92009 | KM-92009-2083 | SCREW Price: $2.84 |
| 92009A | KM-92009-2349 | SCREW-THROTTLE STO Price: $2.23 |
| 92055 | KM-92055-7026 | O-RING Price: $2.31 |
| 92063 | KM-92063-7046 | MAIN JET #100 Price: $11.63 |
| 92063A | KM-92063-7047 | MAIN JET #098 Price: $11.41 |
| 92063B | KM-92063-7156 | MAIN JET #102 Price: $11.07 |
| 92066 | KM-92066-2204 | PLUG Price: $4.17 |
| 92066A | KM-92066-2244 | PLUG Price: $1.80 |
| 92093 | KM-92093-0593 | SEAL-THROT/CHOK SH Price: $2.34 |
| 92093A | KM-92093-0594 | CHOKE SHAFT SEAL Price: $2.28 |
| 92145 | KM-92145-0931 | SPRING-CHOKE SHAFT Price: $1.69 |
| 92145A | KM-92145-1579 | SPRING Price: $2.77 |
| 92145B | KM-92145-7015 | SPRING-AIR SCREW Price: $2.27 |
| 92153 | KM-92154-2823 | BOLT Price: $2.09 |
| 92200 | KM-92200-0848 | WASHER-THROT/CHOK Price: $1.58 |
